Grundfos 98400082 - MTRE 5-3/3 A-WB-A-HUUV | Vertical | Multistage | Tank Mounted | Centrifugal

Save $2,173.28
GRUNDFOSSKU: 98400082

Price:
Sale price$2,450.72 Regular price$4,624.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

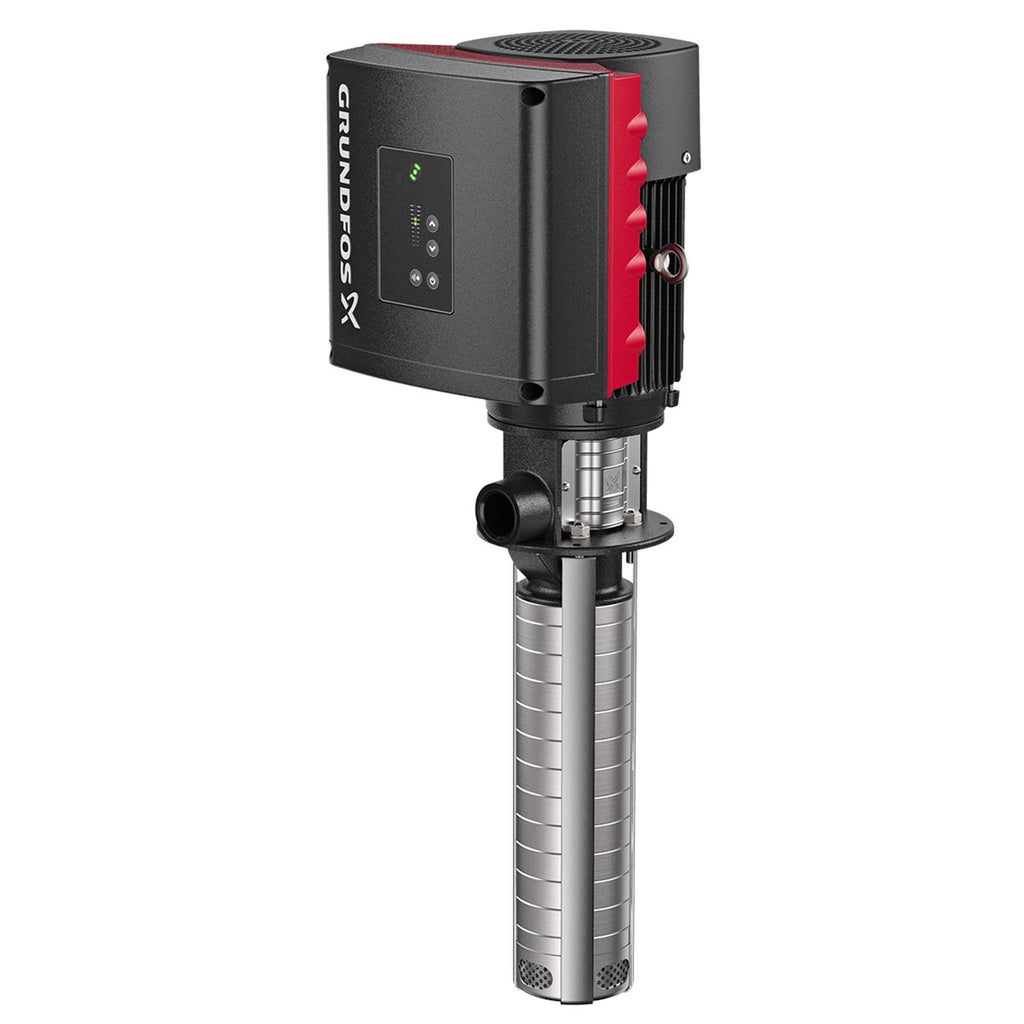

Grundfos 98400082 - MTRE 5-3/3 A-WB-A-HUUV

The Grundfos 98400082 - MTRE 5-3/3 A-WB-A-HUUV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this tank-mounted pump is engineered for efficiency and reliability, making it an ideal choice for those seeking robust pumping solutions.

With its advanced multistage design, the MTRE series ensures optimal performance in demanding environments. This pump is suitable for various applications, including water supply, pressure boosting, and industrial processes. Its vertical configuration allows for space-saving installation, while the durable construction guarantees longevity and minimal maintenance.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help you find the perfect solution.

EAN 5711494356171
Approvals CE
Approvals for motor CE
Built-in motor protection ELEC
Cable gland entry 4xM20 blind plug
Chambers 3
Code for shaft seal HUUV
Connect code WB
Connection 1 1/4 inch
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 34.2 kg
IE Efficiency class IE5
Immersion depth 196 mm
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -10 .. 90 °C
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 25 bar / 90 °C
Maximum ambient temperature 50 °C
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor 56C
Motor efficiency at full load 1 0.864
Motor standard NEMA
Motor type 80A
Net weight 19.2 kg
Number of reduced-diameter impellers 0
Power factor 1 0.73
Product family MTRE 5
Pump speed on which pump data are based 3484 rpm
Pump version A
Pumped liquid Emulsion
Rated current 1.65 A
Rated flow 115 l/min
Rated head 22.3 m
Rated power - P2 0.75 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 20 °C
Service factor 1.25
Size of outlet connection 1 1/4 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 80A
Type of connection NPT(F)
Version A

Motor Curves

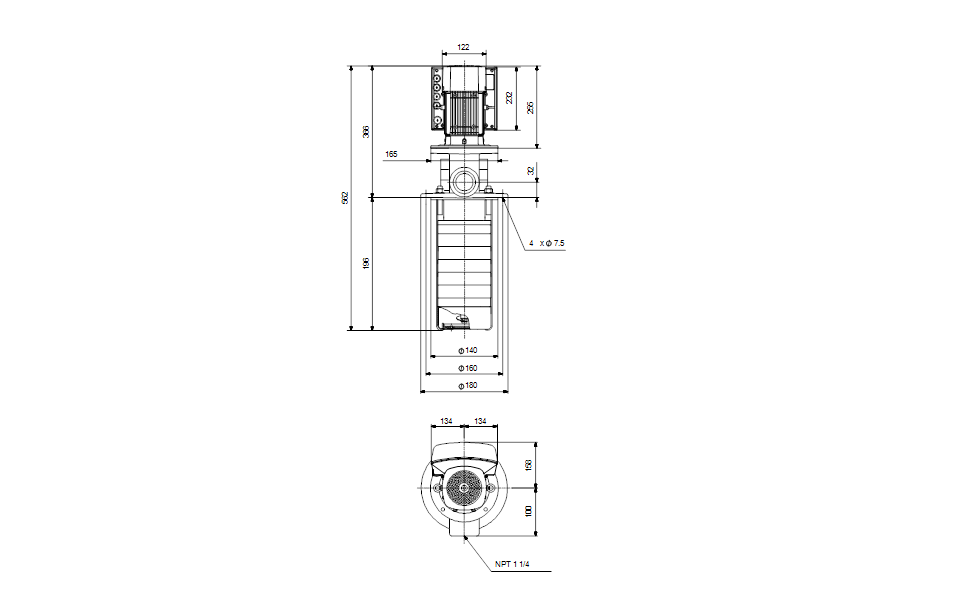

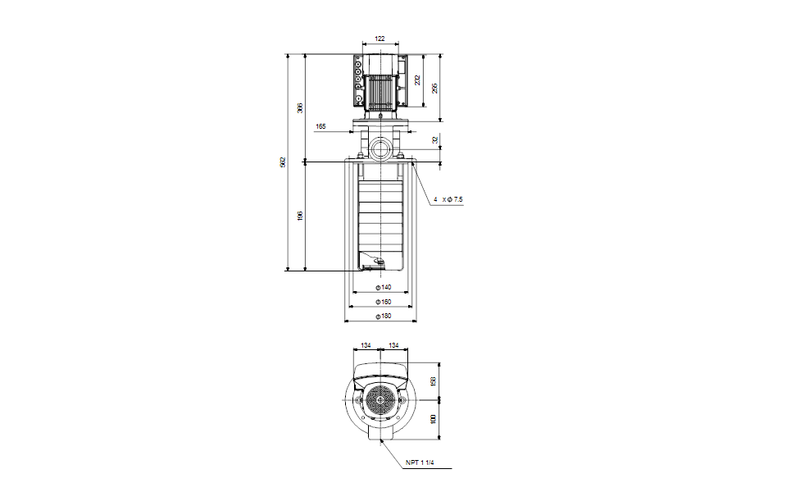

Dimensional Drawing

DWiring Diagram
