Grundfos 98472480 - MTRE 45-4/4-2 A-G-A-HUUV | Multistage | Immersible | SelfPriming | Centrifugal | Vertical Installation | Vertical

Save $11,648.01
GRUNDFOSSKU: 98472480

Price:
Sale price$13,134.99 Regular price$24,783.00
or Call for most up to date lead times. (781) 281-8905

Description

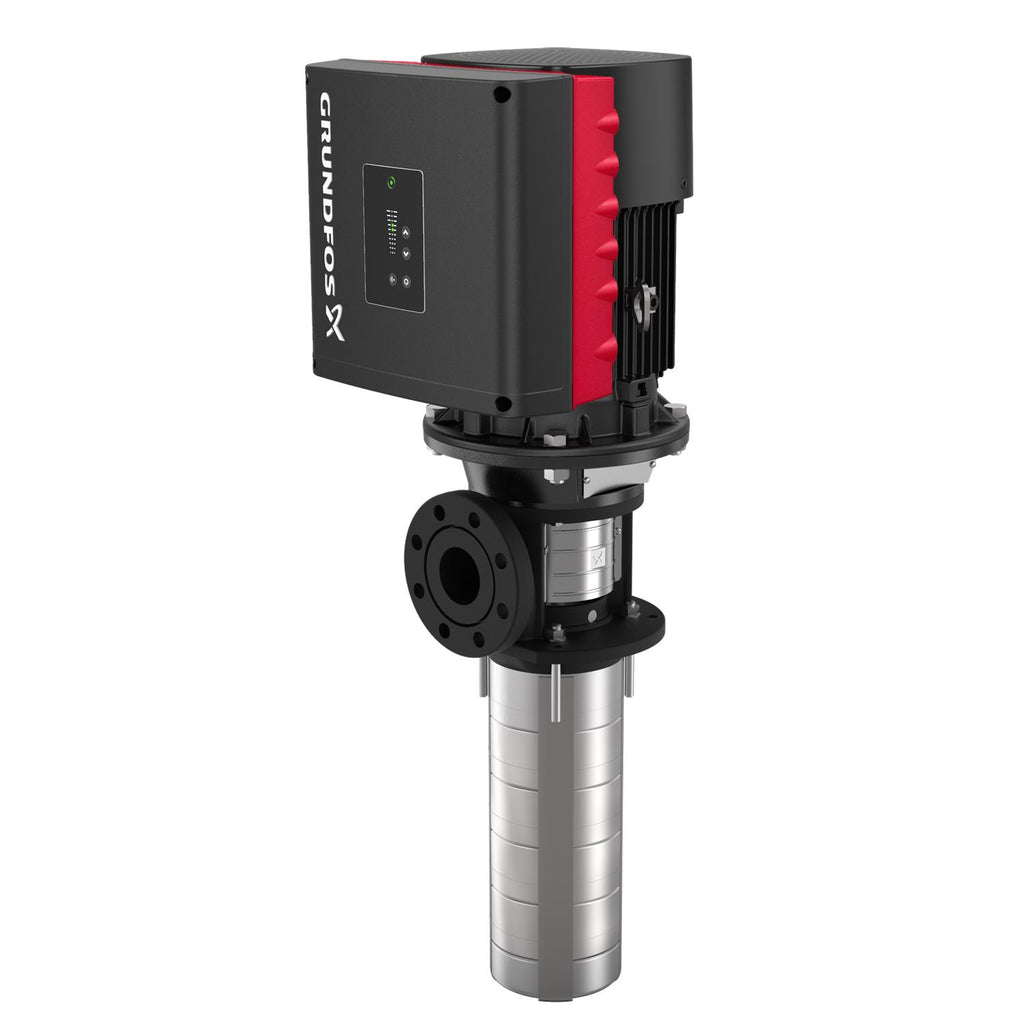

MTRE 45-4/4-2 A-G-A-HUUV | Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc. The pump head and base are in cast iron – all other wetted parts are in stainless steel. The pump has the following characteristics: Dimensions according to DIN 5440.
Impellers, intermediate chambers and spline shaft are made of Stainless steel.
Mechanical shaft seal according to EN 12756.
Power transmission via sintered metal split coupling. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. The pump is fitted with a 3-phase, fan-cooled asynchronous motor. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. An operating panel on the motor terminal box enables setting of required setpoint as well as setting of pump to "Min. " or "Max. " operation or to "Stop". The Grundfos Eye indicator on the operating panel provides visual indication of pump status: "Power on": Motor is running (rotating green indicator lights) or not running (permanently green indicator lights)
"Warning": Motor is still running (rotating yellow indicator lights) or has stopped (permanently yellow indicator lights)
"Alarm": Motor has stopped (flashing red indicator lights). Communication with the pump is possible by means of Grundfos GO Remote (accessory). The remote control enables further settings as well as reading out of a number of parameters such as "Actual value", "Speed", "Power input" and total "Power consumption". The terminal box holds terminals for these connections: pump start/stop input (potential-free contact)
remote setpoint setting via analog signal, 0-10 V, 0(4)-20 mA
10 V voltage supply for setpoint potentiometer, Imax = 5 mA
three analog sensor inputs, 0-10 V, 0(4)-20 mA
24 V voltage supply for sensor, Imax = 40 mA
one analog output
three digital inputs
two Pt100 inputs
two potential-free fault signal relays with changeover contact, reporting "Fault", "Operation" or "Ready"
RS-485 GENIbus connection
interface for Grundfos CIM fieldbus module. Immersion depth:

EAN 5711495666095
Approvals CE
Approvals for motor CE
Built-in motor protection YES
Cable gland entry 1xM40+1xM20+4xM16 knock out
Chambers 4
Code for shaft seal HUUV
Connect code G
Connection 3 inch
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 286TC
Frequency converter Built-in
Function Module ADVANCED I/O
Gross weight 683.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Immersion depth 15.9 in
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor 286TC
Motor efficiency at full load 1 0.917
Motor standard NEMA
Motor type 180AA
Net weight 458.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power factor 1 0.88
Product family MTRE 45
Pump speed on which pump data are based 3541 rpm
Pump version A
Pumped liquid Emulsion
Rated current 36.5 A
Rated flow 238 US gpm
Rated head 341.2 ft
Rated power - P2 22 kW
Rated speed 480-3540 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection 3 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 180AA
Type of connection ANSI
Version A

Motor Curves

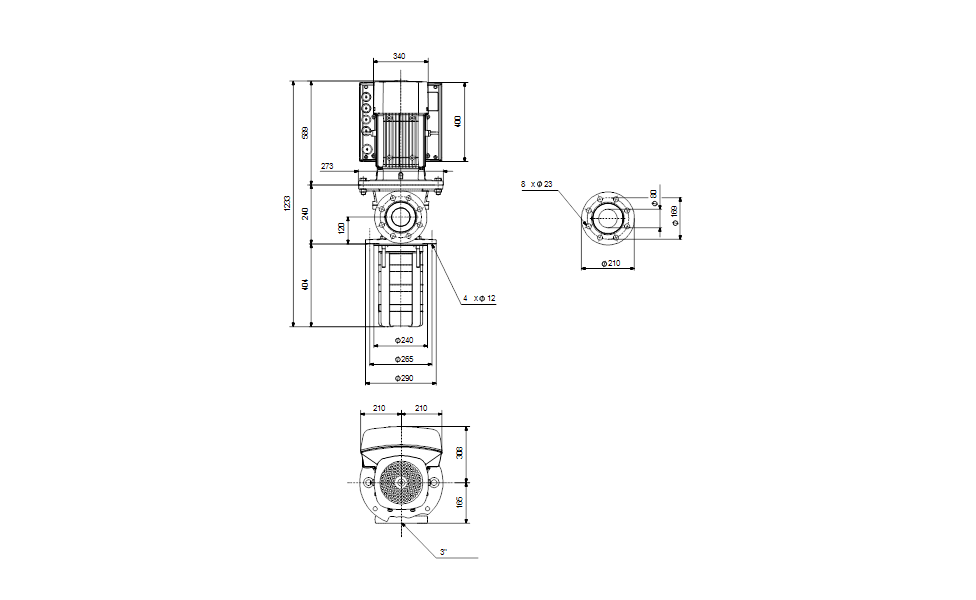

Dimensional Drawing

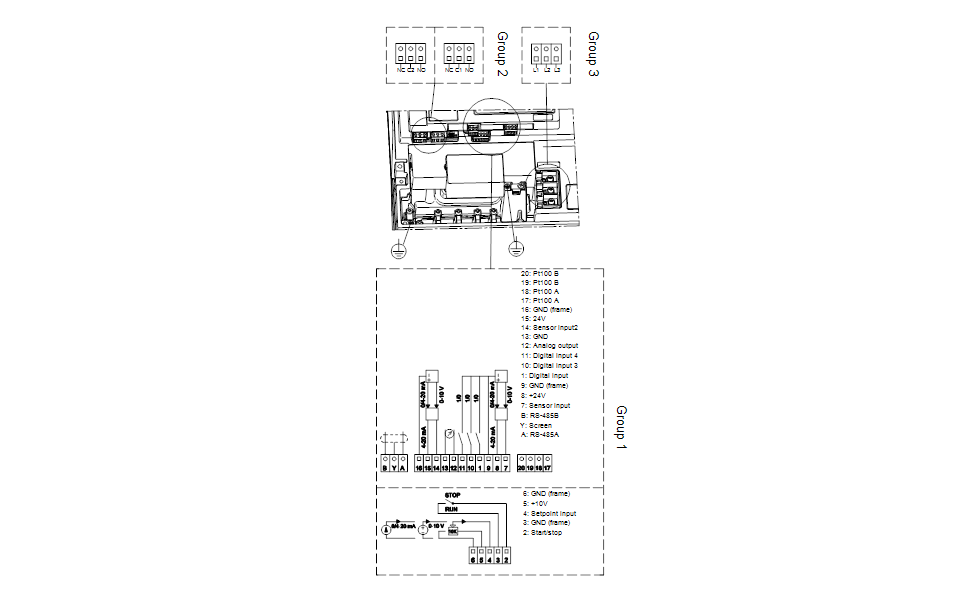

DWiring Diagram
