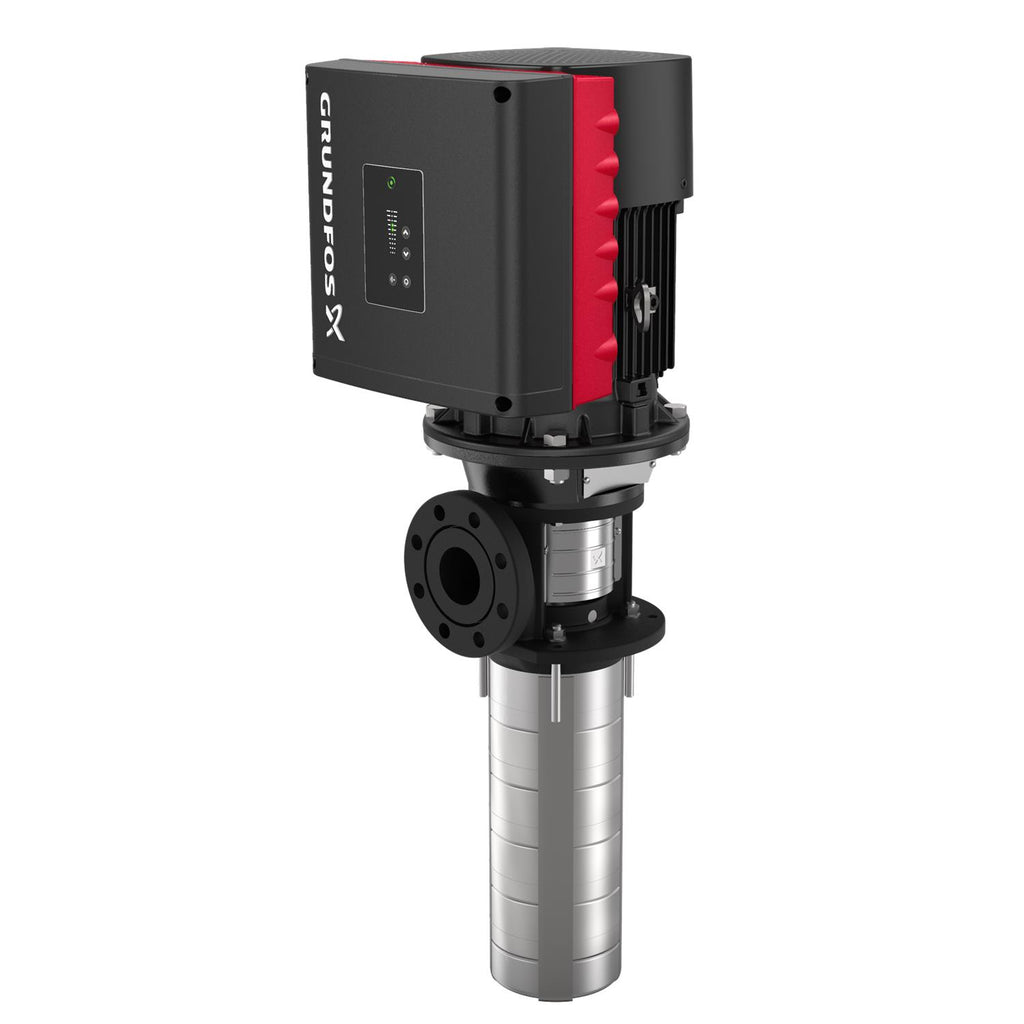

Grundfos 99077605 - MTRE 45-2/2 A-G-A-HUUV | Vertical | Multistage | Tank Mounted | Centrifugal

Save $7,058.46
GRUNDFOSSKU: 99077605

Price:
Sale price$7,959.54 Regular price$15,018.00
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99077605 - MTRE 45-2/2 A-G-A-HUUV is a vertical, multistage centrifugal pump designed for tank-mounted installations and industrial service. This replacement unit suits operators and maintenance teams seeking a compact vertical multistage solution.

Key features

  • Manufactured for various industrial applications and replacement use
  • Vertical, multistage centrifugal design for higher pressure in compact footprint
  • Tank-mounted configuration for simplified installation and maintenance access

Applications

Ideal for booster systems, pressure maintenance, fluid transfer, and general industrial process duties where a vertical multistage tank-mounted pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99077605

EAN 5712606312191
Approvals CE
Approvals for motor CE
Built-in motor protection ELEC
Cable gland entry 1 x NPT 3/4" + 5 x NPT 1/2"
Chambers 2
Code for shaft seal HUUV
Connect code G
Connection 3 inch
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 254TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 301.0 lb
IE Efficiency class IE5
Immersion depth 9.61 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor 254TC
Motor efficiency at full load 1 0.932
Motor standard NEMA
Motor type 160H
Net weight 237.0 lb
Number of reduced-diameter impellers 0
Power factor 1 0.92-0.91
Product family MTRE 45
Pump speed on which pump data are based 3444 rpm
Pump version A
Pumped liquid Emulsion
Rated current 17.9-16.6 A
Rated flow 238 US gpm
Rated head 187.7 ft
Rated power - P2 11 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection 3 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 160H
Type of connection ANSI
Version A

Motor Curves

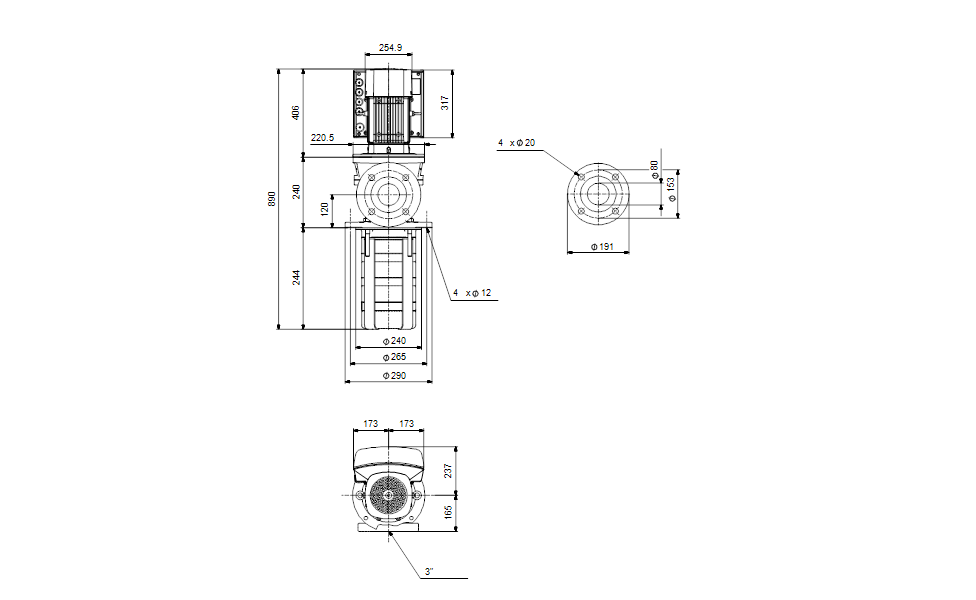

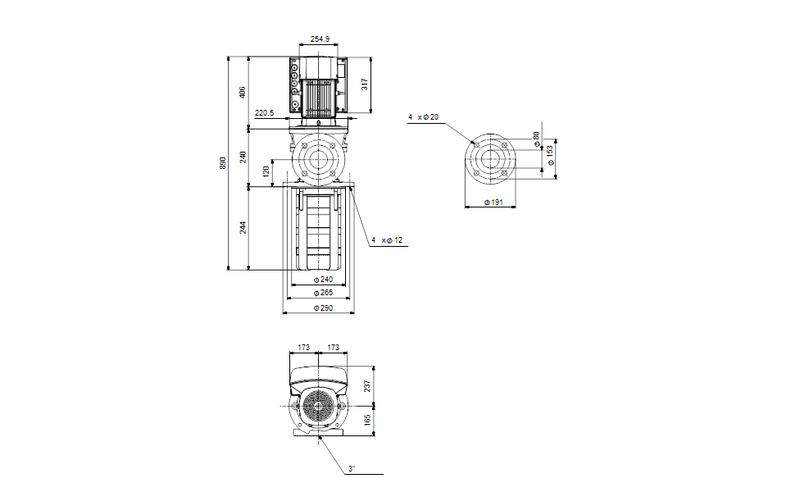

Dimensional Drawing

DWiring Diagram
