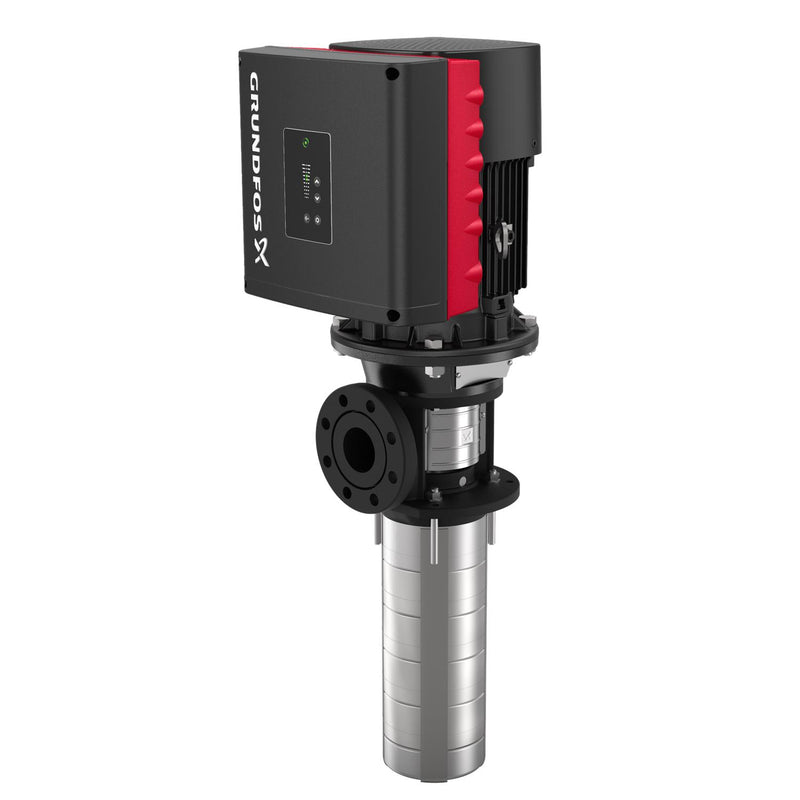

Grundfos 99077600 - MTRE 32-2/2-1 A-G-A-HUUV | Vertical | Multistage | Tank Mounted | Centrifugal

Save $5,363.17
GRUNDFOSSKU: 99077600

Price:
Sale price$6,047.83 Regular price$11,411.00
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99077600 - MTRE 32-2/2-1 A-G-A-HUUV is a vertical, tank-mounted multistage centrifugal pump assembly used in industrial and commercial fluid handling applications. It is suited for technicians and maintenance teams replacing tank-mounted or vertical multistage units.

Key features

  • Designed for tank-mounted installation and vertical multistage operation for consistent pressure delivery
  • Compatible with centrifugal and immersed pump systems and control accessories listed under Mt Tank Mounted Pumps and Grundfos Controls & Accessories
  • Compact, service-friendly design for easier maintenance and reliable performance in boost and transfer applications

Applications

Typical uses include pressure boosting, industrial fluid transfer, HVAC circulation, and tank-mounted pumping systems where a vertical multistage centrifugal unit is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99077600

EAN 5712606312092
Approvals CE
Approvals for motor CE
Built-in motor protection ELEC
Cable gland entry 5 x NPT 1/2"
Chambers 2
Code for shaft seal HUUV
Connect code G
Connection 2.5 inch
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 234.0 lb
IE Efficiency class IE5
Immersion depth 8.78 in
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor 213TC
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type 132E
Net weight 171.0 lb
Number of reduced-diameter impellers 1
Power factor 1 0.91-0.89
Product family MTRE 32
Pump speed on which pump data are based 3467 rpm
Pump version A
Pumped liquid Emulsion
Rated current 9.10-8.50 A
Rated flow 159 US gpm
Rated head 124.3 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection 2.5 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 132E
Type of connection ANSI
Version A

Motor Curves

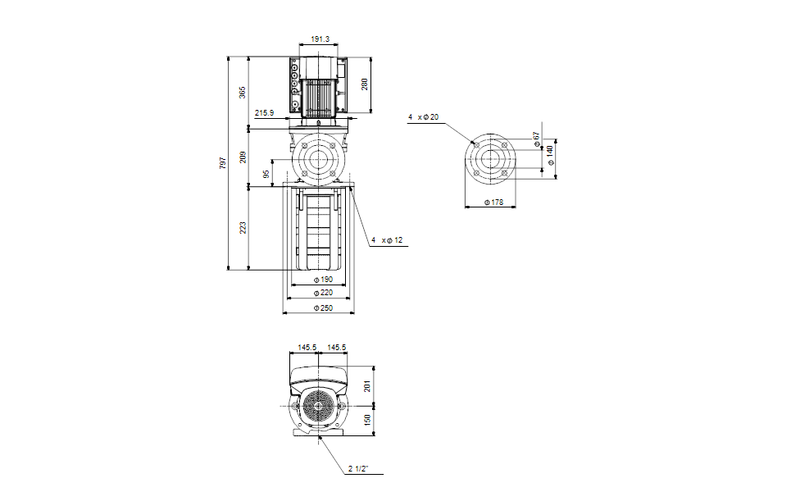

Dimensional Drawing

DWiring Diagram
