99670422 · Submersible Multistage Pump — Tank Top Variable Speed

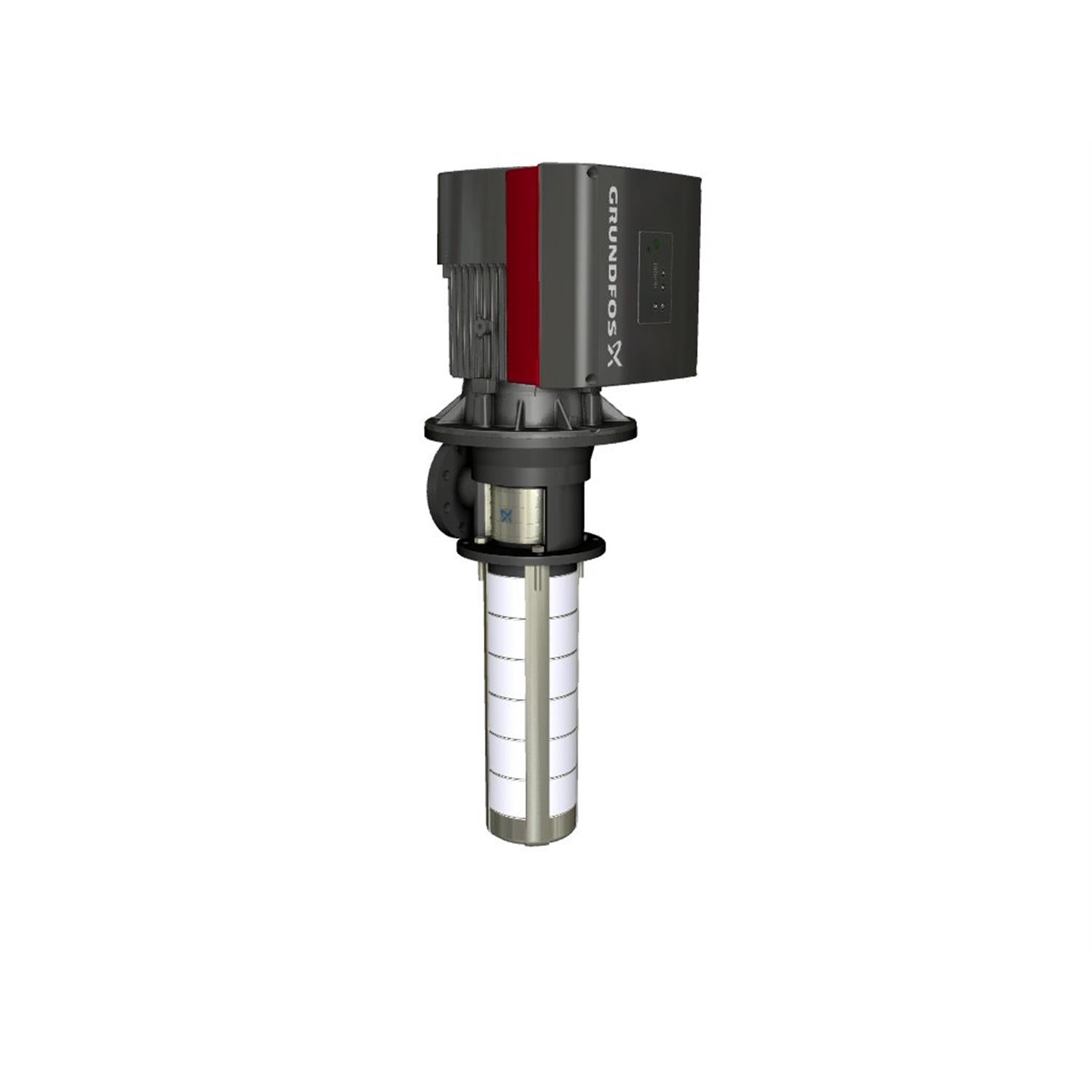

The Grundfos 99670422 (MTRE 32-12/7 A-G-A-HUUV) is a Submersible Multistage Pump — Tank Top Variable Speed. Tank top multistage pump with integrated frequency converter. Nominal performance: 159US gpm at 504.6ft. Rated 460-480V, 3.0-Phase, 60 Hz.
Power
30HP
Voltage
460-480V
Phase
3.0-Phase
Max Flow
159US gpm
Max Head
504.6ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — 99670422
Series: MTRE
Impeller Material: Stainless steel
Shaft Seal: HUUV
Technical Specifications
| Model Number | 99670422 |
| Product Series | MTRE |
| Series Description | Submersible Multistage Pump — Tank Top Variable Speed |
| Power | 30HP |
| Voltage | 460-480V |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 480-3540rpm |
| Pump Speed | 3541rpm |
| Full Load Current | 36.5A |
| Motor Type | 180AA |
| Motor Protection | YES |
| Motor Efficiency Class | NEMA Premium / IE3 60Hz |
| Motor Efficiency | 91.7% |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 159US gpm |
| Nominal Head | 504.6ft |
| Max Operating Pressure | 362.59psi |
| Max Fluid Temperature | 194°F |
| Max Ambient Temperature | 104°F |
| Outlet Connection | 2.5inch |
| Pipe Standard | ANSI |
| Impeller Material | Stainless steel |
| Shaft Seal | HUUV |
| Approvals / Certifications | CE, UKCA, RCM |
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 460-480V, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 194°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. MTRE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — MTRE Series
✓ Product Data Sheet — 99670422
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5713832694426
- Approvals
- CE
- Built-in motor protection
- YES
- Cable gland entry
- 1xM40+1xM20+4xM16 knock out
- Chambers
- 12
- Code for shaft seal
- HUUV
- Connect code
- G
- Connection
- 2.5 inch
- Control panel
- Standard
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP55
- Flange size for motor
- 286TC
- Frequency converter
- Built-in
- Function Module
- ADVANCED I/O
- Gross weight
- 666.0 lb
- IE Efficiency class
- NEMA Premium / IE3 60Hz
- Immersion depth
- 36.3 in
- Impeller
- Stainless steel
- Impellers
- 0
- Insulation class (IEC 85)
- F
- Liquid temperature range
- 14 .. 194 °F
- Mains frequency
- 60 Hz
- Material code
- A
- Material Pricing Group
- 31
- Max pressure at stated temp
- 363 psi / 194 °F
- Maximum ambient temperature
- 104 °F
- Maximum operating pressure
- 25 bar
- Minimum efficiency index, MEI ≥
- 0.7
- Model
- B
- Motor
- 286TC
- Motor efficiency at full load 1
- 0.917
- Motor standard
- NEMA
- Motor type
- 180AA
- Net weight
- 441.0 lb
- Number of poles
- 2
- Number of reduced-diameter impellers
- 0
- Power factor 1
- 0.88
- Pump speed on which pump data are based
- 3541 rpm
- Pump version
- A
- Pumped liquid
- Water
- Rated current
- 36.5 A
- Rated flow
- 159 US gpm
- Rated head
- 504.6 ft
- Rated power - P2
- 22 kW
- Rated speed
- 480-3540 rpm
- Rated voltage
- 3 x 460 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Selected liquid temperature
- 68 °F
- Service factor
- 1.15
- Size of outlet connection
- 2.5 inch
- Standard
- NEMA
- Suitable for 50/60 Hz
- N
- Terminal box position
- 6
- Type
- 180AA
- Type of connection
- ANSI
- Version
- A
