Grundfos 99159871 - MTRE 3-19/19 HS-WB-A-HUUV | Multistage | Immersible | SelfPriming | Centrifugal | Vertical Installation | Vertical

Save $4,881.89
GRUNDFOSSKU: 99159871

Price:
Sale price$5,505.11 Regular price$10,387.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

MTRE 3-19/19 HS-WB-A-HUUV | Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc. The pump head and base are in cast iron – all other wetted parts are in stainless steel. MTRE-HS is a single-pump solution capable of generating up to 38 bar. The pump has the following characteristics: Dimensions according to DIN 5440.
Impellers, intermediate chambers and spline shaft are made of Stainless steel.
Mechanical shaft seal according to EN 12756.
Power transmission via sintered metal split coupling. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. The pump is fitted with a 3-phase, fan-cooled, permanent-magnet, synchronous motor. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. The terminal box has a number of inputs and outputs enabling the motor to be used in advanced applications where many inputs and outputs are required: two dedicated digital inputs
three analog inputs, 0(4)-20 mA, 0-5 V, 0-10 V, 0. 5-3. 5 V
5 V voltage supply to potentiometer and sensor
one analog output, 0-10 V, 0(4)-20 mA
two configurable digital inputs or open-collector outputs
two Pt100/Pt1000 inputs
LiqTec, dry-running protection sensor input
Grundfos Digital Sensor input and output
24 V voltage supply for sensors
two signal-relay outputs (potential-free contacts)
GENIbus connection
interface for Grundfos CIM fieldbus module. Immersion depth:

EAN 5712607849368
Approvals CE
Approvals for motor CE
Built-in motor protection ELEC
Cable gland entry 1 x NPT 3/4" + 5 x NPT 1/2"
Chambers 19
Code for shaft seal HUUV
Connect code WB
Connection 1 1/4 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 170.0 lb
IE Efficiency class IE5
Immersion depth 18.3 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 551.14 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 38 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 213TC
Motor efficiency at full load 1 0.907
Motor standard NEMA
Motor type 132F
Net weight 168.0 lb
Number of reduced-diameter impellers 0
Power factor 1 0.91-0.90
Product family MTRE 3
Pump speed on which pump data are based 5060 rpm
Pump version HS
Pumped liquid Emulsion
Rated current 12.5-11.6 A
Rated flow 15.4 US gpm
Rated head 1151 ft
Rated power - P2 7.5 kW
Rated speed 480-5900 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection 1 1/4 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 132F
Type of connection NPT(F)
Version HS

Motor Curves

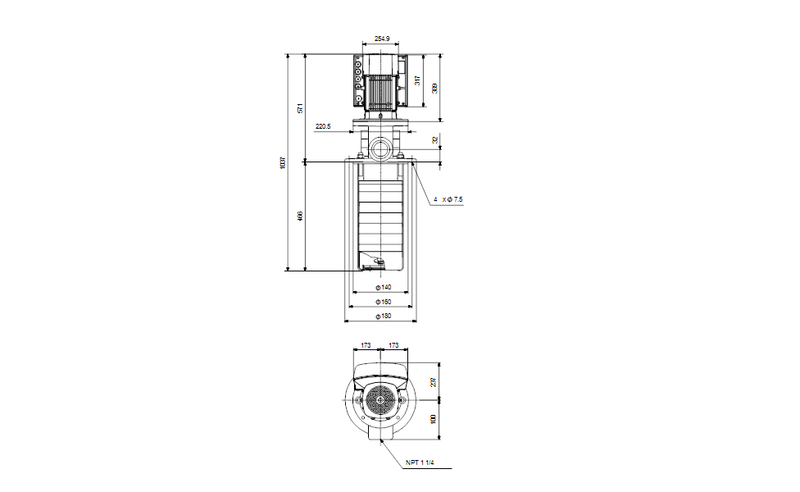

Dimensional Drawing

DWiring Diagram
