Grundfos 98400102 - MTRE 1S-27/27 A-WB-A-HUUV | Vertical | Multistage | Tank Mounted | Centrifugal

Save $3,492.57
GRUNDFOSSKU: 98400102

Price:
Sale price$3,938.43 Regular price$7,431.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

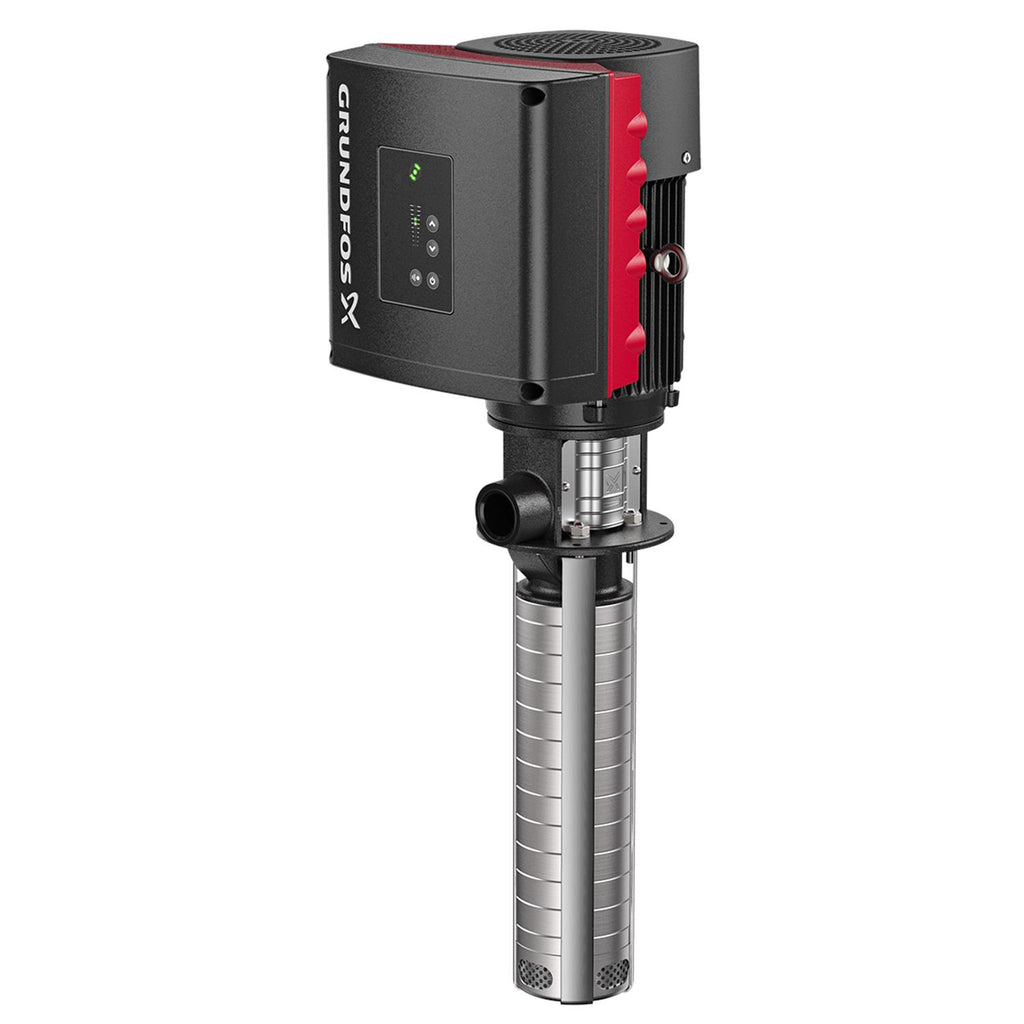

Grundfos 98400102 - MTRE 1S-27/27 A-WB-A-HUUV

The Grundfos 98400102 - MTRE 1S-27/27 A-WB-A-HUUV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this tank-mounted pump is engineered for efficiency and reliability, making it an ideal choice for those seeking robust pumping solutions.

This model features a single-stage design, ensuring optimal performance in various settings. Its versatile nature allows it to be utilized in both immersed and non-immersed applications, catering to a wide range of operational needs.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

Explore our selection of Grundfos products and experience the quality and performance that comes with a trusted name in the industry.

EAN 5711494356676
Approvals CE
Approvals for motor CE
Built-in motor protection ELEC
Cable gland entry 4xM20 blind plug
Chambers 27
Code for shaft seal HUUV
Connect code WB
Connection 1 1/4 inch
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 112.0 lb
IE Efficiency class IE5
Immersion depth 24 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.67
Model A
Motor 56C
Motor efficiency at full load 1 0.894
Motor standard NEMA
Motor type 90C
Net weight 48.5 lb
Number of reduced-diameter impellers 0
Power factor 1 0.87
Product family MTRE 1-S
Pump speed on which pump data are based 3452 rpm
Pump version A
Pumped liquid Emulsion
Rated current 2.65 A
Rated flow 4.84 US gpm
Rated head 513.8 ft
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection 1 1/4 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 90C
Type of connection NPT(F)
Version A

Motor Curves

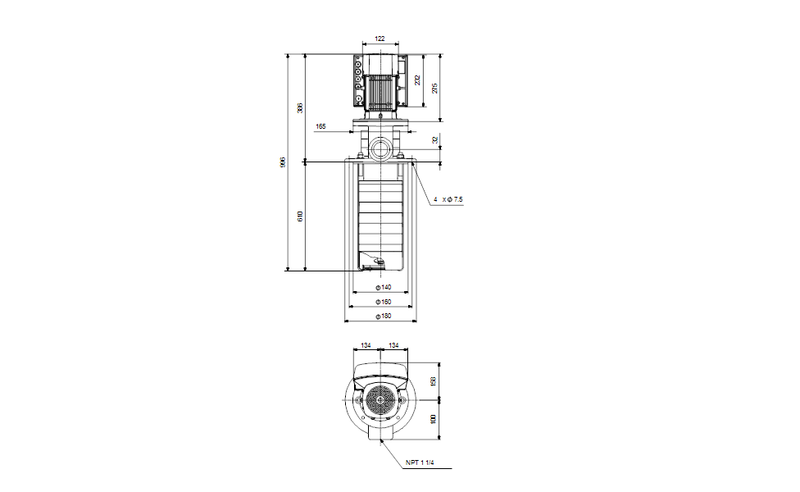

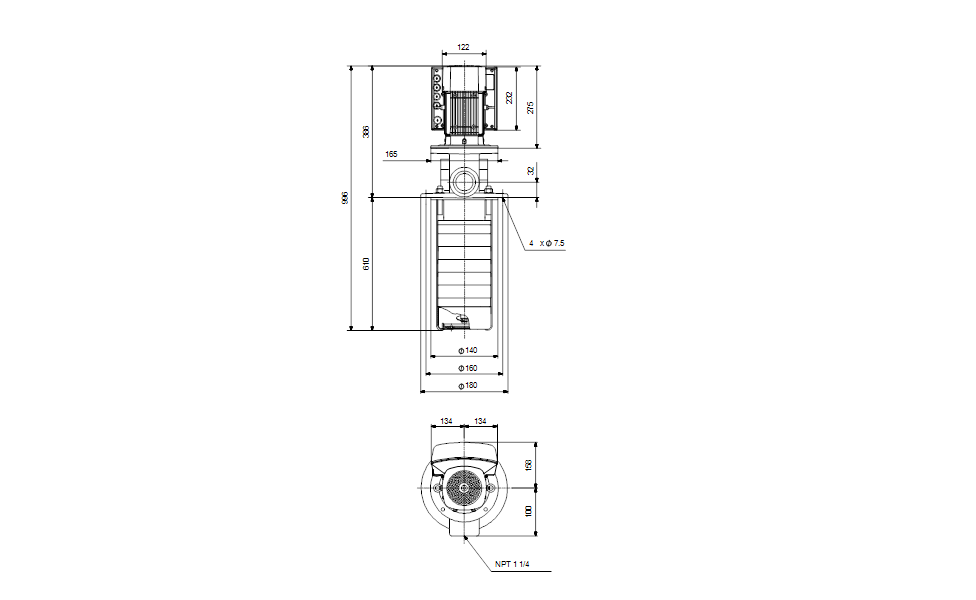

Dimensional Drawing

DWiring Diagram
