Description

Overview

Manufactured by Grundfos, the MTRE 15-5/5 A-WB-A-HUUV is a vertical, tank-mounted multistage centrifugal pump used in industrial fluid handling and pressure-boosting systems by contractors and plant maintenance teams.

Key features

  • Tank-mounted vertical multistage centrifugal design for compact installations
  • Compatible with Mt tank-mounted pump accessories and Grundfos controls
  • Delivers reliable pressure boosting and staged flow for process and utility applications

Applications

Suitable for boiler feed, closed-loop circulating systems, pressure boosting, and industrial process water handling where vertical multistage pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99077593

EAN 5712606311958
Approvals CE
Approvals for motor CE
Built-in motor protection ELEC
Cable gland entry 1 x NPT 3/4" + 5 x NPT 1/2"
Chambers 5
Code for shaft seal HUUV
Connect code WB
Connection 2 inch
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 221.0 lb
IE Efficiency class IE5
Immersion depth 12.3 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 213TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 132F
Net weight 157.0 lb
Number of reduced-diameter impellers 0
Power factor 1 0.91-0.90
Product family MTRE 15
Pump speed on which pump data are based 3470 rpm
Pump version A
Pumped liquid Emulsion
Rated current 12.4-11.5 A
Rated flow 90.3 US gpm
Rated head 266.1 ft
Rated power - P2 7.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection 2 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 132F
Type of connection NPT(F)
Version A

Motor Curves

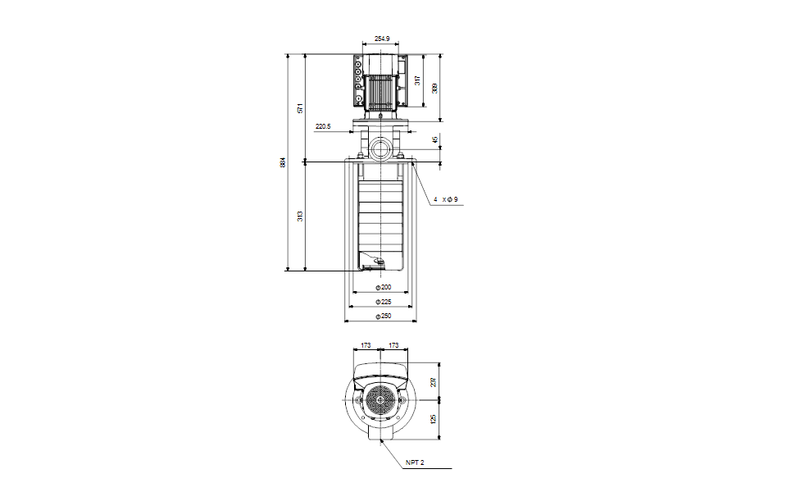

Dimensional Drawing

DWiring Diagram
