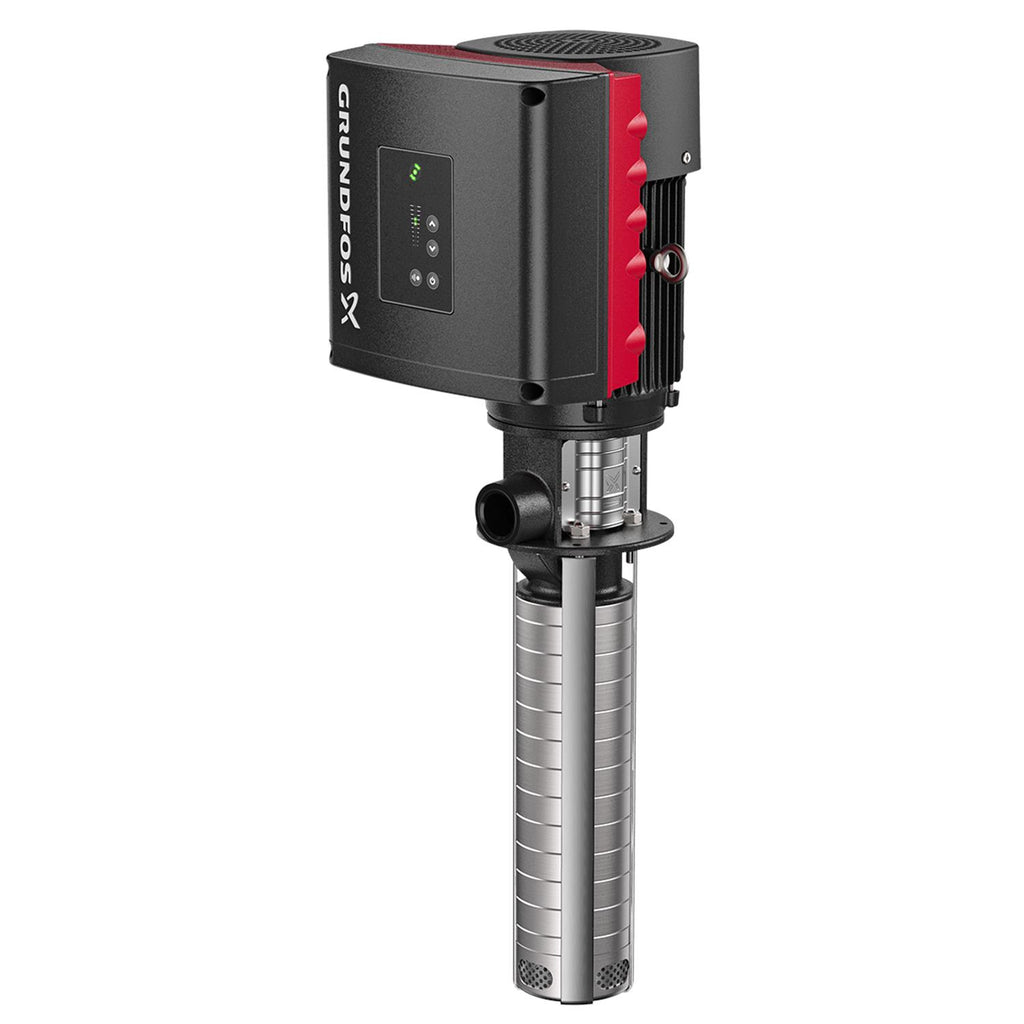

Grundfos 99077590 - MTRE 15-2/2 A-WB-A-HUUV | Vertical | Multistage | Tank Mounted | Centrifugal

Save $4,154.80
GRUNDFOSSKU: 99077590

Price:
Sale price$4,685.20 Regular price$8,840.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99077590 - MTRE 15-2/2 A-WB-A-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5712606311897
Approvals CE
Approvals for motor CE
Built-in motor protection ELEC
Cable gland entry 5 x NPT 1/2"
Chambers 2
Code for shaft seal HUUV
Connect code WB
Connection 2 inch
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 176.0 lb
IE Efficiency class IE5
Immersion depth 7.01 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 182TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 112C
Net weight 112.0 lb
Number of reduced-diameter impellers 0
Power factor 1 0.90-0.88
Product family MTRE 15
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Emulsion
Rated current 6.20-5.80 A
Rated flow 90.3 US gpm
Rated head 103.7 ft
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection 2 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 112C
Type of connection NPT(F)
Version A

Motor Curves

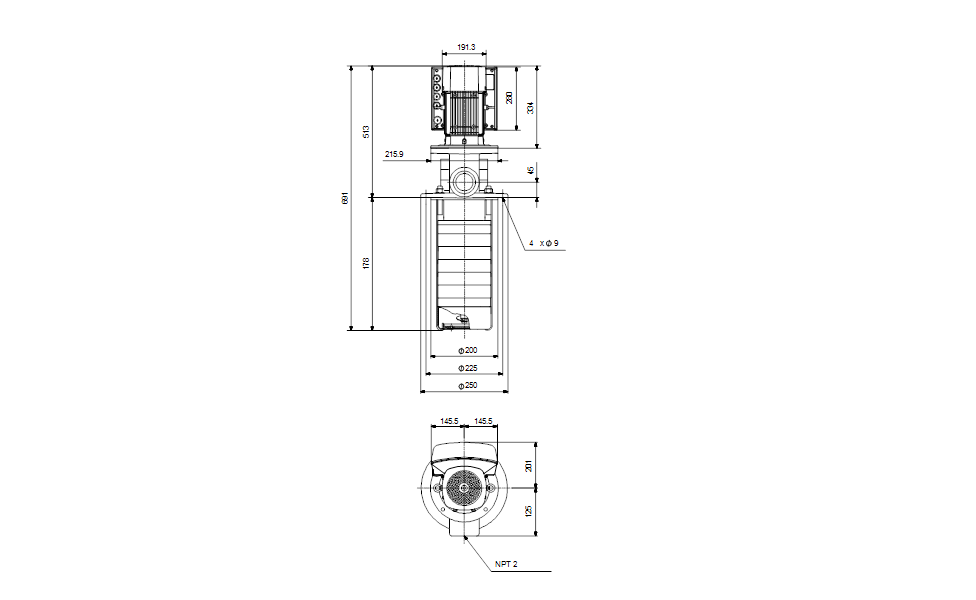

Dimensional Drawing

DWiring Diagram
