Grundfos 99077583 - MTRE 10-6/6 A-WB-A-HUUV | Vertical | Multistage | Tank Mounted | Centrifugal

Save $4,369.59
GRUNDFOSSKU: 99077583

Price:
Sale price$4,927.41 Regular price$9,297.00
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99077583 MTRE 10-6/6 A-WB-A-HUUV is a vertical, tank-mounted multistage centrifugal pump assembly for industrial fluid handling and control applications used by service technicians and plant maintenance teams.

Key features

  • Vertical multistage centrifugal design for higher discharge pressures
  • Tank-mounted configuration suitable for MT series installations and controls
  • Compact assembly offering reliable performance for immersed and single- or multi-stage systems

Applications

General industrial transfer, pressure boosting, circulation, and tank-mounted pumping in facilities using MTRE and related MT/MTR/MTS series equipment.

Compatibility note: Match the exact model or SKU before ordering. For help, call 781-281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99077583

EAN 5712606311651
Approvals CE
Approvals for motor CE
Built-in motor protection ELEC
Cable gland entry 5 x NPT 1/2"
Chambers 6
Code for shaft seal HUUV
Connect code WB
Connection 2 inch
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 174.0 lb
IE Efficiency class IE5
Immersion depth 10.6 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 182TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 112C
Net weight 111.0 lb
Number of reduced-diameter impellers 0
Power factor 1 0.90-0.88
Product family MTRE 10
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Emulsion
Rated current 6.20-5.80 A
Rated flow 53.3 US gpm
Rated head 227 ft
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection 2 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 112C
Type of connection NPT(F)
Version A

Motor Curves

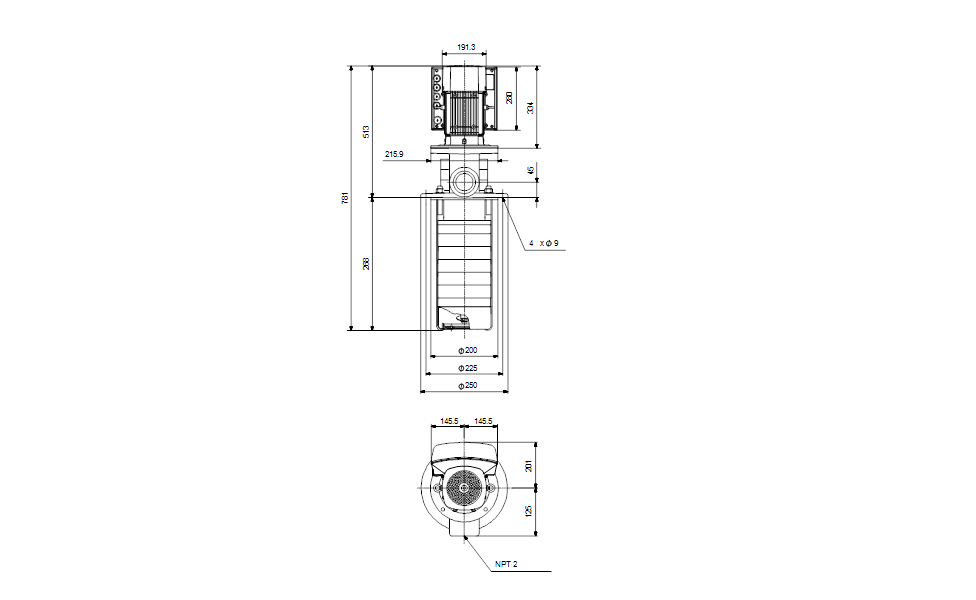

Dimensional Drawing

DWiring Diagram
