Grundfos 99077572 - MTRE 10-5/5 A-WB-A-HUUV | Vertical | Multistage | Tank Mounted | Centrifugal

Save $4,193.34
GRUNDFOSSKU: 99077572

Price:
Sale price$4,728.66 Regular price$8,922.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99077572 MTRE 10-5/5 A-WB-A-HUUV is a vertical, tank-mounted multistage centrifugal pump designed for industrial fluid handling where compact, pressurized delivery is required. It suits technicians and service shops replacing or maintaining system-mounted pumps.

Key features

  • Factory manufacturing by Grundfos for reliable industrial use
  • Multistage vertical centrifugal design for higher head in a compact footprint
  • Tank-mounted configuration simplifies installation and reduces piping complexity

Applications

Typical uses include pressurized water systems, booster and circulation duties, tank-mounted process applications, and service replacement in vertical multistage installations.

Compatibility note: Match the exact model or SKU before ordering. For help or verification, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99077572

EAN 5712606311637
Approvals CE
Approvals for motor CE
Built-in motor protection ELEC
Cable gland entry 5 x NPT 1/2"
Chambers 5
Code for shaft seal HUUV
Connect code WB
Connection 2 inch
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 174.0 lb
IE Efficiency class IE5
Immersion depth 9.37 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 182TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 112C
Net weight 110.0 lb
Number of reduced-diameter impellers 0
Power factor 1 0.90-0.88
Product family MTRE 10
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Emulsion
Rated current 6.20-5.80 A
Rated flow 53.3 US gpm
Rated head 191.3 ft
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection 2 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 112C
Type of connection NPT(F)
Version A

Motor Curves

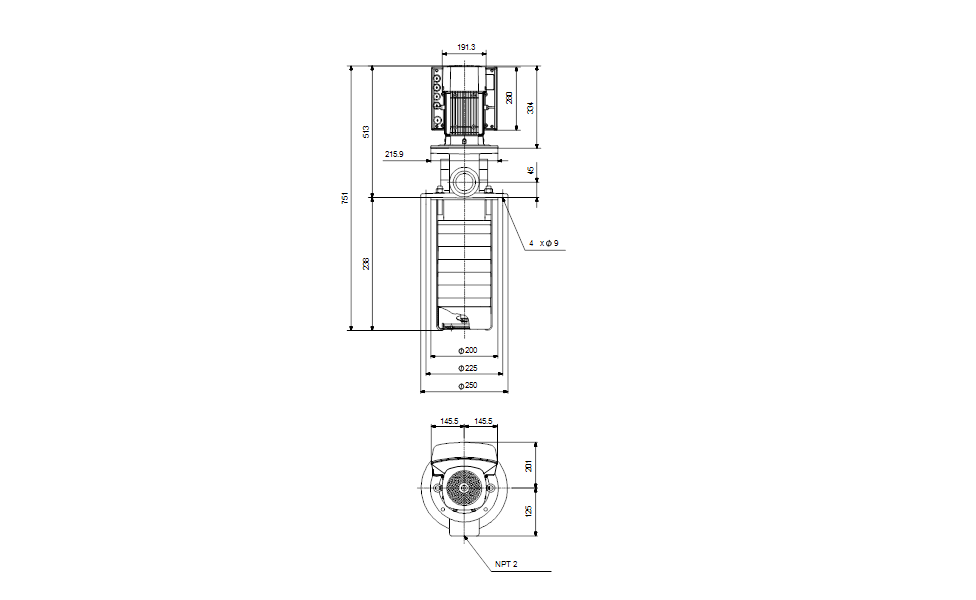

Dimensional Drawing

DWiring Diagram
