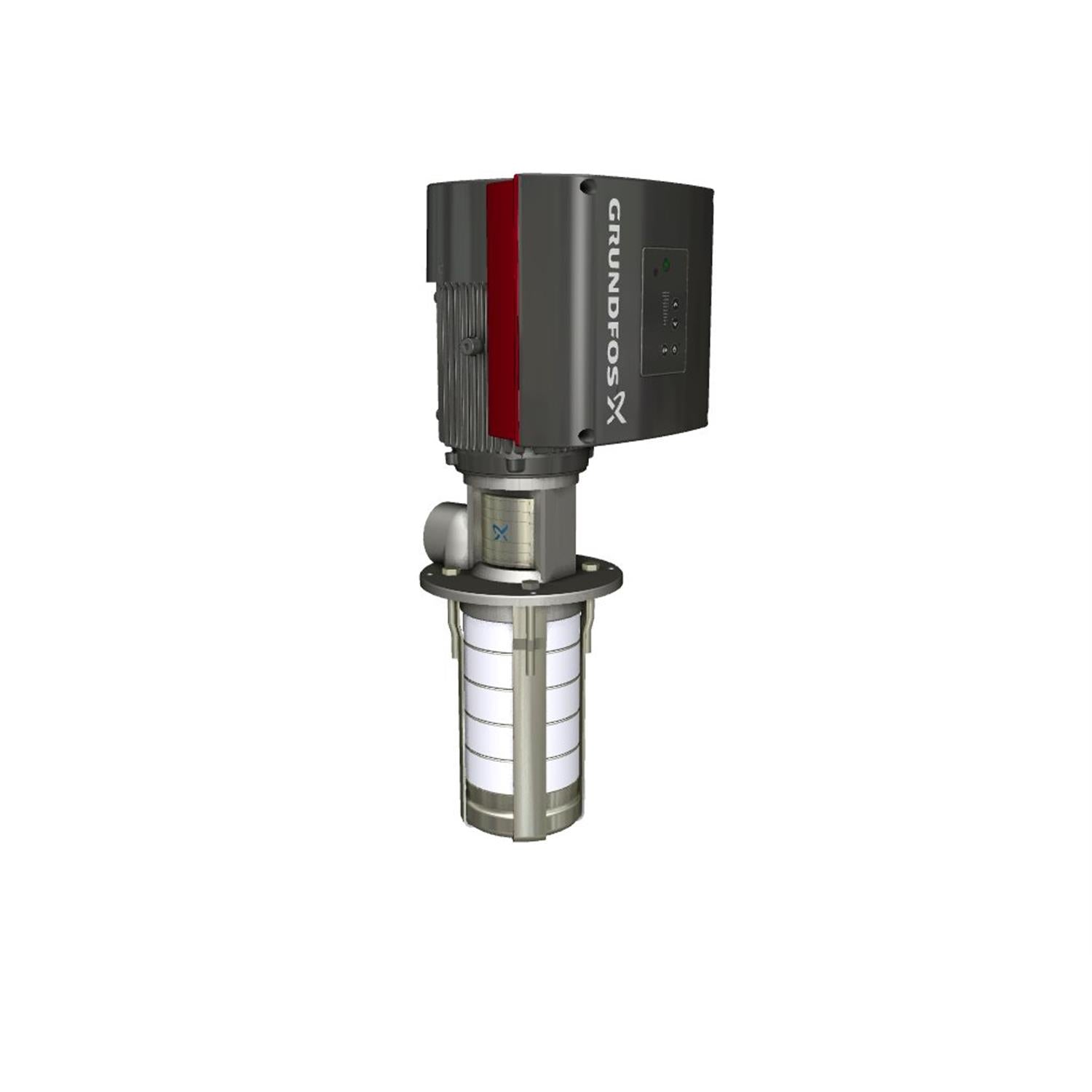

![Grundfos 99595499 - MTRE 10-4/2 A-WB-I-HQQV]()
![Grundfos 99595499 - MTRE 10-4/2 A-WB-I-HQQV]()
![Grundfos 99595499 - MTRE 10-4/2 A-WB-I-HQQV]()
![Grundfos 99595499 - MTRE 10-4/2 A-WB-I-HQQV]()
Description
Grundfos 99595499 - MTRE 10-4/2 A-WB-I-HQQV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713831627456
Material Pricing Group
31
Motor efficiency at full load 1
0.894
IE Efficiency class
IE5
Maximum ambient temperature
122 °F
Material code
I
Immersion depth
8.19 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.87
Selected liquid temperature
68 °F
Type of connection
NPT(F)
Rated voltage
3 x 440-480 V
Flange size for motor
56C
Pumped liquid
Water
Size of outlet connection
2 inch
Connect code
WB
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Built-in motor protection
ELEC
Net weight
67.5 lb
Rated speed
360-4000 rpm
Gross weight
101.0 lb
Rated power - P2
1.5 kW
Enclosure class (IEC 34-5)
IP55
Rated current
2.65 A
Service factor
1.15
Cable gland entry
4xM20 blind plug
Control panel
Standard
Minimum efficiency index, MEI ≥
0.7
Frequency converter
Built-in
Motor type
90C
Terminal box position
6
Function Module
FM300 - Advanced
Pump speed on which pump data are based
3452 rpm
Approvals
CE
Rated flow
53.3 US gpm
Model
A
Version
A
Motor
56C
Chambers
4
Motor standard
NEMA
Rated head
69.56 ft
Type
90C
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
2 inch
Impeller
Stainless steel
Code for shaft seal
HQQV
Number of reduced-diameter impellers
0
Standard
NEMA
Pump version
A
