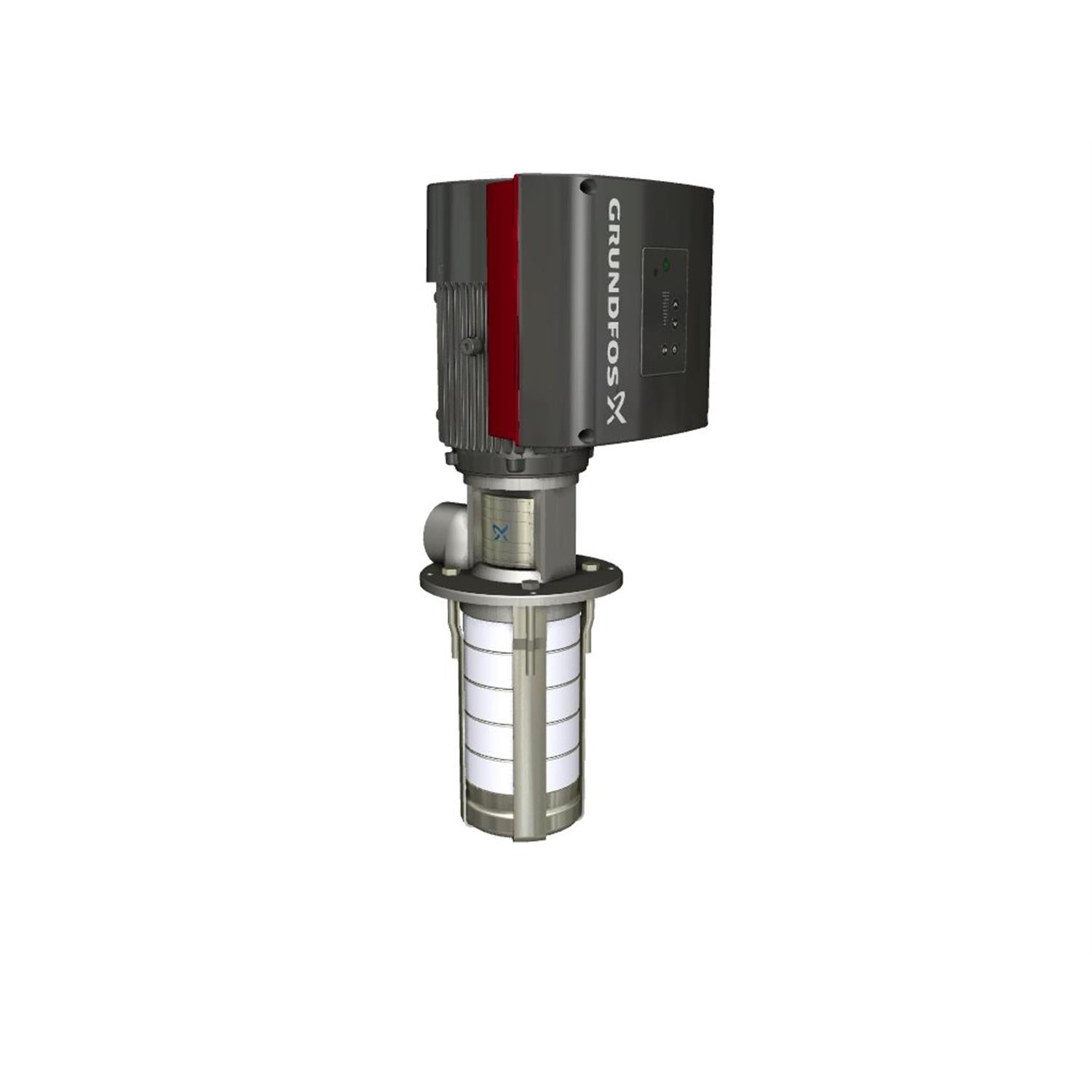

![Grundfos 99567256 - MTRE 10-4/2 A-WB-I-HUUV]()
![Grundfos 99567256 - MTRE 10-4/2 A-WB-I-HUUV]()
![Grundfos 99567256 - MTRE 10-4/2 A-WB-I-HUUV]()
![Grundfos 99567256 - MTRE 10-4/2 A-WB-I-HUUV]()
![Grundfos 99567256 - MTRE 10-4/2 A-WB-I-HUUV]()
![Grundfos 99567256 - MTRE 10-4/2 A-WB-I-HUUV]()
Description
Grundfos 99567256 - MTRE 10-4/2 A-WB-I-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713831167549
Material Pricing Group
32
Motor efficiency at full load 1
0.889
IE Efficiency class
IE5
Maximum ambient temperature
104 °F
Material code
I
Immersion depth
8.19 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.92
Selected liquid temperature
68 °F
Type of connection
NPT(F)
Rated voltage
3 x 200-240 V
Flange size for motor
56C
Pumped liquid
Water
Size of outlet connection
2 inch
Connect code
WB
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Built-in motor protection
ELEC
Net weight
67.4 lb
Rated speed
360-4000 rpm
Gross weight
101.0 lb
Rated power - P2
1.5 kW
Enclosure class (IEC 34-5)
IP55
Rated current
5.40-4.60 A
Service factor
1
Cable gland entry
4 x NPT 1/2"
Control panel
Graphical
Minimum efficiency index, MEI ≥
0.7
Frequency converter
Built-in
Motor type
90C
Terminal box position
6
Function Module
FM300 - Advanced
Pump speed on which pump data are based
3452 rpm
Approvals
CE
Rated flow
53.3 US gpm
Model
A
Version
A
Motor
56C
Chambers
4
Motor standard
NEMA
Rated head
69.56 ft
Type
90C
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
2 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
0
Standard
NEMA
Pump version
A
