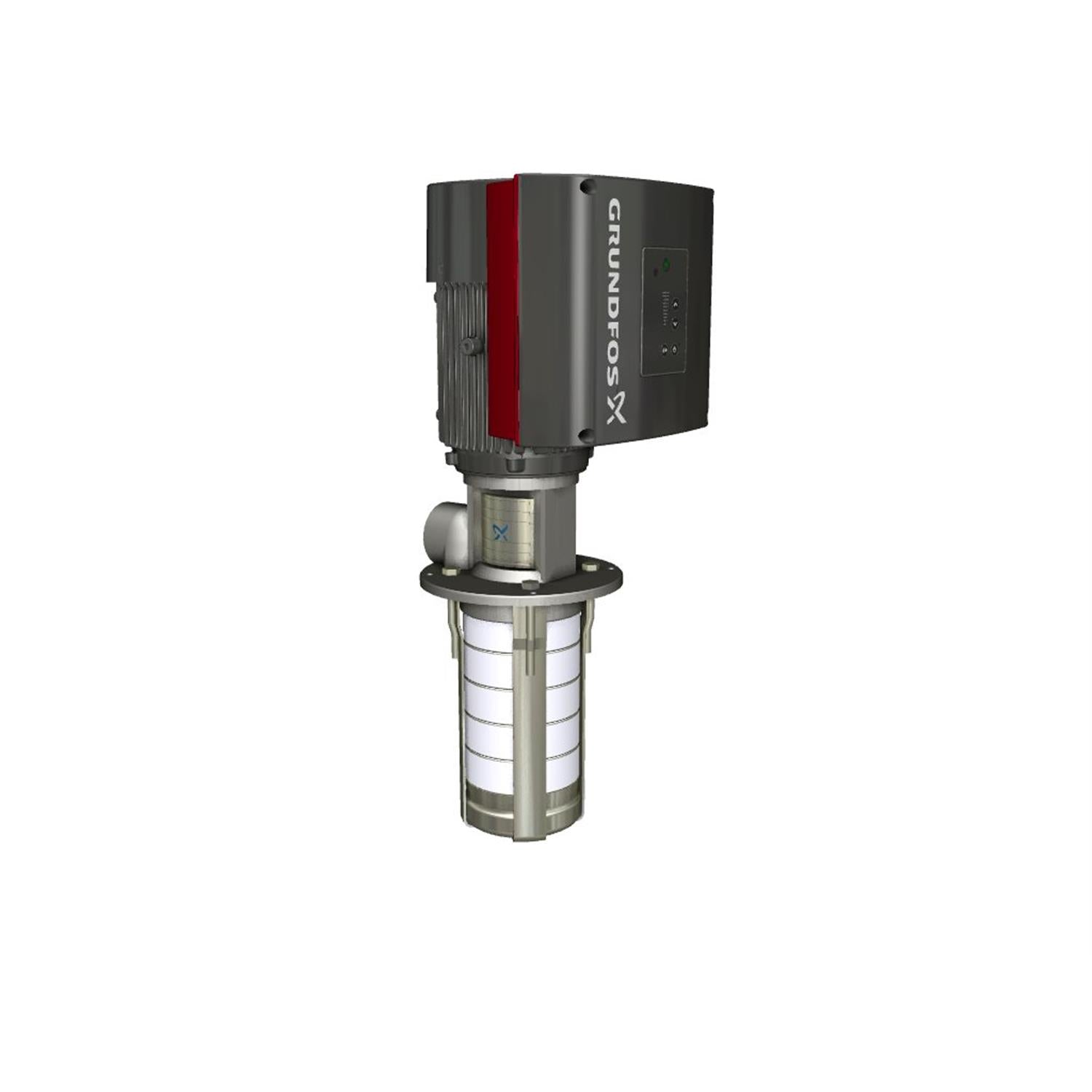

![Grundfos 99674555 - MTRE 10-25/12 A-W-I-HUUV]()
![Grundfos 99674555 - MTRE 10-25/12 A-W-I-HUUV]()
![Grundfos 99674555 - MTRE 10-25/12 A-W-I-HUUV]()
![Grundfos 99674555 - MTRE 10-25/12 A-W-I-HUUV]()
![Grundfos 99674555 - MTRE 10-25/12 A-W-I-HUUV]()
![Grundfos 99674555 - MTRE 10-25/12 A-W-I-HUUV]()
Description
Grundfos 99674555 - MTRE 10-25/12 A-W-I-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713832755400
Material Pricing Group
31
Motor efficiency at full load 1
0.922
IE Efficiency class
IE5
Maximum ambient temperature
122 °F
Material code
I
Immersion depth
33 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.92-0.87
Selected liquid temperature
68 °F
Type of connection
G internal thread
Rated voltage
3 x 380-500 V
Flange size for motor
FT130
Pumped liquid
Water
Size of outlet connection
2 inch
Connect code
W
Liquid temperature range
14 .. 194 °F
Mains frequency
50 Hz
Insulation class (IEC 85)
F
Built-in motor protection
ELEC
Net weight
104.0 lb
Rated speed
360-4000 rpm
Gross weight
168.0 lb
Rated power - P2
4 kW
Enclosure class (IEC 34-5)
IP55
Rated current
7.60-6.20 A
Cable gland entry
4xM20 + M25 blind plug
Control panel
Graphical
Minimum efficiency index, MEI ≥
0.7
Frequency converter
Built-in
Motor type
112MC
Terminal box position
6
Function Module
FM300 - Advanced
Pump speed on which pump data are based
2899 rpm
Approvals
CE
Rated flow
44 US gpm
Model
A
Version
A
Motor
FT130
Chambers
25
Motor standard
IEC
Rated head
321.5 ft
Type
112MC
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
2 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
A
