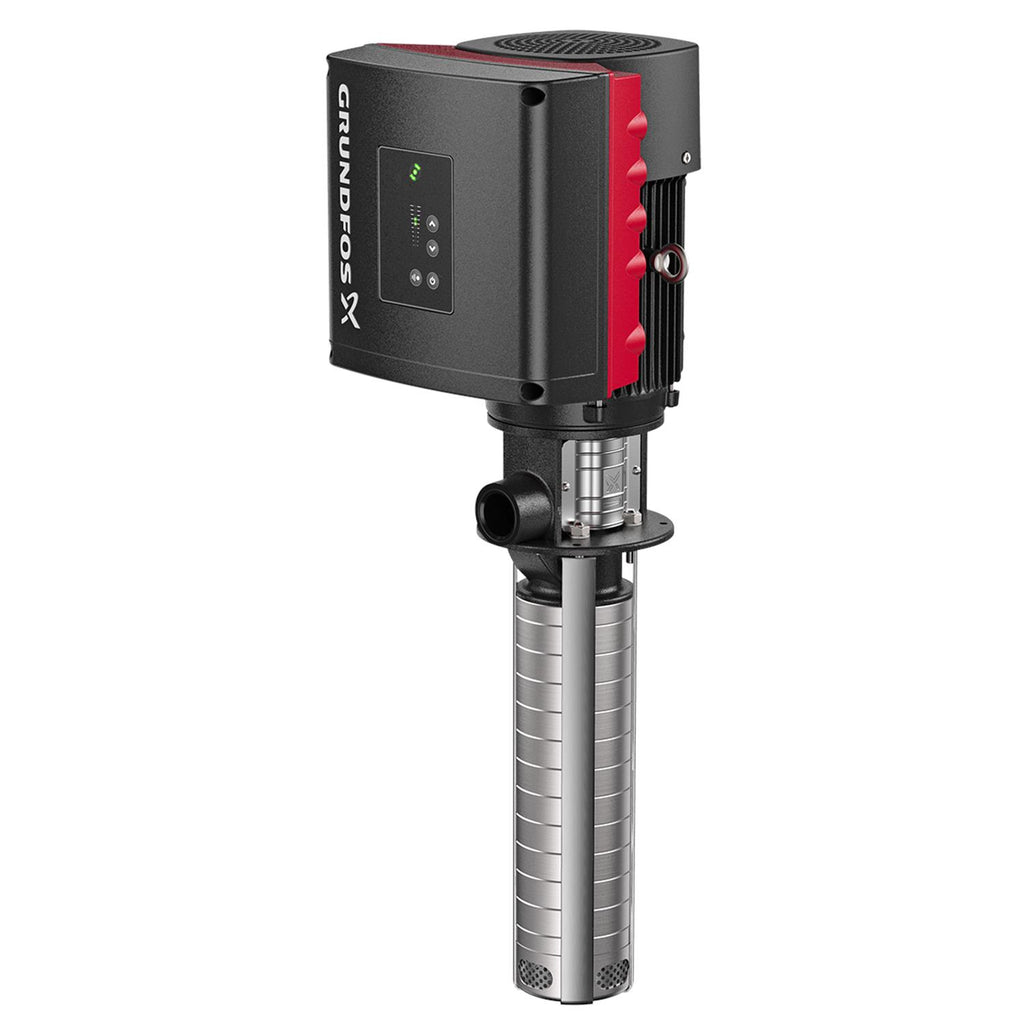

Grundfos 98400047 - MTRE 1-13/13 A-WB-A-HUUV | Vertical | Multistage | Tank Mounted | Centrifugal

Save $2,861.83
GRUNDFOSSKU: 98400047

Price:
Sale price$3,227.17 Regular price$6,089.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98400047 - MTRE 1-13/13 A-WB-A-HUUV

The Grundfos 98400047 - MTRE 1-13/13 A-WB-A-HUUV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this tank-mounted pump is engineered for efficiency and reliability, making it an ideal choice for demanding environments.

With its robust construction and advanced technology, the MTRE series ensures optimal performance and longevity. This pump is suitable for various fluid transfer tasks, providing consistent flow rates and pressure. Its vertical design allows for space-saving installation, making it a versatile option for your pumping needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5711494355266
Approvals CE
Approvals for motor CE
Built-in motor protection ELEC
Cable gland entry 4xM20 blind plug
Chambers 13
Code for shaft seal HUUV
Connect code WB
Connection 1 1/4 inch
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 72.6 lb
IE Efficiency class IE5
Immersion depth 14.1 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 56C
Motor efficiency at full load 1 0.869
Motor standard NEMA
Motor type 80B
Net weight 40.2 lb
Number of reduced-diameter impellers 0
Power factor 1 0.99
Product family MTRE 1
Pump speed on which pump data are based 3350 rpm
Pump version A
Pumped liquid Emulsion
Rated current 6.70-5.60 A
Rated flow 9.69 US gpm
Rated head 267.1 ft
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1
Size of outlet connection 1 1/4 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 80B
Type of connection NPT(F)
Version A

Motor Curves

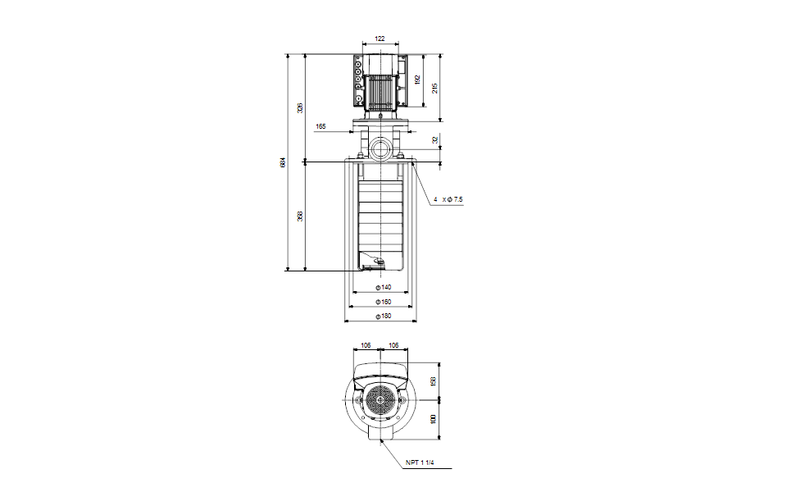

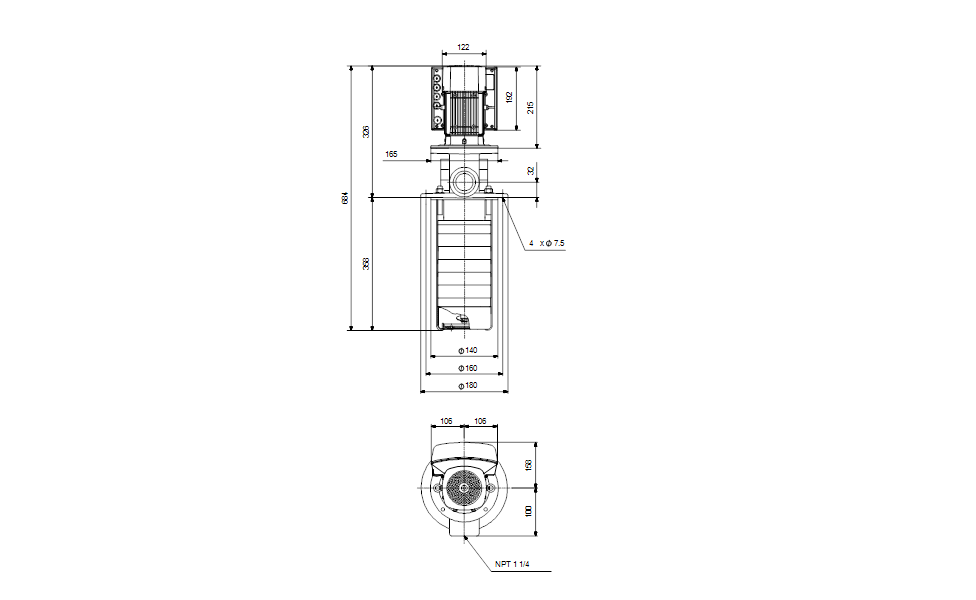

Dimensional Drawing

DWiring Diagram
