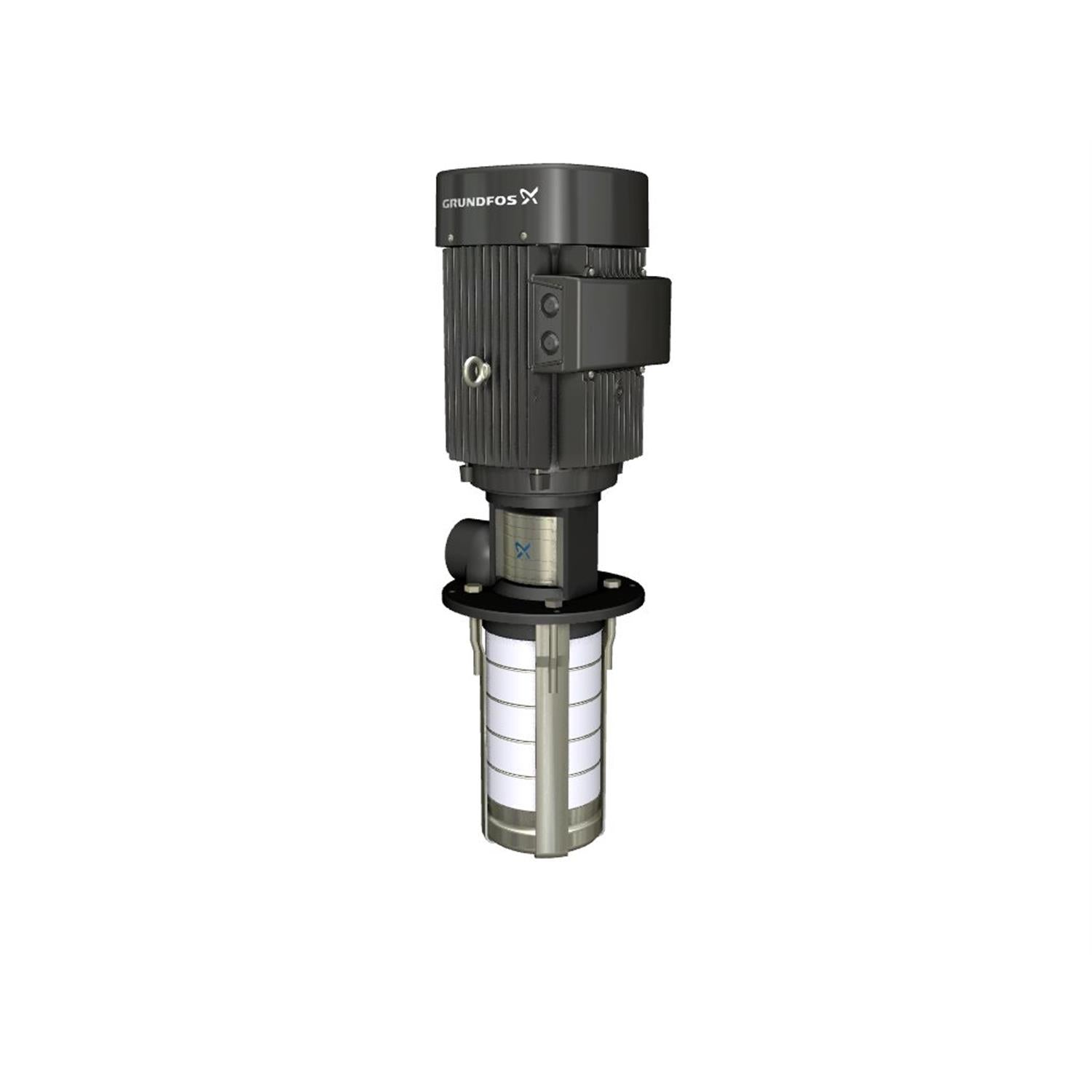

Grundfos 99607846 - MTR 8-6/1 A-W-A-HUUV

GRUNDFOSSKU: 99607846

Contact for price
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99607846 - MTR 8-6/1 A-W-A-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713831821564
Material Pricing Group 32
Material code A
Immersion depth 13 in
Max pressure at stated temp 363 psi / 194 °F
Maximum operating pressure 25 bar
Type of connection G internal thread
Flange size for motor FT85
Size of outlet connection 1 1/4 inch
Connect code W
Liquid temperature range 14 .. 194 °F
Net weight 26.2 lb
Gross weight 33.0 lb
Motor No N
Minimum efficiency index, MEI ≥ 0.7
Frequency converter NONE
Terminal box position 6
Pump speed on which pump data are based 2870 rpm
Rated flow 35.2 US gpm
Model A
Version A
Motor FT85
Chambers 6
Motor standard IEC
Rated head 21.33 ft
Curve tolerance ISO9906:2012 3B
Impellers 0
Suitable for 50/60 Hz N
Connection 1 1/4 inch
Impeller Stainless steel
Code for shaft seal HUUV
Number of reduced-diameter impellers 0
Standard IEC
Pump version A

Motor Curves

Dimensional Drawing
