Grundfos 98941986 - MTR 8-4/2-1 A-WB-A-HUUV | Multistage | Immersible | SelfPriming | Centrifugal | Vertical Installation | Vertical

GrundfosSKU: 98941986

Price:
Sale price$2,691.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
98941986 · Submersible Multistage Pump — Tank Top
MTR

The Grundfos 98941986 (MTR 8-4/2-1 A-WB-A-HUUV) is a Submersible Multistage Pump — Tank Top. Vertical multistage pump for tank top mounting. For machine tool coolant, deionized water, and process liquid applications.

Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Tank Top Installation

MTR installs directly on the tank lid — no pipe supports, no baseplate, no inline piping modifications. Ready to run in the space the tank already occupies.

Stainless Steel Throughout

All wetted parts in stainless steel. No corrosion from coolants, deionized water, cutting fluids, or mild process chemicals.

Multistage for High Head in Small Diameter

Multiple stages in a 4" or 6" diameter column provide the head of a much larger pump. Ideal where vertical space exists but floor space is limited.

Wide Flow and Head Range

MTR series covers 0.5 to 16 m³/h flow and up to 235 m head. Confirms correct model for your system requirements.

MTRE Variable Speed Option

MTRE adds an integrated frequency converter for constant pressure control. Same tank top installation, no external VFD required.

Genuine Grundfos Parts Available

As an authorized Grundfos distributor, PumpStop stocks and can source MTR repair kits, mechanical seals, and service components.

Model Information — 98941986
Series: MTR
Technical Specifications
Model Number 98941986
Product Series MTR
Series Description Submersible Multistage Pump — Tank Top
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. MTR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — MTR Series
✓ Product Data Sheet — 98941986
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5712603980966
Chambers 4
Code for shaft seal HUUV
Connect code WB
Connection 1 1/4 inch
Curve tolerance ISO9906:2012 3B
Flange size for motor 56C
Frequency converter NONE
Gross weight 32.9 lb
Immersion depth 10.9 in
Impeller Stainless steel
Impellers 1
Liquid temperature range 14 .. 194 °F
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 56C
Motor No N
Motor standard NEMA
Net weight 26.1 lb
Number of reduced-diameter impellers 1
Pump speed on which pump data are based 3470 rpm
Pump version A
Rated flow 44 US gpm
Rated head 48.56 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Size of outlet connection 1 1/4 inch
Standard NEMA
Suitable for 50/60 Hz N
Terminal box position 6
Type of connection NPT(F)
Version A

Motor Curves

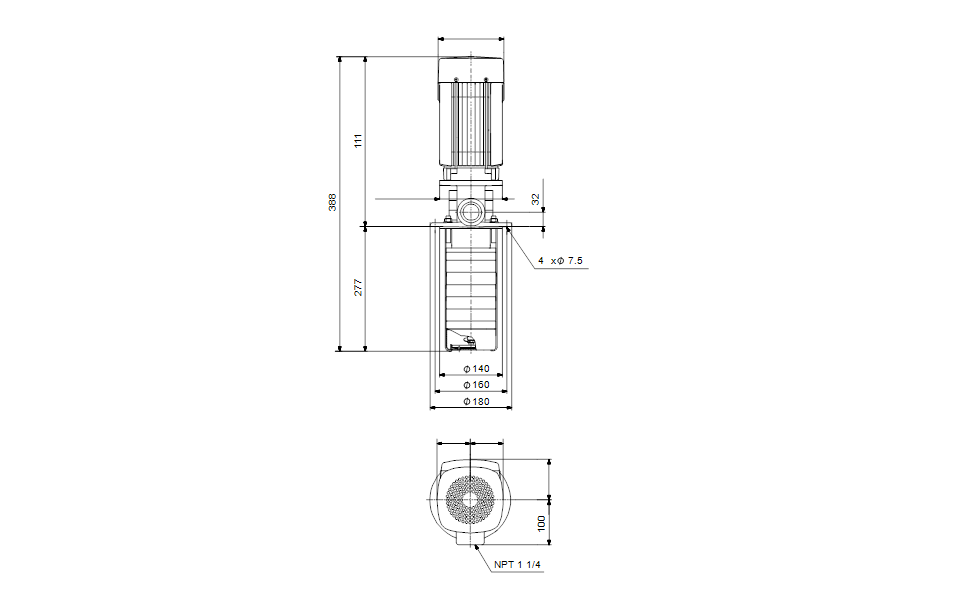

Dimensional Drawing
