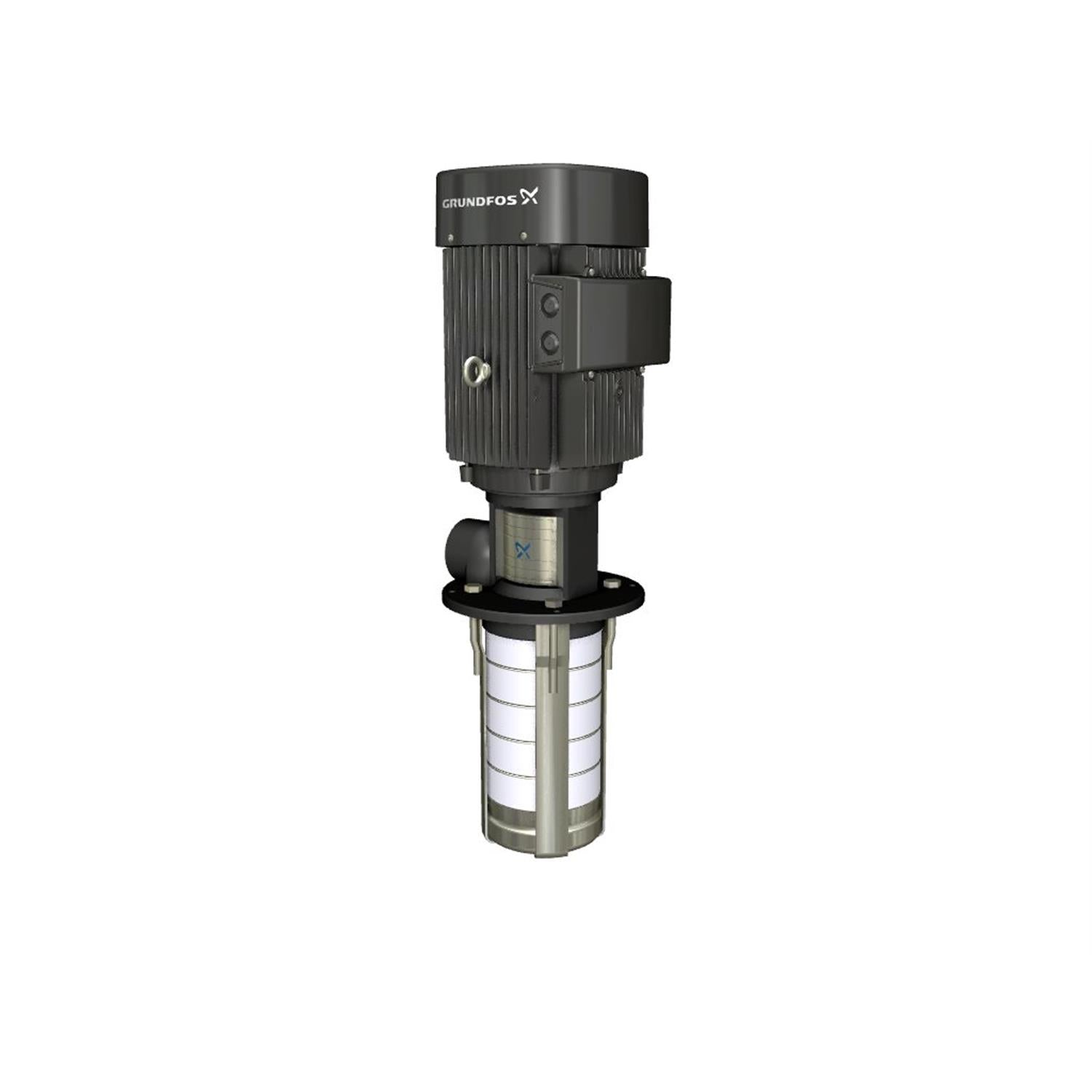

Grundfos 99575726 - MTR 8-22/2-1 A-WB-A-HUUV

GRUNDFOSSKU: 99575726

Price:
Sale price$3,287.50
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99575726 - MTR 8-22/2-1 A-WB-A-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713831310747
Material Pricing Group 32
Material code A
Immersion depth 30 in
Max pressure at stated temp 363 psi / 194 °F
Maximum operating pressure 25 bar
Type of connection NPT(F)
Flange size for motor 56C
Size of outlet connection 1 1/4 inch
Connect code WB
Liquid temperature range 14 .. 194 °F
Net weight 27.4 lb
Gross weight 35.4 lb
Motor No N
Minimum efficiency index, MEI ≥ 0.7
Frequency converter NONE
Terminal box position 6
Pump speed on which pump data are based 3470 rpm
Rated flow 44 US gpm
Model A
Version A
Motor 56C
Chambers 22
Motor standard NEMA
Rated head 48.56 ft
Curve tolerance ISO9906:2012 3B
Impellers 1
Suitable for 50/60 Hz N
Connection 1 1/4 inch
Impeller Stainless steel
Code for shaft seal HUUV
Number of reduced-diameter impellers 1
Standard NEMA
Pump version A

Motor Curves

Dimensional Drawing
