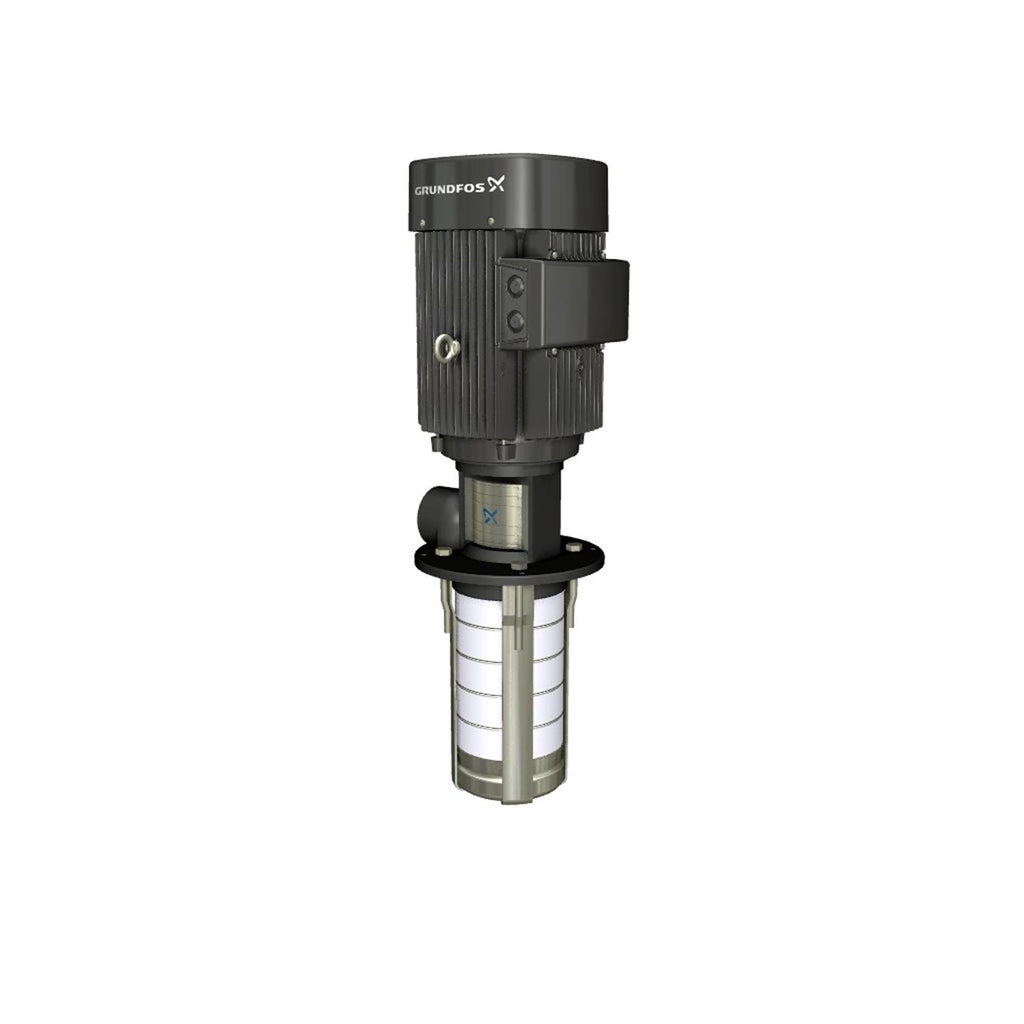

Grundfos 98912868 - MTR 8-2/2 A-WB-A-HUUV | Vertical | Immersible | Multistage

Save $1,011.44
GRUNDFOSSKU: 98912868

Price:
Sale price$1,140.56 Regular price$2,152.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 98912868 MTR 8-2/2 A-WB-A-HUUV is a vertical, immersible multistage pump assembly designed for industrial service and maintenance applications. It is suited for technicians and facilities teams needing reliable replacement units or service-special components.

Key features

  • Vertical, immersible multistage configuration for compact installation and deep-well or tank-mounted service
  • Service-special designation and compatibility with MTR/MTA/MTS series parts for streamlined maintenance
  • Robust construction offering consistent pressure handling and reduced downtime for routine operations

Applications

Typical uses include industrial fluid transfer, vertical well pumping, tank or sump immersion tasks, and repair or overhaul projects where Grundfos service parts are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98912868

EAN 5712603464053
Chambers 2
Code for shaft seal HUUV
Connect code WB
Connection 1 1/4 inch
Curve tolerance ISO9906:2012 3B
Flange size for motor 56C
Frequency converter NONE
Gross weight 32.7 lb
Immersion depth 8.78 in
Impeller Stainless steel
Impellers 0
Liquid temperature range 14 .. 194 °F
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 56C
Motor No N
Motor standard NEMA
Net weight 25.9 lb
Number of reduced-diameter impellers 0
Pump speed on which pump data are based 3470 rpm
Pump version A
Rated flow 44 US gpm
Rated head 69.56 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Size of outlet connection 1 1/4 inch
Standard NEMA
Suitable for 50/60 Hz N
Terminal box position 6
Type of connection NPT(F)
Version A

Motor Curves

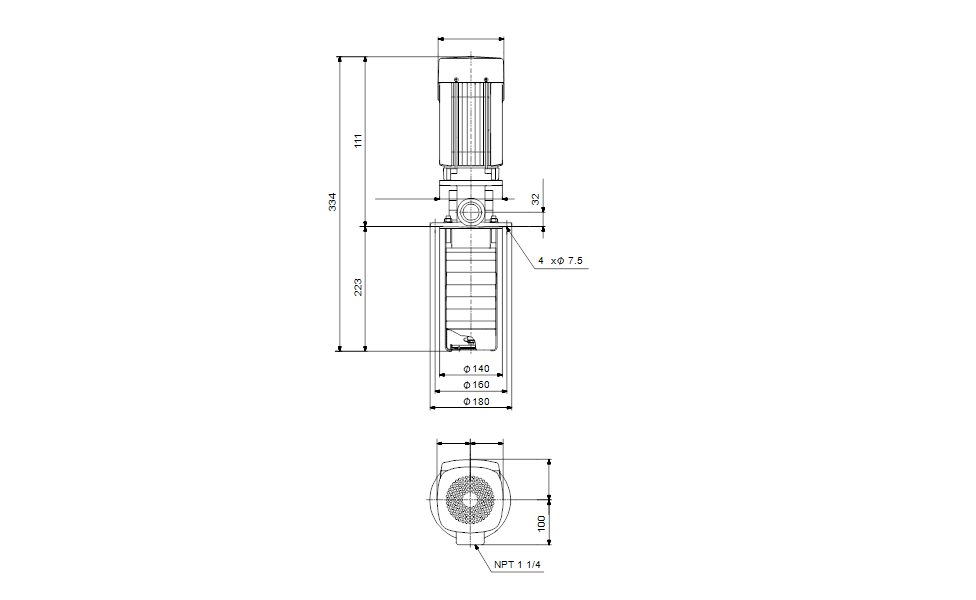

Dimensional Drawing
