Image shown may not be actual product

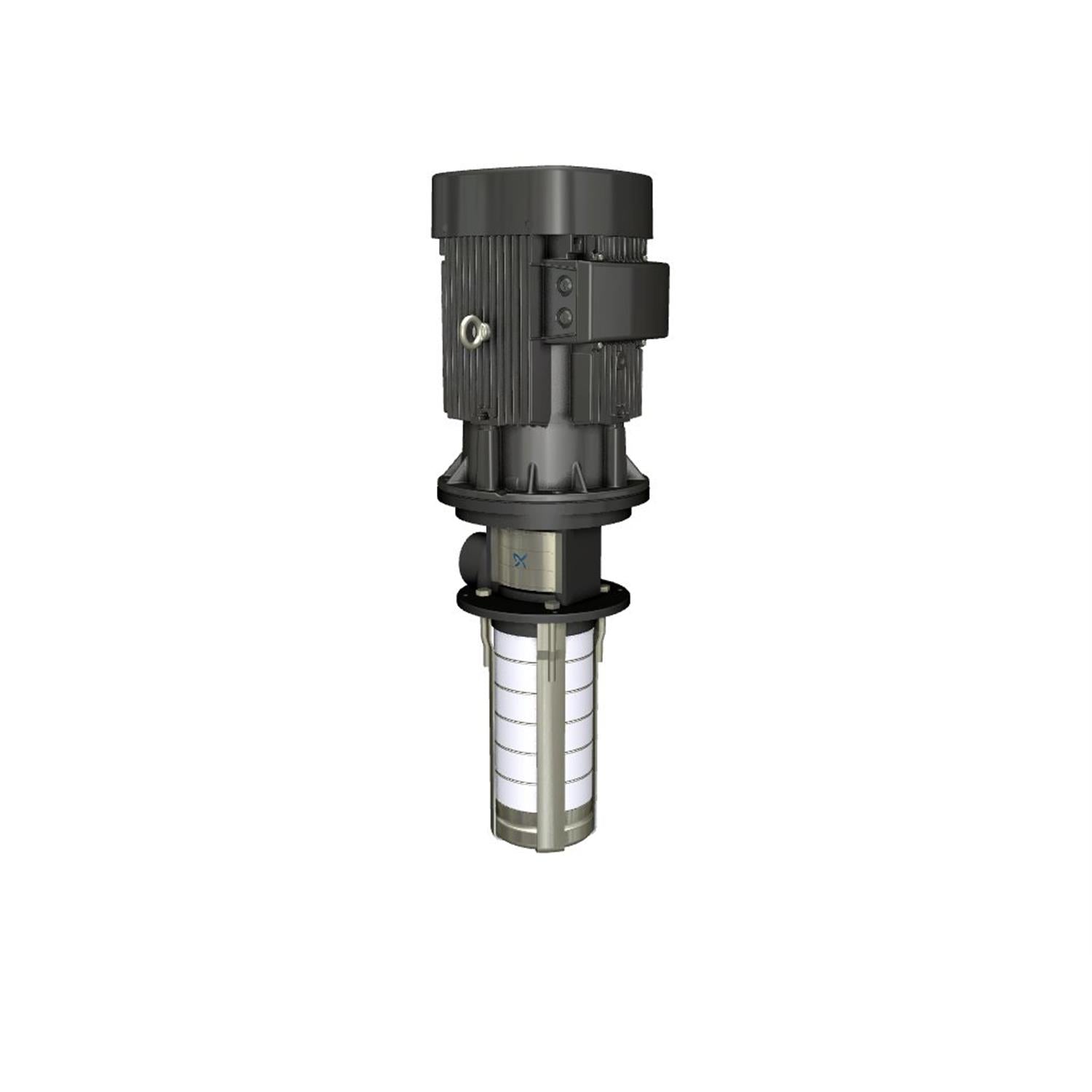

![Grundfos 99575720 - MTR 8-19/9 A-WB-A-HUUV]()
![Grundfos 99575720 - MTR 8-19/9 A-WB-A-HUUV]()
![Grundfos 99575720 - MTR 8-19/9 A-WB-A-HUUV]()
![Grundfos 99575720 - MTR 8-19/9 A-WB-A-HUUV]()
![Grundfos 99575720 - MTR 8-19/9 A-WB-A-HUUV]()
![Grundfos 99575720 - MTR 8-19/9 A-WB-A-HUUV]()
Description
Grundfos 99575720 - MTR 8-19/9 A-WB-A-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713831310679
Material Pricing Group
32
Motor efficiency at full load 1
89.5-89.5 %
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
140 °F
Material code
A
Immersion depth
26.9 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.89-0.86
Selected liquid temperature
68 °F
Type of connection
NPT(F)
Rated voltage
3 x 208-230YY/460Y V
Flange size for motor
213TC
Pumped liquid
Water
Size of outlet connection
1 1/4 inch
Starting current
1020-1480 %
Connect code
WB
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
88.1-86.7 %
Built-in motor protection
PTC
Net weight
146.0 lb
Number of poles
2
Rated speed
3490-3520 rpm
Gross weight
196.0 lb
Rated power - P2
5.5 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Motor efficiency at 3/4 load
89.6-89.1 %
Rated current
19
Service factor
1.15
Cable gland entry
2xPG 21 blind plug
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
132DA
Terminal box position
6
Pump speed on which pump data are based
3530 rpm
Approvals
CE
Rated flow
44 US gpm
Model
A
Version
A
Motor
213TC
Chambers
19
Motor standard
NEMA
Rated head
344.2 ft
Type
132DA
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
1 1/4 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
0
Standard
NEMA
Pump version
A
Motor Curves
