Grundfos 98938104 - MTR 8-10/4-1 A-WB-A-HUUV | Multistage | Immersible | SelfPriming | Centrifugal | Vertical Installation | Vertical

Save $2,051.08
GRUNDFOSSKU: 98938104

Price:
Sale price$2,312.92 Regular price$4,364.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

MTR 8-10/4-1 A-WB-A-HUUV | Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc. The pump head and base are in cast iron – all other wetted parts are in stainless steel. The pump has the following characteristics: Dimensions according to DIN 5440.
Impellers, intermediate chambers and spline shaft are made of Stainless steel.
Mechanical shaft seal according to EN 12756.
Power transmission via sintered metal split coupling. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. The pump is fitted with a 3-phase, fan-cooled asynchronous motor. Immersion depth:

EAN 5712603897967
Approvals CE
Built-in motor protection NONE
Cable gland entry 2xPG 16 blind plug
Chambers 10
Code for shaft seal HUUV
Connect code WB
Connection 1 1/4 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 182TC
Frequency converter NONE
Gross weight 92.7 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Immersion depth 17.3 in
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 182TC
Motor efficiency at 1/2 load 91.4-90.1 %
Motor efficiency at 3/4 load 91.1-90.9 %
Motor efficiency at full load 1 86.5-86.5 %
Motor standard NEMA
Motor type 90HA
Net weight 84.8 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power factor 1 0.85-0.82
Pump speed on which pump data are based 3510 rpm
Pump version A
Pumped liquid Water
Rated current 8
Rated flow 44 US gpm
Rated head 127 ft
Rated power - P2 2.2 kW
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection 1 1/4 inch
Standard NEMA
Starting current 850-970 %
Suitable for 50/60 Hz N
Terminal box position 6
Type 90HA
Type of connection NPT(F)
Version A

Motor Curves

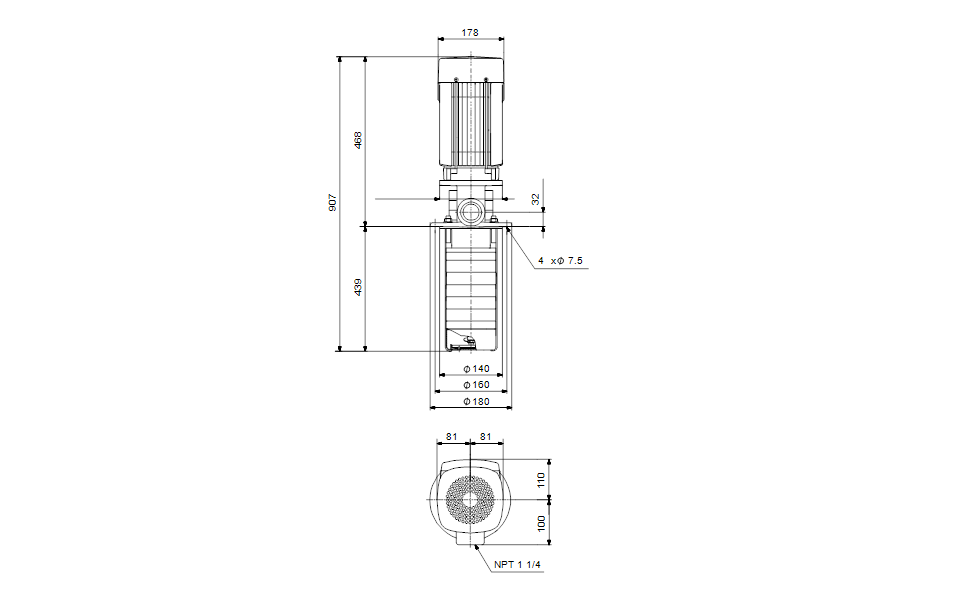

Dimensional Drawing

DWiring Diagram
