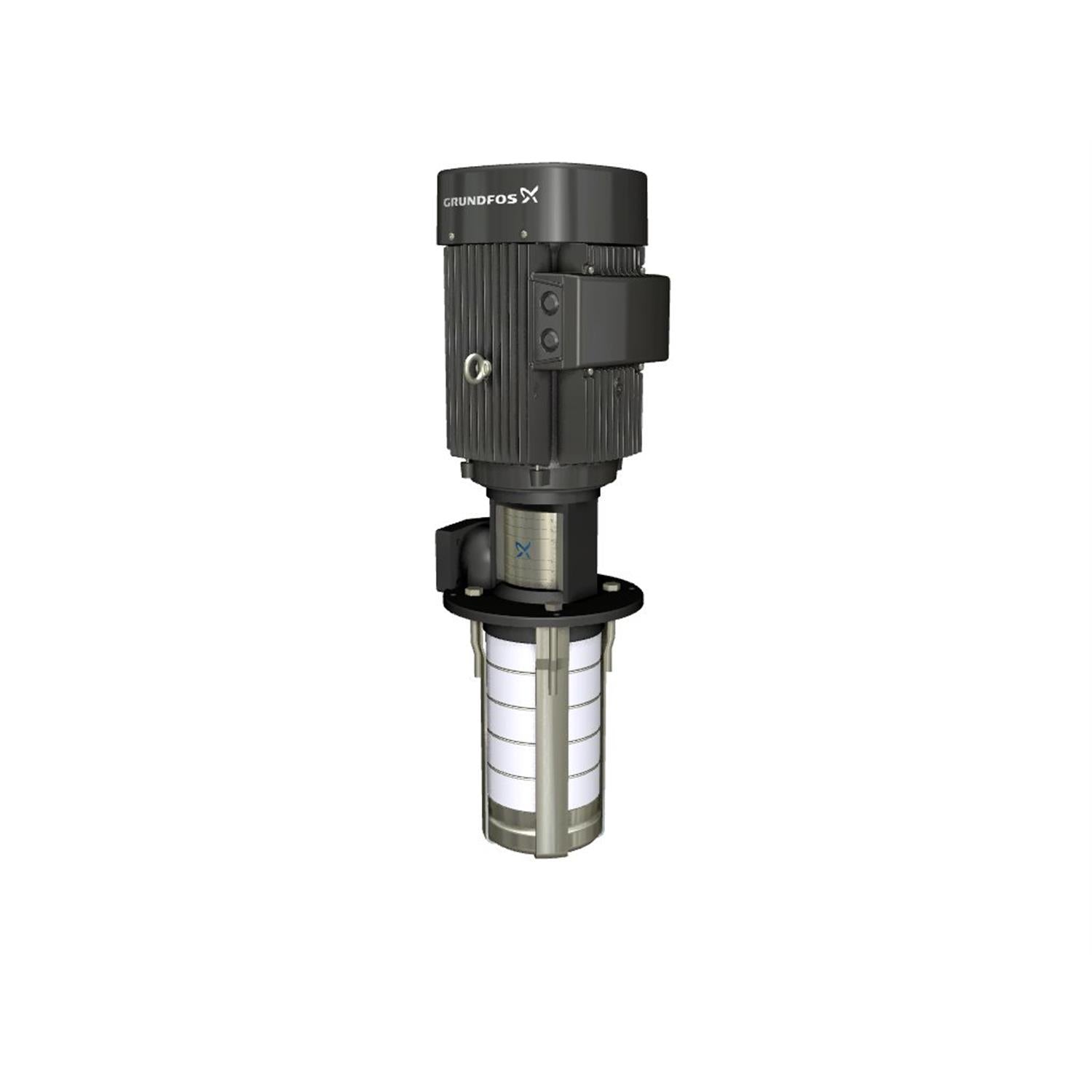

![Grundfos 99892429 - MTR 8-10/3-1 A-M-A-HUUV]()
![Grundfos 99892429 - MTR 8-10/3-1 A-M-A-HUUV]()
![Grundfos 99892429 - MTR 8-10/3-1 A-M-A-HUUV]()
![Grundfos 99892429 - MTR 8-10/3-1 A-M-A-HUUV]()
![Grundfos 99892429 - MTR 8-10/3-1 A-M-A-HUUV]()
![Grundfos 99892429 - MTR 8-10/3-1 A-M-A-HUUV]()
Description
Grundfos 99892429 - MTR 8-10/3-1 A-M-A-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713835815620
Material Pricing Group
32
Motor efficiency at full load 1
85.5-85.5 %
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
140 °F
Material code
A
Immersion depth
17.3 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.89-0.77
Selected liquid temperature
68 °F
Type of connection
Square / Rp
Rated voltage
3 x 200-255D/346-440Y V
Flange size for motor
FT115
Pumped liquid
Water
Size of outlet connection
1 1/4 inch
Starting current
880-1100 %
Connect code
M
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
88.5-86.3 %
Built-in motor protection
NONE
Net weight
65.0 lb
Number of poles
2
Rated speed
3490-3530 rpm
Gross weight
72.9 lb
Rated power - P2
1.5 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Motor efficiency at 3/4 load
88.9-88.5 %
Rated current
5
Cable gland entry
4xM20 knock out
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
90CD
Terminal box position
6
Pump speed on which pump data are based
3510 rpm
Approvals
CE
Rated flow
44 US gpm
Model
A
Version
A
Motor
FT115
Chambers
10
Motor standard
IEC
Rated head
85.31 ft
Type
90CD
Curve tolerance
ISO9906:2012 3B
Impellers
1
Suitable for 50/60 Hz
N
Connection
1 1/4 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
1
Standard
IEC
Pump version
A
