Grundfos 98921220 - MTR 8-10/3-1 A-WB-A-HUUV | Multistage | Immersible | SelfPriming | Centrifugal | Vertical Installation | Vertical

GrundfosSKU: 98921220

Price:
Sale price$4,608.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
98921220 · Submersible Multistage Pump — Tank Top
MTR2HP208-230YY/460YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

The Grundfos 98921220 (MTR 8-10/3-1 A-WB-A-HUUV) is a Submersible Multistage Pump — Tank Top. Vertical multistage pump for tank top mounting. For machine tool coolant, deionized water, and process liquid applications. Nominal performance: 44US gpm at 85.31ft. Rated 208-230YY/460YV, 3.0-Phase, 60 Hz.

Power
2HP
Voltage
208-230YY/460YV
Phase
3.0-Phase
Max Flow
44US gpm
Max Head
85.31ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Tank Top Installation

MTR installs directly on the tank lid — no pipe supports, no baseplate, no inline piping modifications. Ready to run in the space the tank already occupies.

Stainless Steel Throughout

All wetted parts in stainless steel. No corrosion from coolants, deionized water, cutting fluids, or mild process chemicals.

Multistage for High Head in Small Diameter

Multiple stages in a 4" or 6" diameter column provide the head of a much larger pump. Ideal where vertical space exists but floor space is limited.

Wide Flow and Head Range

MTR series covers 0.5 to 16 m³/h flow and up to 235 m head. Confirms correct model for your system requirements.

MTRE Variable Speed Option

MTRE adds an integrated frequency converter for constant pressure control. Same tank top installation, no external VFD required.

Genuine Grundfos Parts Available

As an authorized Grundfos distributor, PumpStop stocks and can source MTR repair kits, mechanical seals, and service components.

Model Information — 98921220
Series: MTR
Impeller Material: Stainless steel
Shaft Seal: HUUV
Technical Specifications
Model Number 98921220
Product Series MTR
Series Description Submersible Multistage Pump — Tank Top
Power 2HP
Voltage 208-230YY/460YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3500-3520rpm
Pump Speed 3510rpm
Full Load Current 6,00-5,80/2,90A
Motor Type 90GB
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 85.5-85.5%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 44US gpm
Nominal Head 85.31ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Max Ambient Temperature 140°F
Outlet Connection 1 1/4inch
Pipe Standard NPT(F)
Impeller Material Stainless steel
Shaft Seal HUUV
Approvals / Certifications CE, CURUS, CC122B, EAC
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230YY/460YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. MTR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — MTR Series
✓ Product Data Sheet — 98921220
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5711490281798
Approvals CE
Built-in motor protection NONE
Cable gland entry 2xPG 16 blind plug
Chambers 10
Code for shaft seal HUUV
Connect code WB
Connection 1 1/4 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 56C
Frequency converter NONE
Gross weight 69.4 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Immersion depth 17.3 in
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 56C
Motor efficiency at 1/2 load 86.3-85.0 %
Motor efficiency at 3/4 load 87.4-86.8 %
Motor efficiency at full load 1 85.5-85.5 %
Motor standard NEMA
Motor type 90GB
Net weight 61.4 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power factor 1 0.81-0.78
Pump speed on which pump data are based 3510 rpm
Pump version A
Pumped liquid Water
Rated current 6
Rated flow 44 US gpm
Rated head 85.31 ft
Rated power - P2 1.5 kW
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time 1 Available on 10/12/2023 Plant: Fresno  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection 1 1/4 inch
Standard NEMA
Starting current 800-910 %
Suitable for 50/60 Hz N
Terminal box position 6
Type 90GB
Type of connection NPT(F)
Version A

Motor Curves

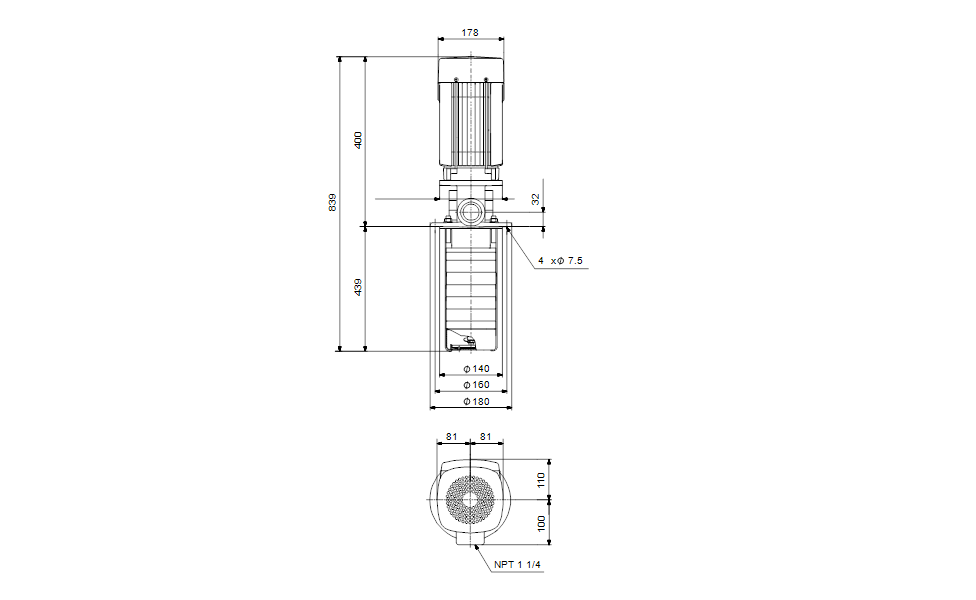

Dimensional Drawing

DWiring Diagram
