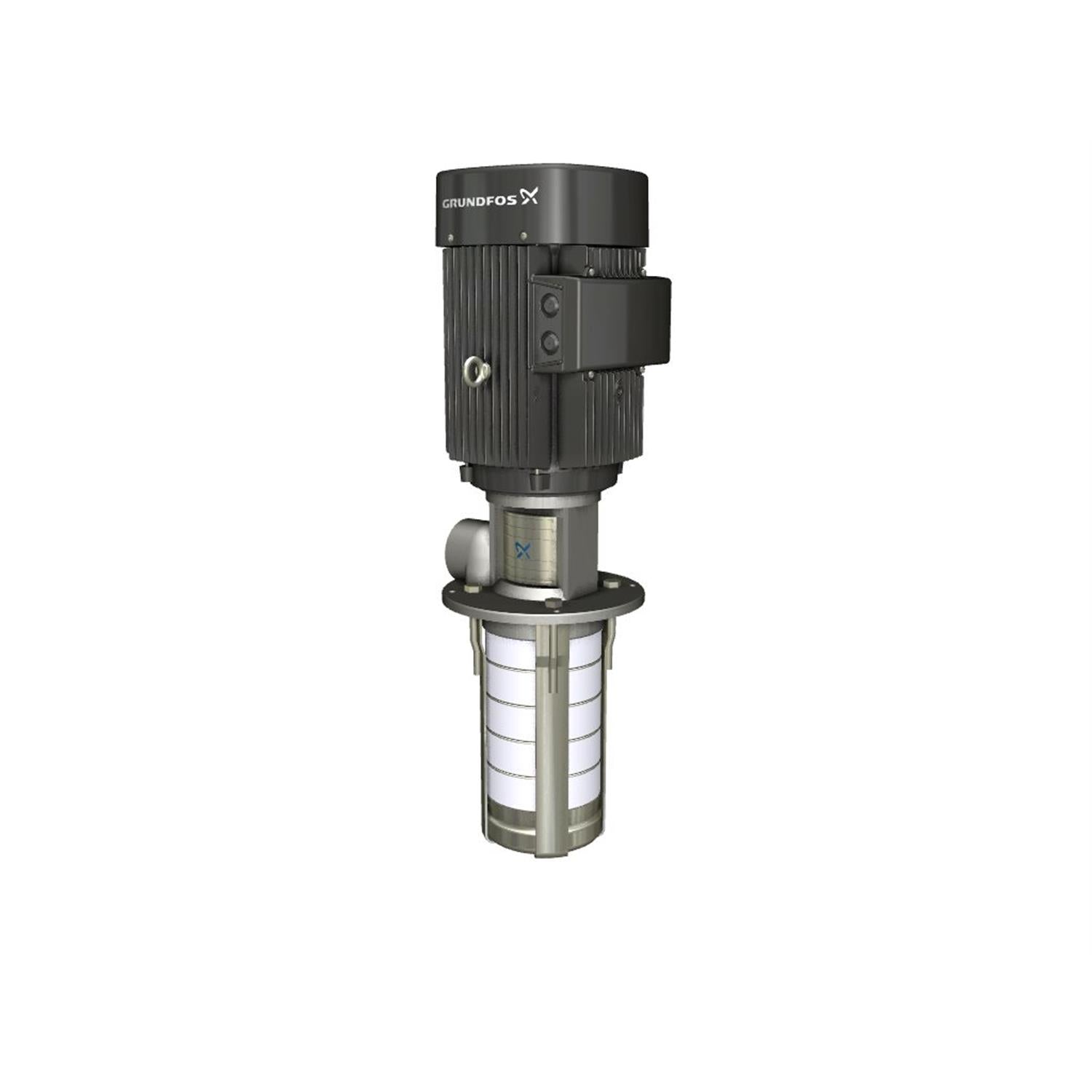

![Grundfos 99560007 - MTR 8-10/1 A-WB-I-HUUV]()
![Grundfos 99560007 - MTR 8-10/1 A-WB-I-HUUV]()
![Grundfos 99560007 - MTR 8-10/1 A-WB-I-HUUV]()
![Grundfos 99560007 - MTR 8-10/1 A-WB-I-HUUV]()
![Grundfos 99560007 - MTR 8-10/1 A-WB-I-HUUV]()
![Grundfos 99560007 - MTR 8-10/1 A-WB-I-HUUV]()
Description
Grundfos 99560007 - MTR 8-10/1 A-WB-I-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713831043287
Material Pricing Group
32
Motor efficiency at full load 1
78.9-80.1 %
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
140 °F
Material code
I
Immersion depth
17.3 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.84-0.78
Selected liquid temperature
68 °F
Type of connection
NPT(F)
Rated voltage
3 x 208-230YY/460Y V
Flange size for motor
56C
Pumped liquid
Water
Size of outlet connection
1 1/4 inch
Starting current
590-650 %
Connect code
WB
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
77.3-75.2 %
Built-in motor protection
NONE
Net weight
45.7 lb
Number of poles
2
Rated speed
3430-3460 rpm
Gross weight
53.6 lb
Rated power - P2
0.55 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Motor efficiency at 3/4 load
79.9-79.3 %
Rated current
2
Service factor
1.25
Cable gland entry
2xPG 16 blind plug
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
71BA
Terminal box position
6
Pump speed on which pump data are based
3470 rpm
Approvals
CE
Rated flow
44 US gpm
Model
A
Version
A
Motor
56C
Chambers
10
Motor standard
NEMA
Rated head
31.83 ft
Type
71BA
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
1 1/4 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
0
Standard
NEMA
Pump version
A
Motor Curves
