Grundfos 96428924 - MTR 64-3/3 A-G-A-HUUV | Vertical | Immersible | Multistage

GrundfosSKU: 96428924

Price:
Sale price$15,098.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96428924 · Submersible Multistage Pump — Tank Top
MTR60 HzStainless steel

The Grundfos 96428924 (MTR 64-3/3 A-G-A-HUUV) is a Submersible Multistage Pump — Tank Top. Vertical multistage pump for tank top mounting. For machine tool coolant, deionized water, and process liquid applications. Applications include Machining.

Frequency
60 Hz
Max Pressure
PN25bar
Max Fluid Temp
194°F
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Tank Top Installation

MTR installs directly on the tank lid — no pipe supports, no baseplate, no inline piping modifications. Ready to run in the space the tank already occupies.

Stainless Steel Throughout

All wetted parts in stainless steel. No corrosion from coolants, deionized water, cutting fluids, or mild process chemicals.

Multistage for High Head in Small Diameter

Multiple stages in a 4" or 6" diameter column provide the head of a much larger pump. Ideal where vertical space exists but floor space is limited.

Wide Flow and Head Range

MTR series covers 0.5 to 16 m³/h flow and up to 235 m head. Confirms correct model for your system requirements.

MTRE Variable Speed Option

MTRE adds an integrated frequency converter for constant pressure control. Same tank top installation, no external VFD required.

Genuine Grundfos Parts Available

As an authorized Grundfos distributor, PumpStop stocks and can source MTR repair kits, mechanical seals, and service components.

Model Information — 96428924
Series: MTR
Impeller Material: Stainless steel
Shaft Seal: HUUV
Flange Rating: CLASS 150
Technical Specifications
Model Number 96428924
Product Series MTR
Series Description Submersible Multistage Pump — Tank Top
Frequency 60 Hz
Max Operating Pressure PN25bar
Max Fluid Temperature 194°F
Outlet Connection 3"inch
Pipe Pressure Rating CLASS 150
Pipe Standard ANSI
Impeller Material Stainless steel
Shaft Seal HUUV
Applications
Machining
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature 194°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. MTR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — MTR Series
✓ Product Data Sheet — 96428924
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700392883216
Chambers 3
Code for shaft seal HUUV
Connect code G
Connection CLASS 150
Density 998.2 kg/m³
Flange size for motor 284TC
Gross weight 76.5 kg
Impeller Stainless steel
Impellers 3
Liquid temperature range -10 .. 90 °C
Material code A
Material Pricing Group 32
Maximum operating pressure PN25 bar
Model A
Motor 284TC
Net weight 55.0 kg
Pressure rating for connection CLASS 150
Pump version A
Pumped liquid Emulsion
Real Time 1 Available on 10/13/2023 Plant: Fresno  Update with real time availability and Net price
Sales region Namreg
Selected liquid temperature 20 °C
Size of outlet connection 3" inch
Type of connection ANSI
Version A

Motor Curves

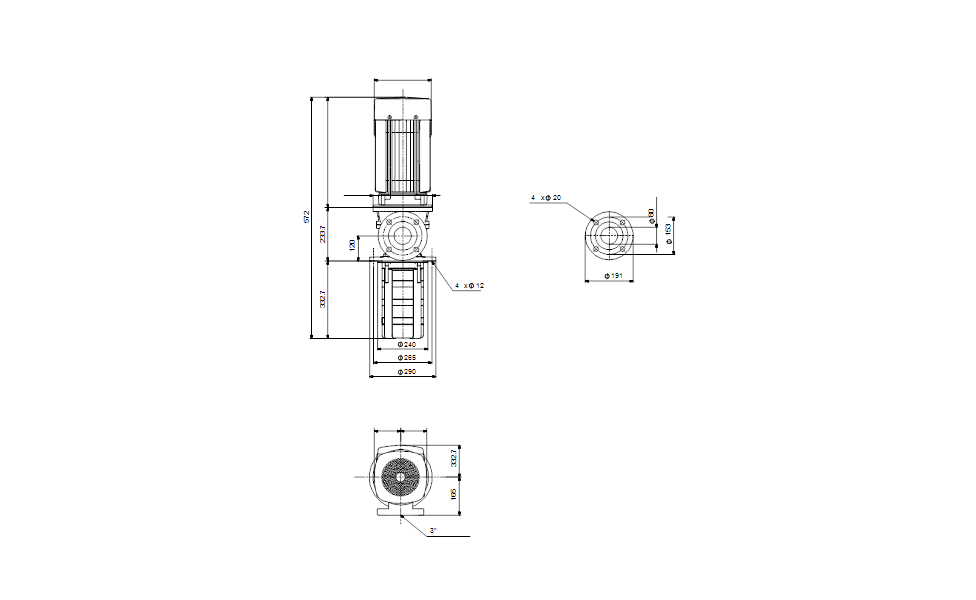

Dimensional Drawing
