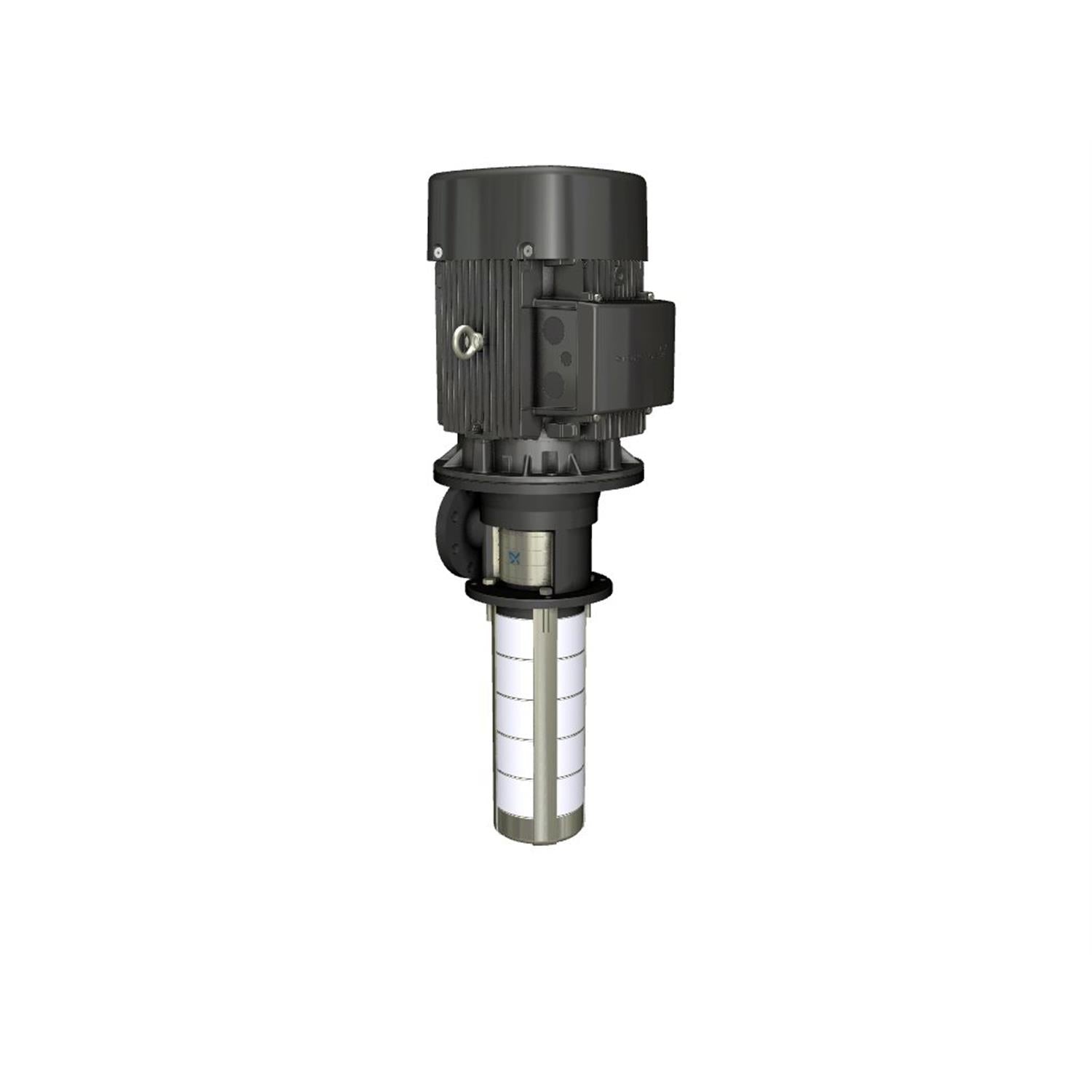

![Grundfos 99556807 - MTR 64-12/2-2 A-G-A-HUUV]()
![Grundfos 99556807 - MTR 64-12/2-2 A-G-A-HUUV]()
![Grundfos 99556807 - MTR 64-12/2-2 A-G-A-HUUV]()
![Grundfos 99556807 - MTR 64-12/2-2 A-G-A-HUUV]()
![Grundfos 99556807 - MTR 64-12/2-2 A-G-A-HUUV]()
![Grundfos 99556807 - MTR 64-12/2-2 A-G-A-HUUV]()
Description
Grundfos 99556807 - MTR 64-12/2-2 A-G-A-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713830991442
Material Pricing Group
32
Motor efficiency at full load 1
90.5-91.0 %
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
104 °F
Material code
A
Immersion depth
42.3 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.92-0.90
Selected liquid temperature
68 °F
Type of connection
ANSI
Rated voltage
3 x 208-230DD/460D V
Flange size for motor
256TC
Pumped liquid
Water
Size of outlet connection
3 inch
Starting current
610-810 %
Connect code
G
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
93.0-92.5 %
Built-in motor protection
PTC
Net weight
324.0 lb
Number of poles
2
Rated speed
3490-3530 rpm
Gross weight
382.0 lb
Rated power - P2
15 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Motor efficiency at 3/4 load
91.5-92.5 %
Rated current
50
Service factor
1.15
Cable gland entry
2xM20 + 4xM40 knock out
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
160AB
Terminal box position
6
Pump speed on which pump data are based
3497 rpm
Approvals
CE
Rated flow
339 US gpm
Model
B
Version
A
Motor
256TC
Chambers
12
Motor standard
NEMA
Rated head
141.4 ft
Type
160AB
Curve tolerance
ISO9906:2012 3B
Impellers
2
Suitable for 50/60 Hz
N
Connection
3 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
2
Standard
NEMA
Pump version
A
