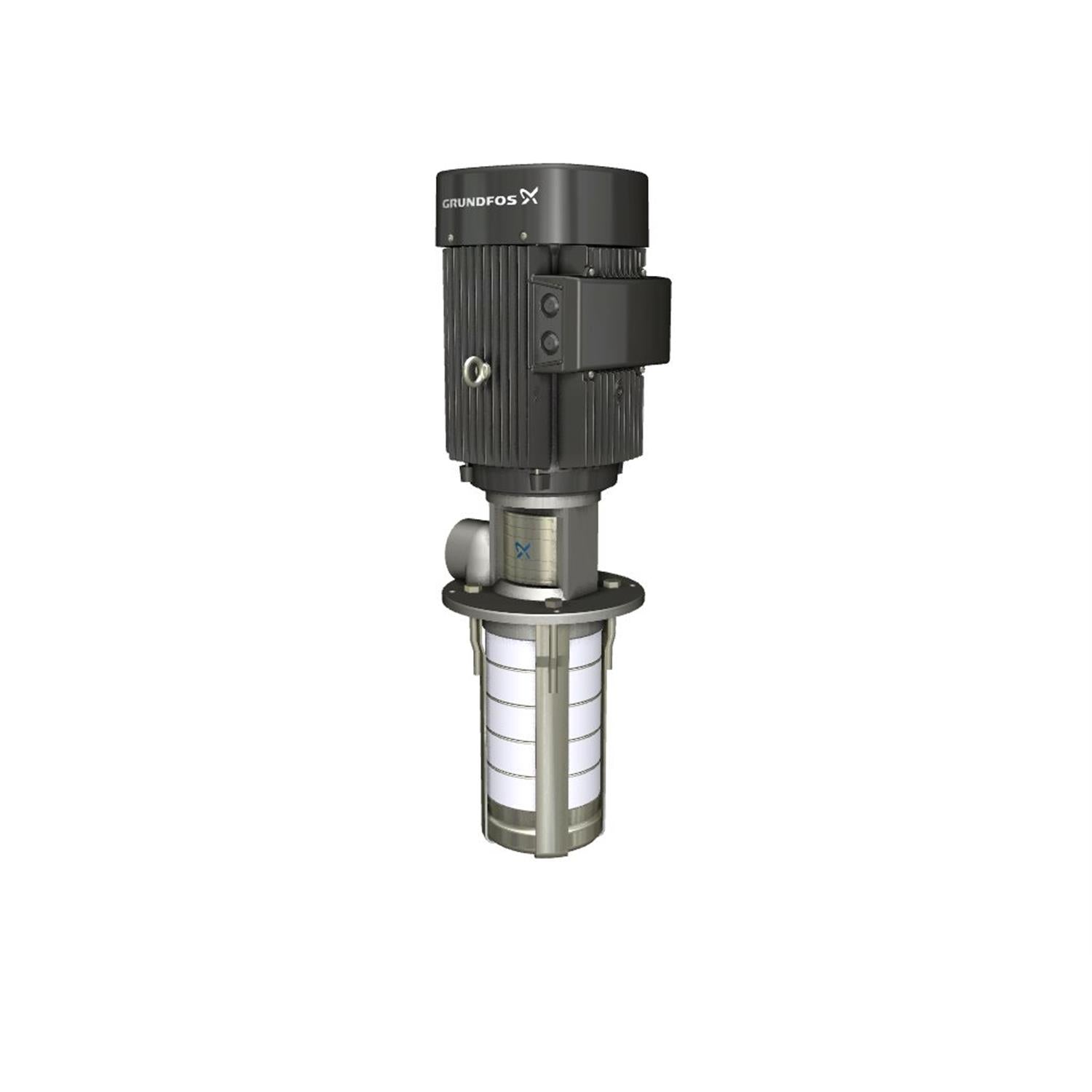

![Grundfos 99701727 - MTR 5-21/16 A-W-I-HQQV]()
![Grundfos 99701727 - MTR 5-21/16 A-W-I-HQQV]()
![Grundfos 99701727 - MTR 5-21/16 A-W-I-HQQV]()
![Grundfos 99701727 - MTR 5-21/16 A-W-I-HQQV]()
![Grundfos 99701727 - MTR 5-21/16 A-W-I-HQQV]()
![Grundfos 99701727 - MTR 5-21/16 A-W-I-HQQV]()
Description
Grundfos 99701727 - MTR 5-21/16 A-W-I-HQQV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713833097493
Material Pricing Group
32
Motor efficiency at full load 1
85.9-85.9 %
IE Efficiency class
IE3
Maximum ambient temperature
140 °F
Material code
I
Immersion depth
26.9 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.86-0.80
Selected liquid temperature
68 °F
Type of connection
G internal thread
Rated voltage
3 x 220-240D/380-415Y V
Flange size for motor
FT115
Pumped liquid
Water
Size of outlet connection
1 1/4 inch
Starting current
840-920 %
Connect code
W
Liquid temperature range
14 .. 194 °F
Mains frequency
50 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
88.0-85.5 %
Built-in motor protection
NONE
Net weight
62.3 lb
Number of poles
2
Rated speed
2890-2910 rpm
Gross weight
71.1 lb
Rated power - P2
2.2 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Motor efficiency at 3/4 load
88.2-87.2 %
Rated current
8.00/4.60 A
Cable gland entry
4xM20 knock out
Minimum efficiency index, MEI ≥
0.57
Frequency converter
NONE
Motor type
90HA
Terminal box position
6
Pump speed on which pump data are based
2899 rpm
Approvals
CE
Rated flow
25.5 US gpm
Model
A
Version
A
Motor
FT115
Chambers
21
Motor standard
IEC
Rated head
261.2 ft
Type
90HA
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
1 1/4 inch
Impeller
Stainless steel
Code for shaft seal
HQQV
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
A
