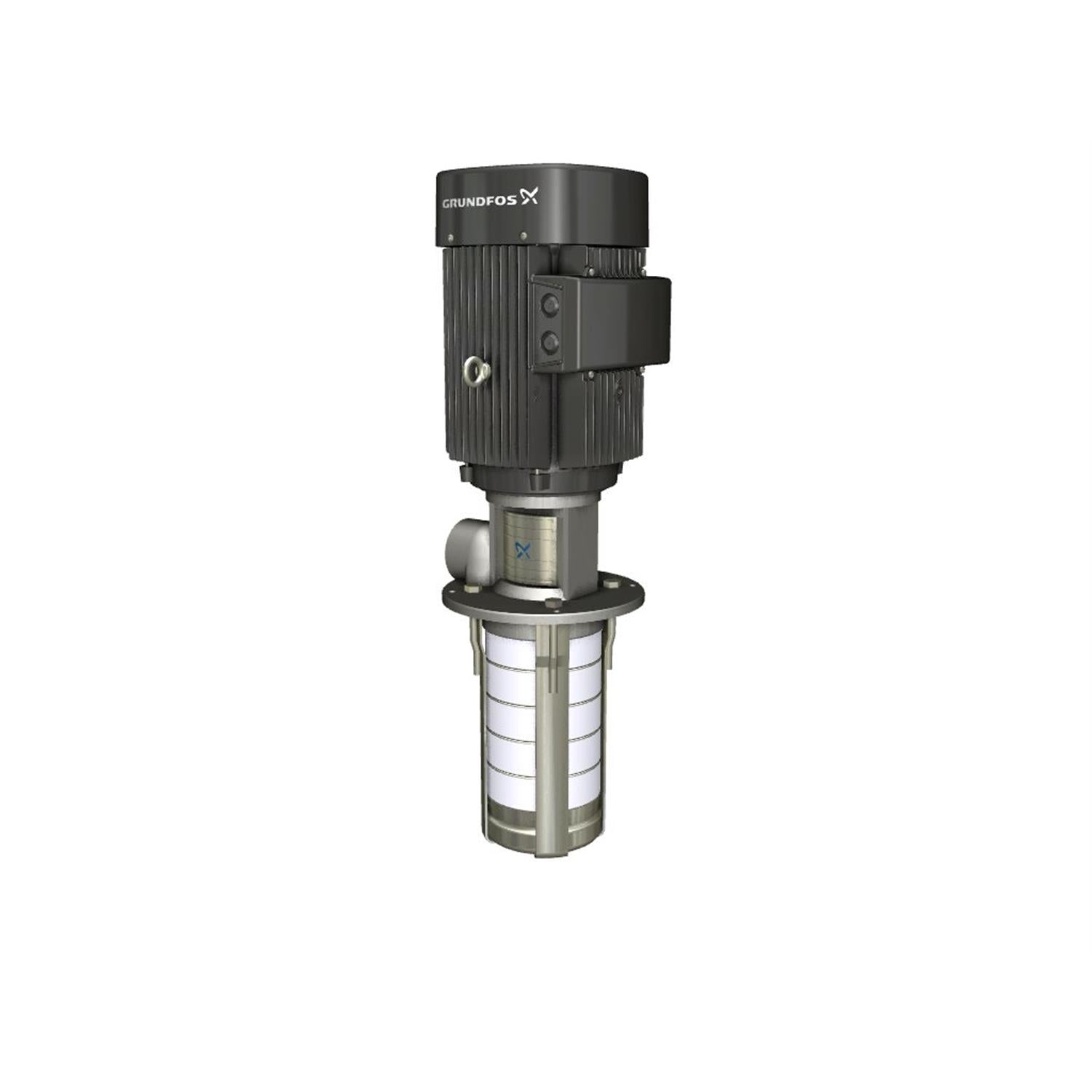

![Grundfos 99845631 - MTR 5-18/8 A-W-I-HUUV]()
![Grundfos 99845631 - MTR 5-18/8 A-W-I-HUUV]()
![Grundfos 99845631 - MTR 5-18/8 A-W-I-HUUV]()
![Grundfos 99845631 - MTR 5-18/8 A-W-I-HUUV]()
![Grundfos 99845631 - MTR 5-18/8 A-W-I-HUUV]()
![Grundfos 99845631 - MTR 5-18/8 A-W-I-HUUV]()
Description
Grundfos 99845631 - MTR 5-18/8 A-W-I-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713835106001
Material Pricing Group
32
Motor efficiency at full load 1
86.5-86.5 %
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
60 °C
Material code
I
Immersion depth
601 mm
Density
998.2 kg/m³
Max pressure at stated temp
25 bar / 90 °C
Maximum operating pressure
25 bar
Power factor 1
0.88-0.80
Selected liquid temperature
20 °C
Type of connection
G internal thread
Rated voltage
3 x 400-480D V
Flange size for motor
FT115
Pumped liquid
Water
Size of outlet connection
1 1/4 inch
Starting current
730-1050 %
Connect code
W
Liquid temperature range
-10 .. 90 °C
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
89.2-86.3 %
Built-in motor protection
NONE
Net weight
28.2 kg
Number of poles
2
Rated speed
3480-3530 rpm
Gross weight
32.2 kg
Rated power - P2
2.2 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Motor efficiency at 3/4 load
89.5-88.5 %
Rated current
4.30-4.00 A
Cable gland entry
4xM20 knock out
Minimum efficiency index, MEI ≥
0.57
Frequency converter
NONE
Motor type
90HA
Terminal box position
6
Pump speed on which pump data are based
3501 rpm
Approvals
CE
Rated flow
6.9 m³/h
Model
A
Version
A
Motor
FT115
Chambers
18
Motor standard
IEC
Rated head
59.4 m
Type
90HA
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
1 1/4 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
A
