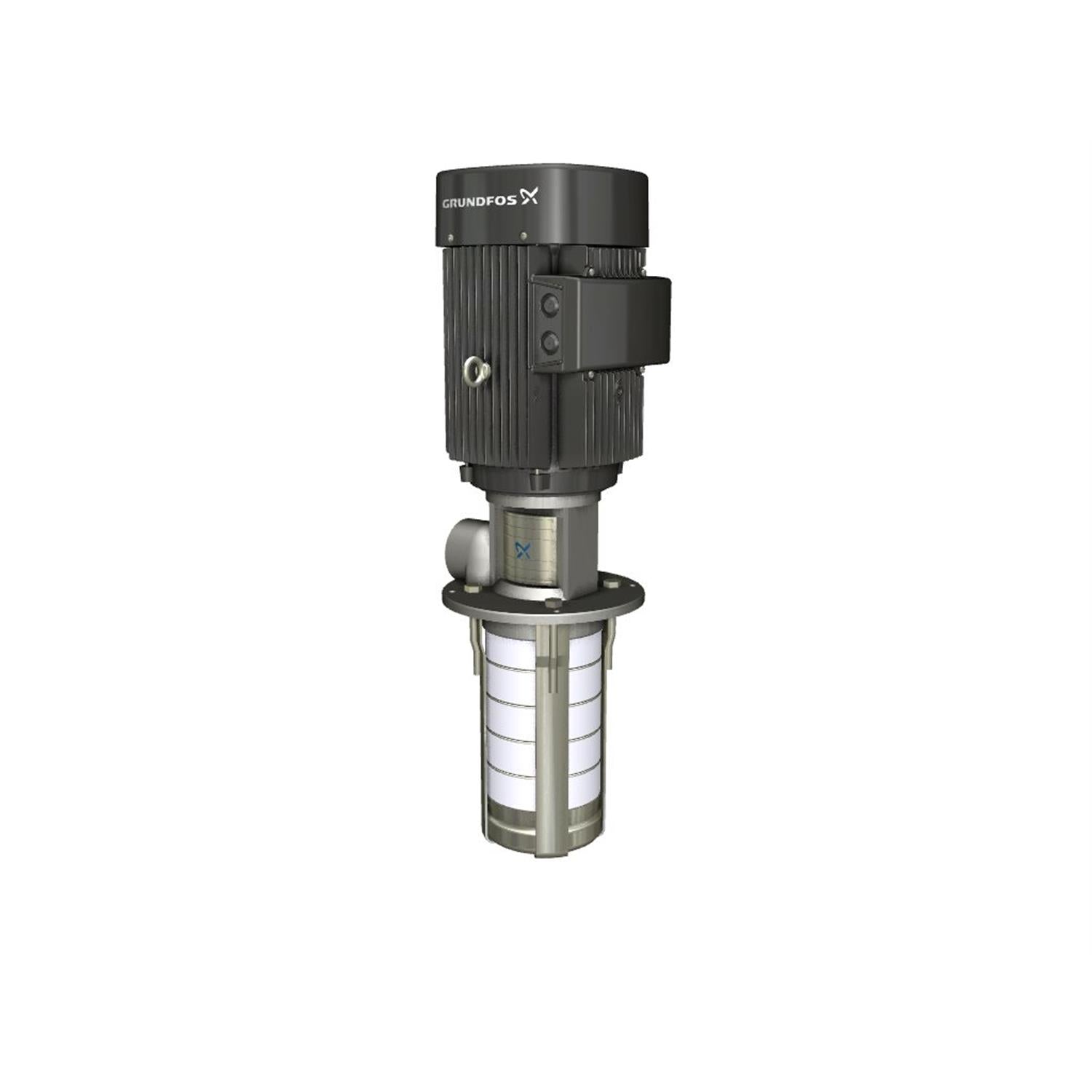

![Grundfos 99875184 - MTR 5-12/12 A-W-I-HUUV]()
![Grundfos 99875184 - MTR 5-12/12 A-W-I-HUUV]()
![Grundfos 99875184 - MTR 5-12/12 A-W-I-HUUV]()
![Grundfos 99875184 - MTR 5-12/12 A-W-I-HUUV]()
Description
MTR 5-12/12 A-W-I-HUUV | Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc. Pump materials in contact with the liquid are in stainless steel. The pump has the following characteristics: Dimensions according to DIN 5440.
Impellers, intermediate chambers and spline shaft are made of Stainless steel.
Mechanical shaft seal according to EN 12756.
Power transmission via sintered metal split coupling. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Immersion depth:
EAN
5713835565013
Material Pricing Group
32
Material code
I
Immersion depth
17.3 in
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Type of connection
G internal thread
Flange size for motor
FT130
Size of outlet connection
1 1/4 inch
Connect code
W
Liquid temperature range
14 .. 194 °F
Net weight
18.0 lb
Gross weight
25.1 lb
Motor No
N
Minimum efficiency index, MEI ≥
0.57
Frequency converter
NONE
Terminal box position
6
Pump speed on which pump data are based
3514 rpm
Rated flow
30.4 US gpm
Model
A
Version
A
Motor
FT130
Chambers
12
Motor standard
IEC
Rated head
293.3 ft
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
1 1/4 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
A
