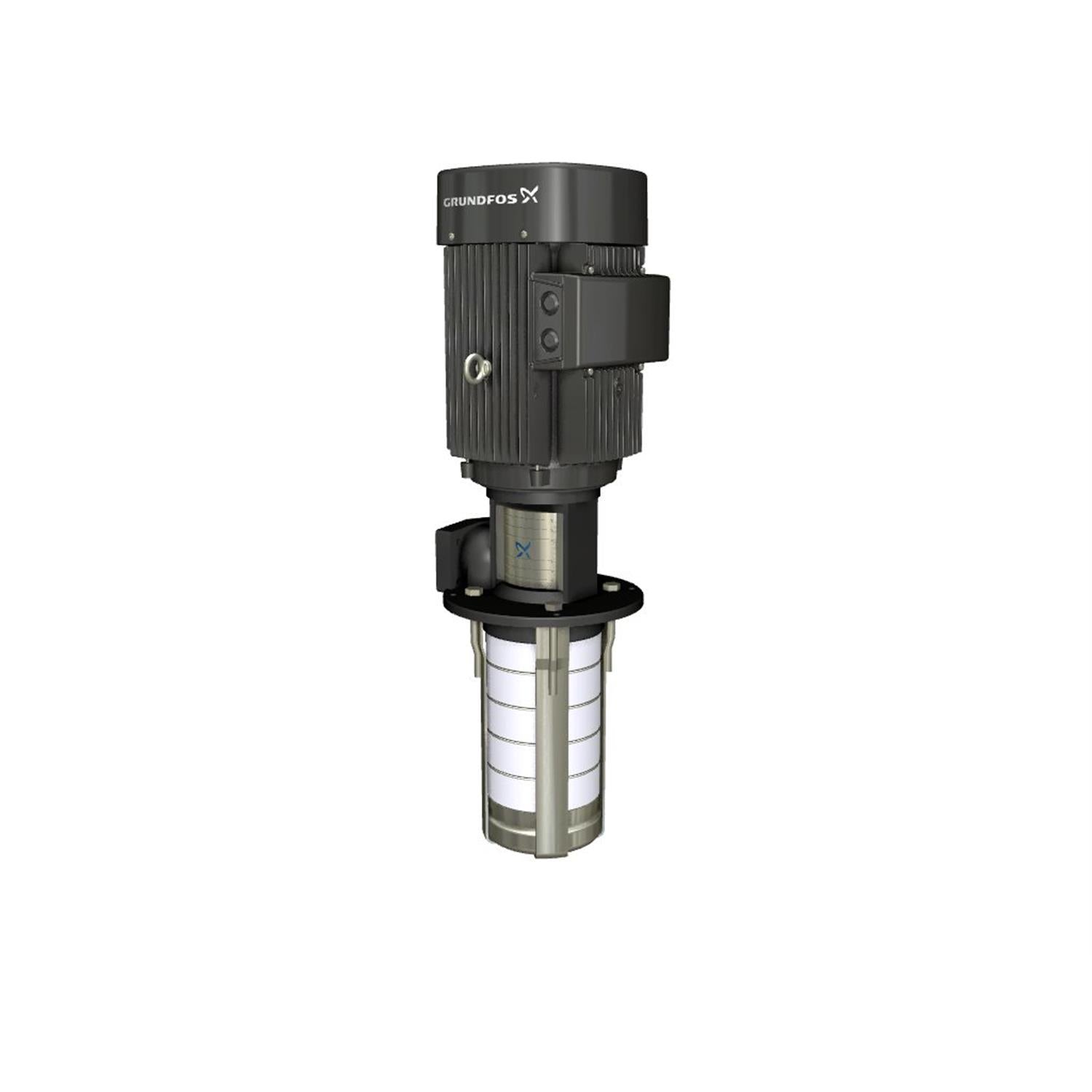

![Grundfos 99075870 - MTR 5-10/4 D-M-A-AQQV]()
![Grundfos 99075870 - MTR 5-10/4 D-M-A-AQQV]()
![Grundfos 99075870 - MTR 5-10/4 D-M-A-AQQV]()
![Grundfos 99075870 - MTR 5-10/4 D-M-A-AQQV]()
![Grundfos 99075870 - MTR 5-10/4 D-M-A-AQQV]()
![Grundfos 99075870 - MTR 5-10/4 D-M-A-AQQV]()
Description
Grundfos 99075870 - MTR 5-10/4 D-M-A-AQQV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5712606273348
Material Pricing Group
6
Approvals
CE
Standard
IEC
Motor efficiency at full load 1
82.5-84.0 %
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
140 °F
Material code
A
Immersion depth
15.2 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.88-0.80
Selected liquid temperature
68 °F
Type of connection
Square / Rp
Rated voltage
3 x 200-255D/346-440Y V
Flange size for motor
FT100
Pumped liquid
Water
Size of outlet connection
1 1/4 inch
Starting current
430-500 %
Connect code
M
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
86.4-85.5 %
Built-in motor protection
NONE
Net weight
42.2 lb
Number of poles
2
Rated speed
3420-3470 rpm
Gross weight
50.1 lb
Rated power - P2
1.1 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Motor efficiency at 3/4 load
86.0-86.5 %
Rated current
4
Cable gland entry
2xM20x1
Minimum efficiency index, MEI ≥
0.57
Frequency converter
NONE
Motor type
80CA
Terminal box position
6
Pump speed on which pump data are based
3463 rpm
Approvals
CE
Rated flow
30.4 US gpm
Model
A
Version
D
Motor
FT100
Chambers
10
Motor standard
IEC
Rated head
93.18 ft
Type
80CA
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
1 1/4 inch
Impeller
Stainless steel
Code for shaft seal
AQQV
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
D
