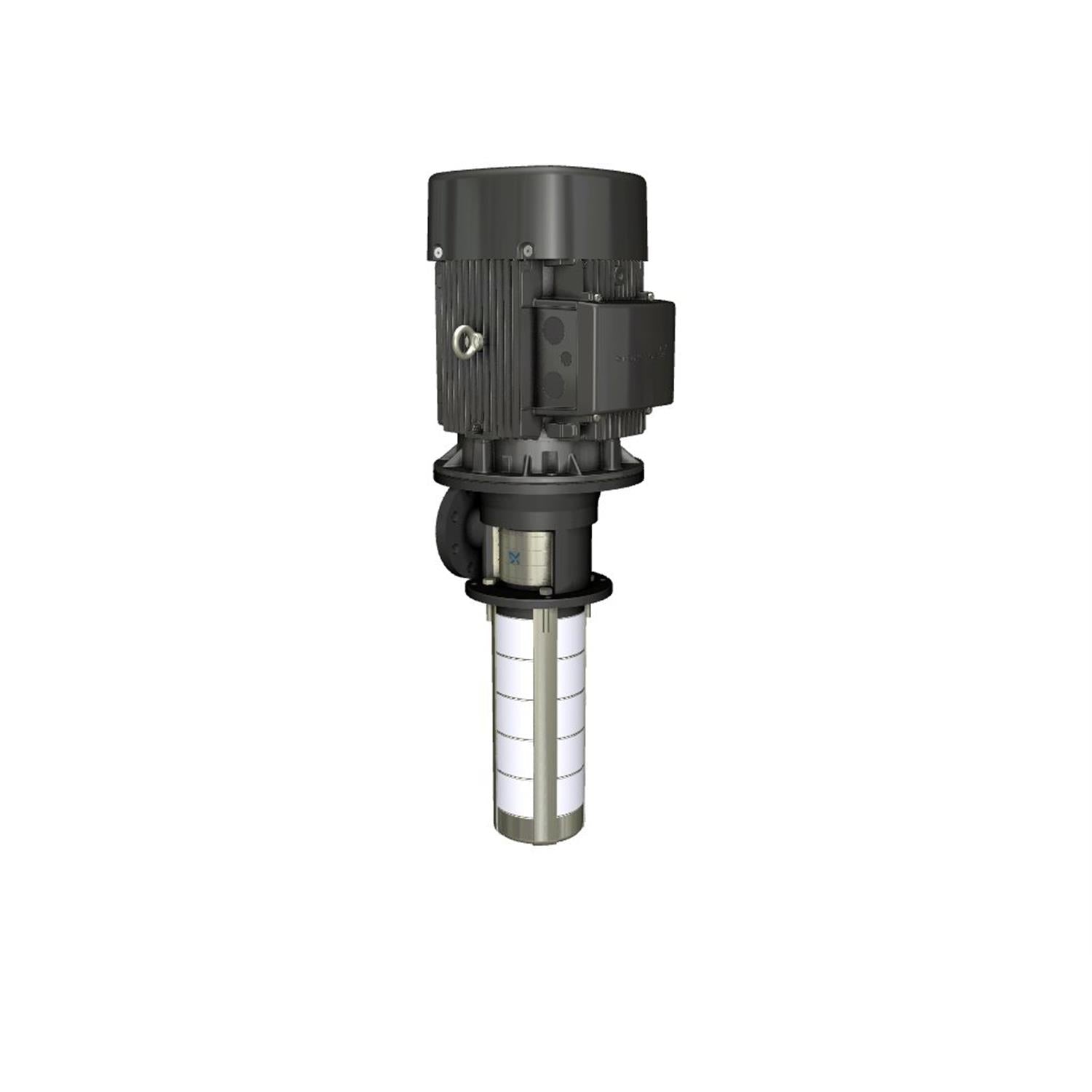

Grundfos 99577626 - MTR 45-7/4-2 A-F-A-HUUV

GRUNDFOSSKU: 99577626

Contact for price
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99577626 - MTR 45-7/4-2 A-F-A-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713831339151
Material Pricing Group 32
Motor efficiency at full load 1 91.7-91.7 %
IE Efficiency class NEMA Premium / IE3 60Hz
Maximum ambient temperature 140 °F
Material code A
Immersion depth 25.4 in
Density 62.29 lb/ft³
Max pressure at stated temp 363 psi / 194 °F
Maximum operating pressure 25 bar
Power factor 1 0.91-0.91
Selected liquid temperature 68 °F
Type of connection DIN
Rated voltage 3 x 220-277D/380-480Y V
Flange size for motor FF300
Pumped liquid Water
Size of outlet connection DN 80
Starting current 650-1040 %
Connect code F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Insulation class (IEC 85) F
Motor efficiency at 1/2 load 94.4-93.9 %
Built-in motor protection PTC
Net weight 409.0 lb
Number of poles 2
Rated speed 3520-3560 rpm
Gross weight 465.0 lb
Rated power - P2 22 kW
Enclosure class (IEC 34-5) 55 Dust/Jetting
Pressure rating for connection PN 40
Motor efficiency at 3/4 load 93.5-94.4 %
Rated current 69
Service factor 1
Cable gland entry 2xM20 + 4xM40 knock out
Minimum efficiency index, MEI ≥ 0.7
Frequency converter NONE
Motor type 180BA
Terminal box position 6
Pump speed on which pump data are based 3556 rpm
Approvals CE
Rated flow 238 US gpm
Model B
Version A
Motor FF300
Chambers 7
Motor standard IEC
Rated head 341.2 ft
Type 180BA
Curve tolerance ISO9906:2012 3B
Impellers 2
Suitable for 50/60 Hz N
Connection PN 40
Impeller Stainless steel
Code for shaft seal HUUV
Number of reduced-diameter impellers 2
Standard IEC
Pump version A
