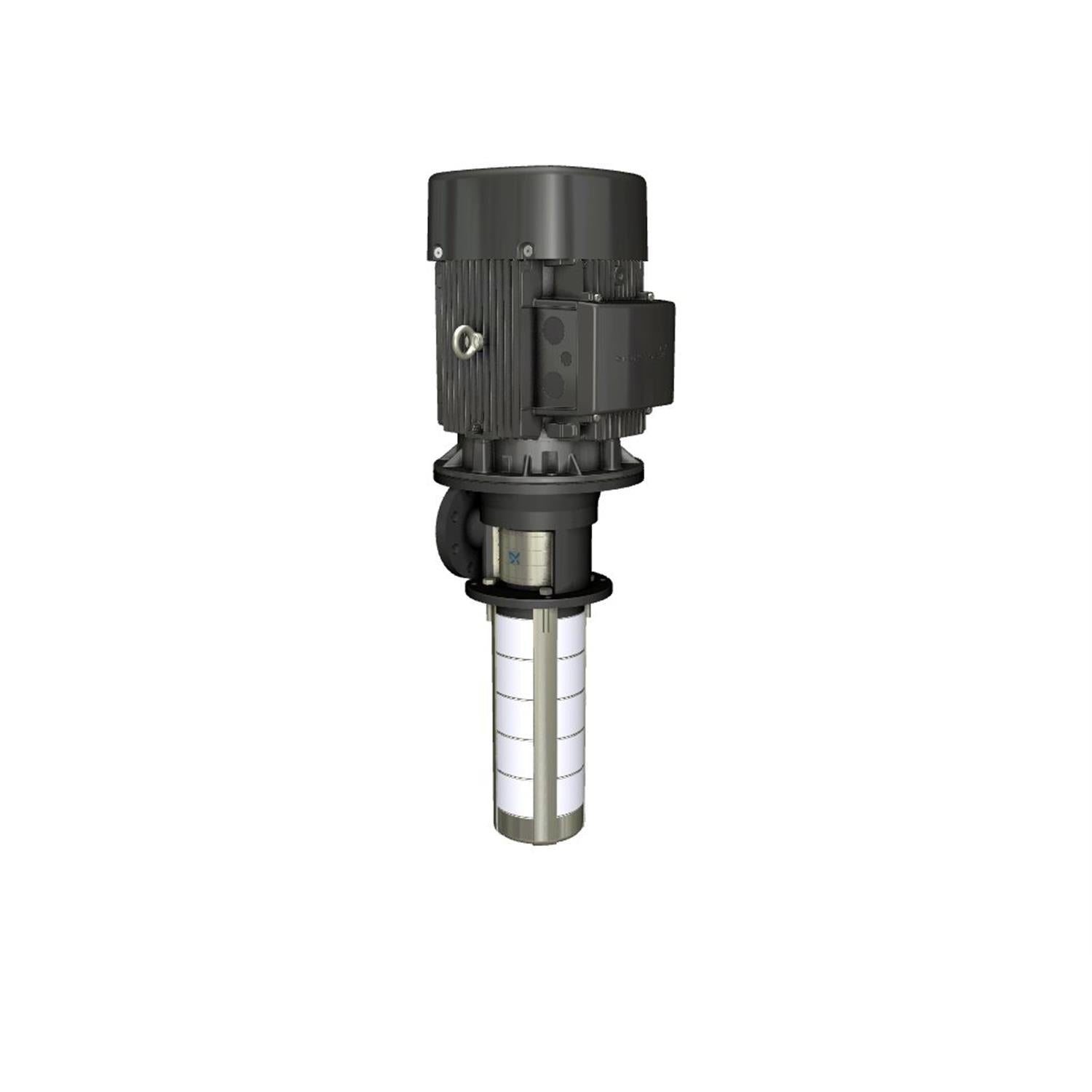

Grundfos 99577792 - MTR 45-5/3 A-G-A-HUUV

GRUNDFOSSKU: 99577792

Contact for price
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99577792 - MTR 45-5/3 A-G-A-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713831341024
Material Pricing Group 32
Material code A
Immersion depth 19.1 in
Max pressure at stated temp 363 psi / 194 °F
Maximum operating pressure 25 bar
Type of connection ANSI
Flange size for motor 284TC
Size of outlet connection 3 inch
Connect code G
Liquid temperature range 14 .. 194 °F
Net weight 121.0 lb
Gross weight 158.0 lb
Motor No N
Minimum efficiency index, MEI ≥ 0.7
Frequency converter NONE
Terminal box position 6
Pump speed on which pump data are based 3521 rpm
Rated flow 238 US gpm
Model B
Version A
Motor 284TC
Chambers 5
Motor standard NEMA
Rated head 282.5 ft
Curve tolerance ISO9906:2012 3B
Impellers 0
Suitable for 50/60 Hz N
Connection 3 inch
Impeller Stainless steel
Code for shaft seal HUUV
Number of reduced-diameter impellers 0
Standard NEMA
Pump version A
