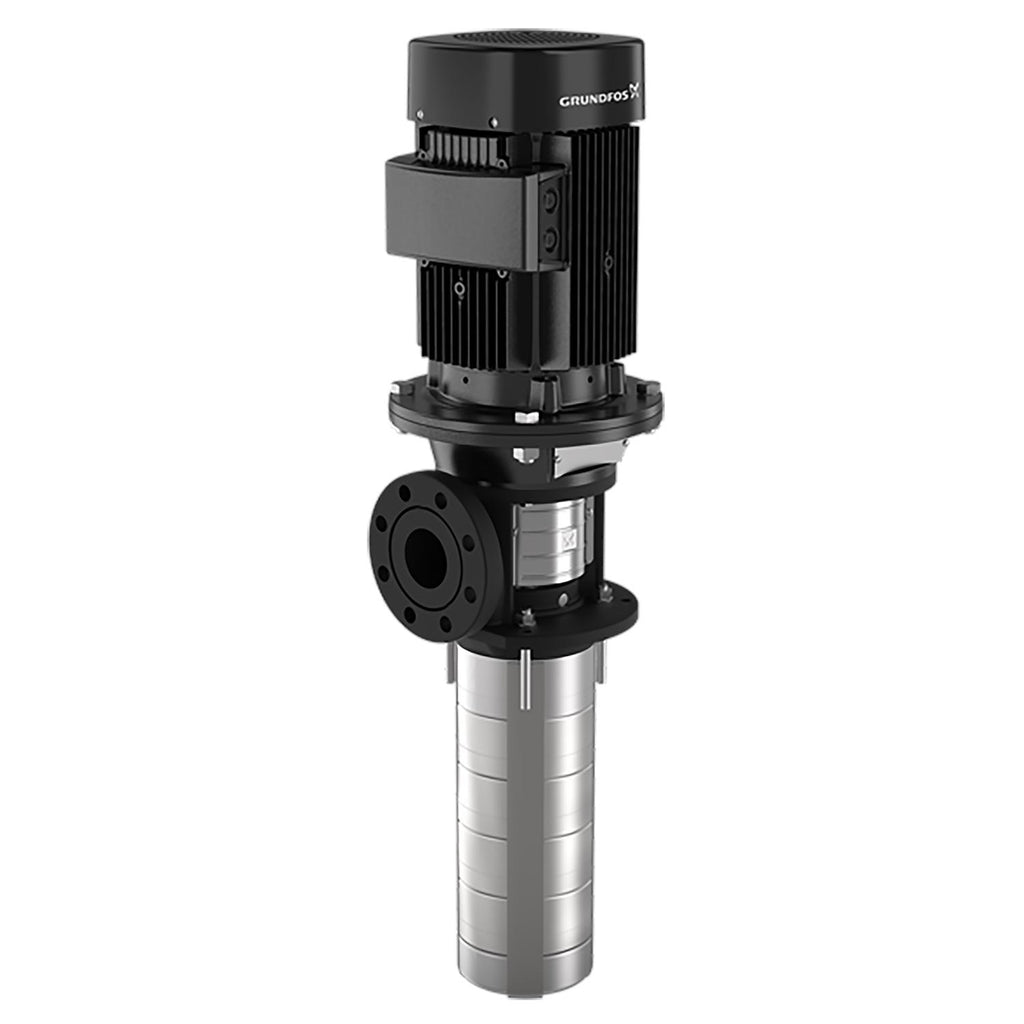

Grundfos 96429689 - MTR 45-4/4 A-G-A-HUUV | Vertical | Immersible | Multistage

Save $8,472.61
GRUNDFOSSKU: 96429689

Price:
Sale price$11,845.39 Regular price$20,318.00
Build to order – stocked components,typically available in 85 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96429689 - MTR 45-4/4 A-G-A-HUUV is a high-performance vertical immersible multistage pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for those seeking robust pumping solutions.

This model features a vertical design that allows for easy installation in tight spaces, while its multistage configuration ensures optimal pressure and flow rates. The MTR series is known for its durability and versatility, making it suitable for various fluid handling tasks.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 96429689 to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

Approvals CE,EAC,UKCA,RCM,cURus/cCSAus,Morocco
Approvals for motor CE,CC
Built-in motor protection PTC
Chambers 4
Code for shaft seal HUUV
Connect code G
Connection ANSI
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 286TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 428.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:MTR 45-4/4 A-G-A-HUUV
IE Efficiency class NEMA Premium / IE3 60Hz
Immersion depth 15.9 in
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 194°F
Liquid temperature range 14 .. 194 °F
Material code A
Maximum ambient temperature 104 °F
Maximum operating pressure 362.59 psi
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor 286TC
Motor efficiency at 1/2 load 93.0-92.0 %
Motor efficiency at 3/4 load 91.0-92.0 %
Motor efficiency at full load 1 91.5-91.7 %
Motor standard NEMA
Motor type 180AA
n rpm F
Net weight 372.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 30 HP
Phase 3
Power factor 1 0.92-0.91
Pump version A
Rated current 74,0-67,0/33,5 A
Rated flow 238 US gpm
Rated head 385.8 ft
Rated power - P2 30 HP
Rated speed 3490-3540 rpm
Rated voltage 3 x 208-230DD/460D V
Sales region Namreg
Service factor 1.15
Shaft Product name:MTR 45-4/4 A-G-A-HUUV
Shaft seal HUUV
Standard NEMA
Starting current 540-730 %
Suitable for 5/6 Hz N
Terminal box position 6
Type 180AA
Type of connection ANSI
Version A

Motor Curves

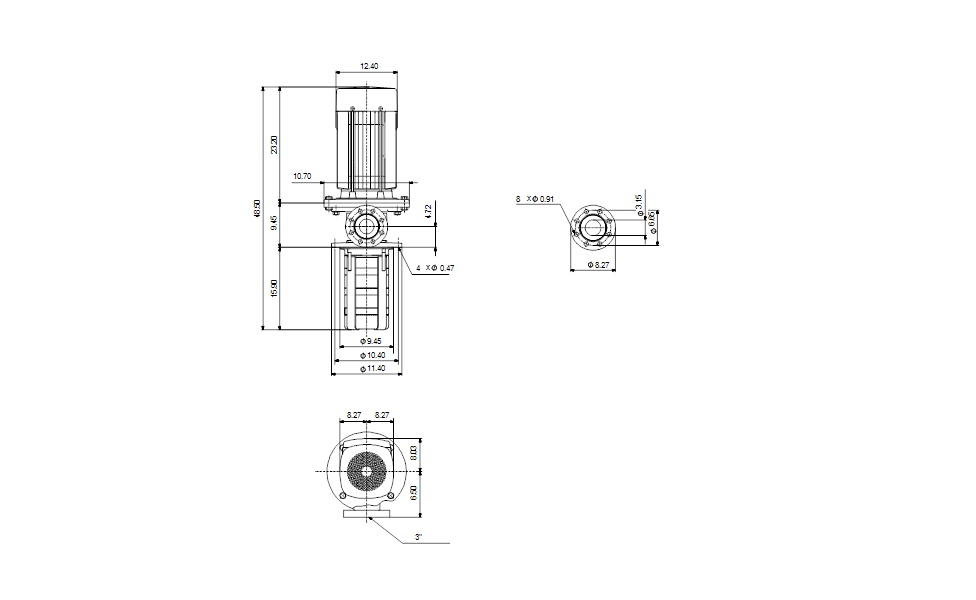

Dimensional Drawing

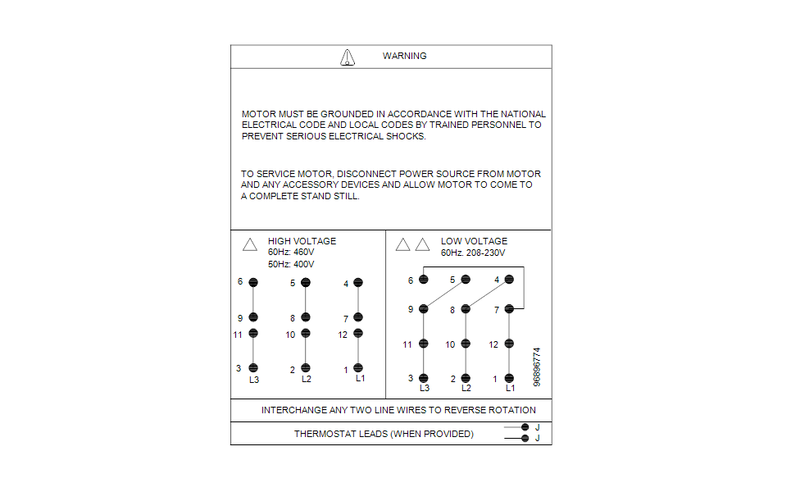

DWiring Diagram
