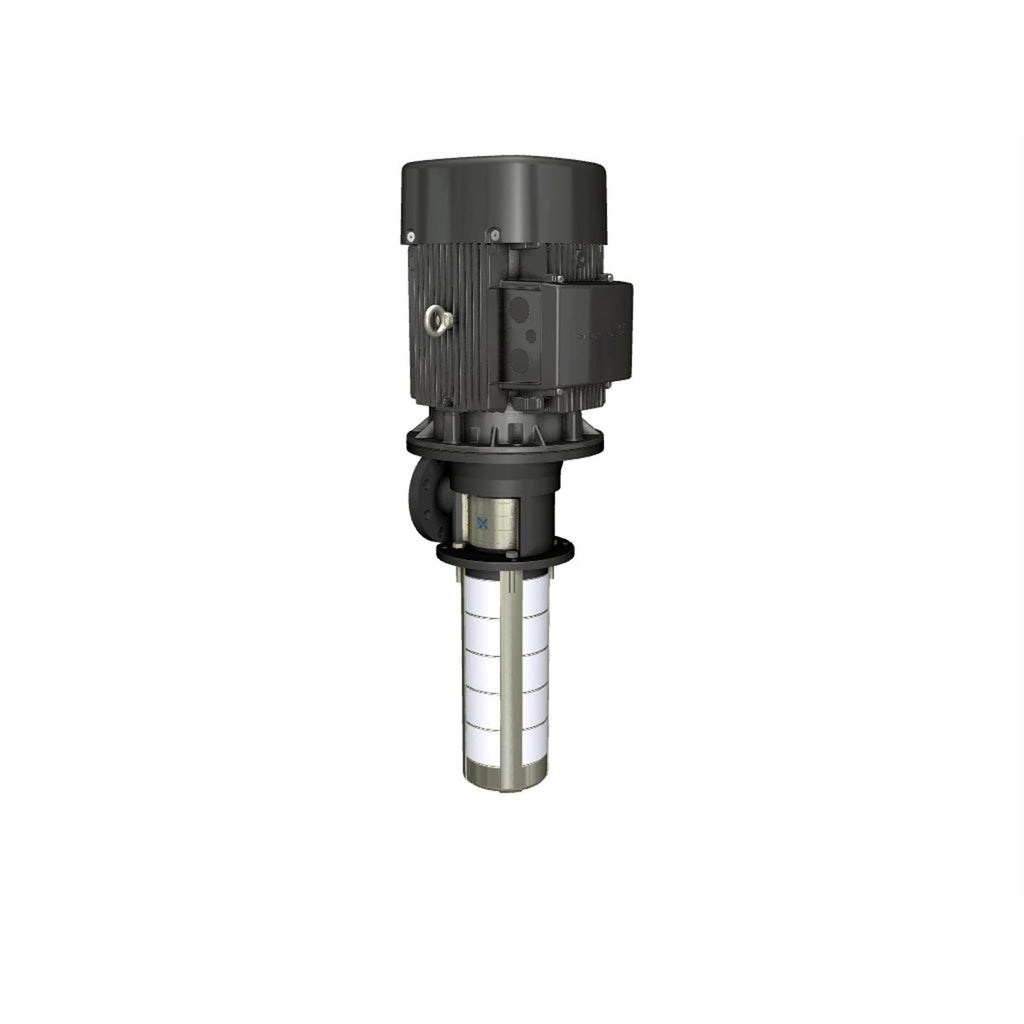

Grundfos 98472909 - MTR 32-9/9 A-F-A-HUUV | Multistage | Immersible | SelfPriming | Centrifugal | Vertical Installation | Vertical

Save $13,864.06
GRUNDFOSSKU: 98472909

Price:
Sale price$15,633.94 Regular price$29,498.00
or Call for most up to date lead times. (781) 281-8905

Description

MTR 32-9/9 A-F-A-HUUV | Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc. The pump head and base are in cast iron – all other wetted parts are in stainless steel. The pump has the following characteristics: Dimensions according to DIN 5440.
Impellers, intermediate chambers and spline shaft are made of Stainless steel.
Mechanical shaft seal according to EN 12756.
Power transmission via sintered metal split coupling. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. The pump is fitted with a 3-phase, fan-cooled asynchronous motor. Immersion depth:

EAN 5711495675370
Approvals CE
Built-in motor protection PTC
Cable gland entry 2xM72x1
Chambers 9
Code for shaft seal HUUV
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor FF350
Frequency converter NONE
Gross weight 754.0 lb
IE efficiency IE3 92
IE Efficiency class IE3 / NEMA Premium
Immersion depth 28.1 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 131 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF350
Motor efficiency at 1/2 load 92.6-92.6 %
Motor efficiency at 3/4 load 93.1-93.1 %
Motor efficiency at full load 1 92.4-92.4 %
Motor standard IEC
Motor type SIEMENS
Net weight 641.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power factor 1 0.87
Pressure rating for connection PN 40
Pump speed on which pump data are based 3561 rpm
Pump version A
Pumped liquid Water
Rated current 54.0-50.0 A
Rated flow 159 US gpm
Rated head 659.5 ft
Rated power - P2 30 kW
Rated speed 3560 rpm
Rated voltage 3 x 440-480D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection DN 65
Standard IEC
Starting current 760-760 %
Suitable for 50/60 Hz N
Terminal box position 6
Type SIEMENS
Type of connection DIN
Version A

Motor Curves

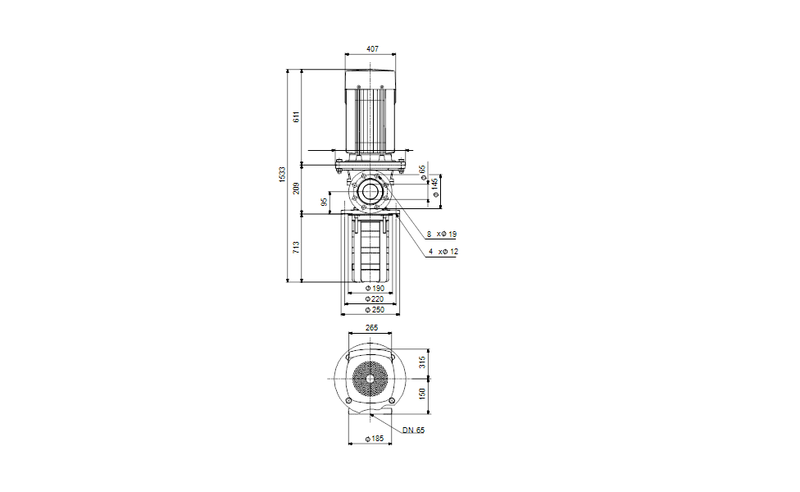

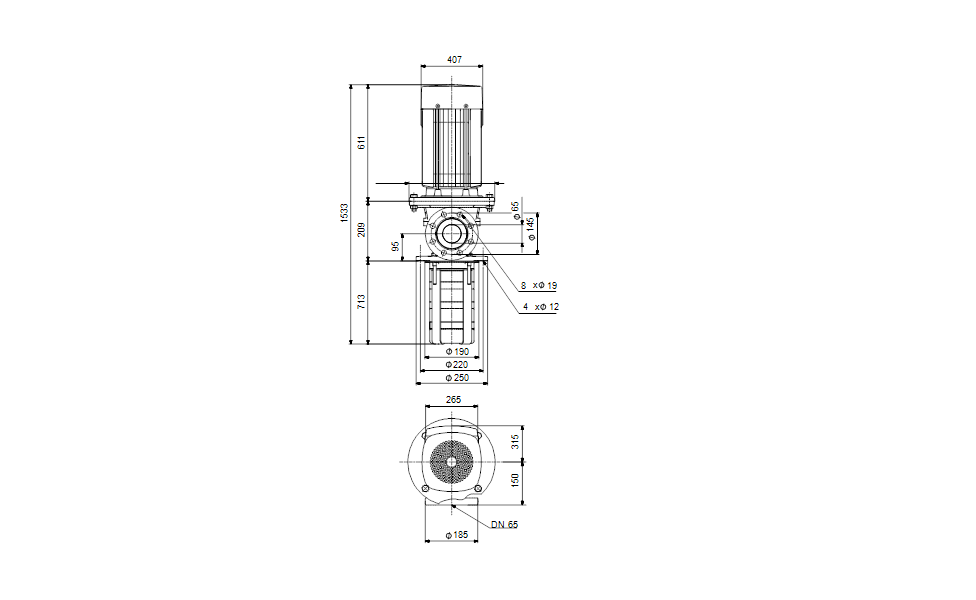

Dimensional Drawing

DWiring Diagram
