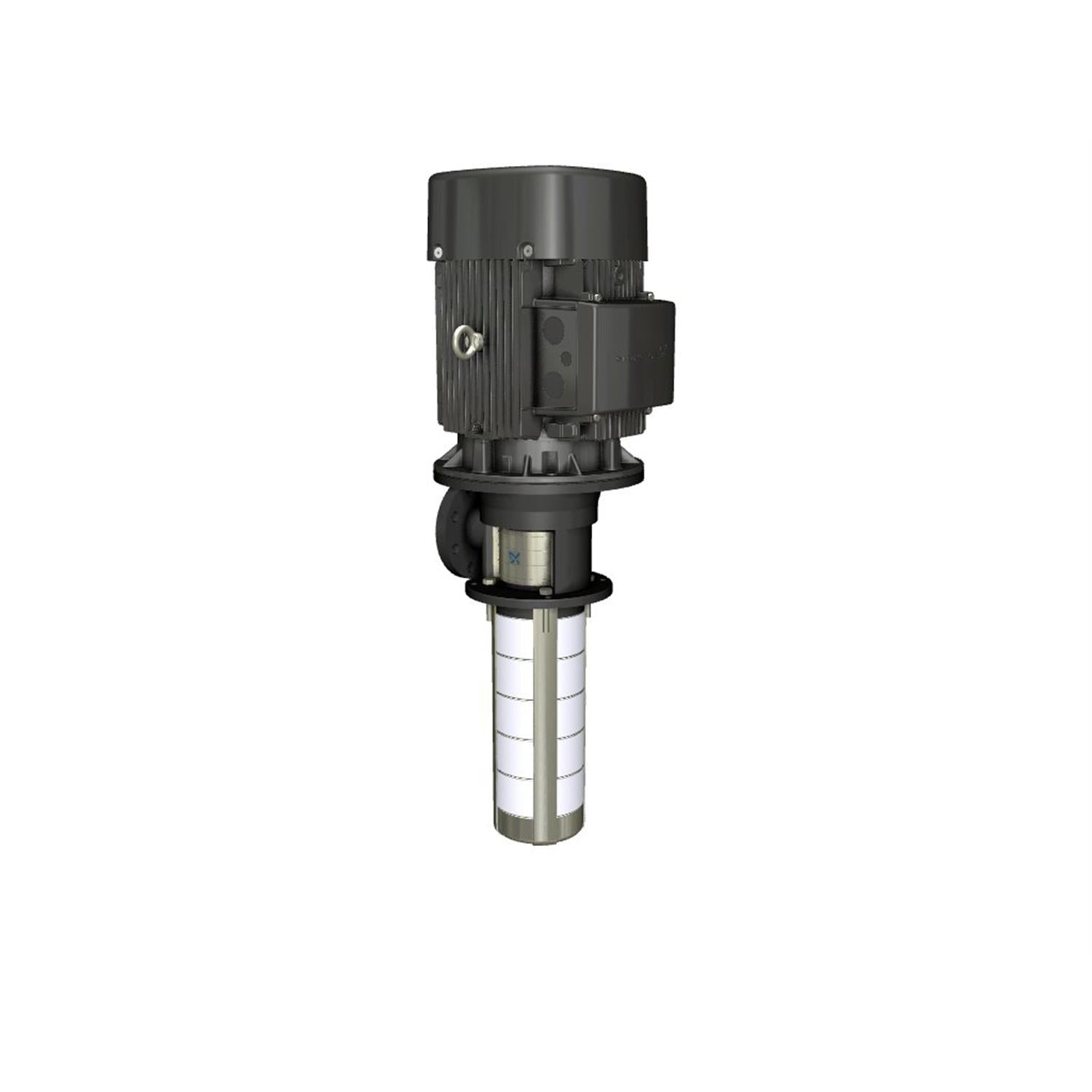

![Grundfos 99573676 - MTR 32-9/3 A-G-A-HUUV]()
![Grundfos 99573676 - MTR 32-9/3 A-G-A-HUUV]()
![Grundfos 99573676 - MTR 32-9/3 A-G-A-HUUV]()
![Grundfos 99573676 - MTR 32-9/3 A-G-A-HUUV]()
Description
Grundfos 99573676 - MTR 32-9/3 A-G-A-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713831274087
Material Pricing Group
32
Material code
A
Immersion depth
28.1 in
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Type of connection
ANSI
Flange size for motor
254TC
Size of outlet connection
2.5 inch
Connect code
G
Liquid temperature range
14 .. 194 °F
Net weight
96.5 lb
Gross weight
137.0 lb
Motor No
N
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Terminal box position
6
Pump speed on which pump data are based
3444 rpm
Rated flow
159 US gpm
Model
B
Version
A
Motor
254TC
Chambers
9
Motor standard
NEMA
Rated head
216.5 ft
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
2.5 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
0
Standard
NEMA
Pump version
A
