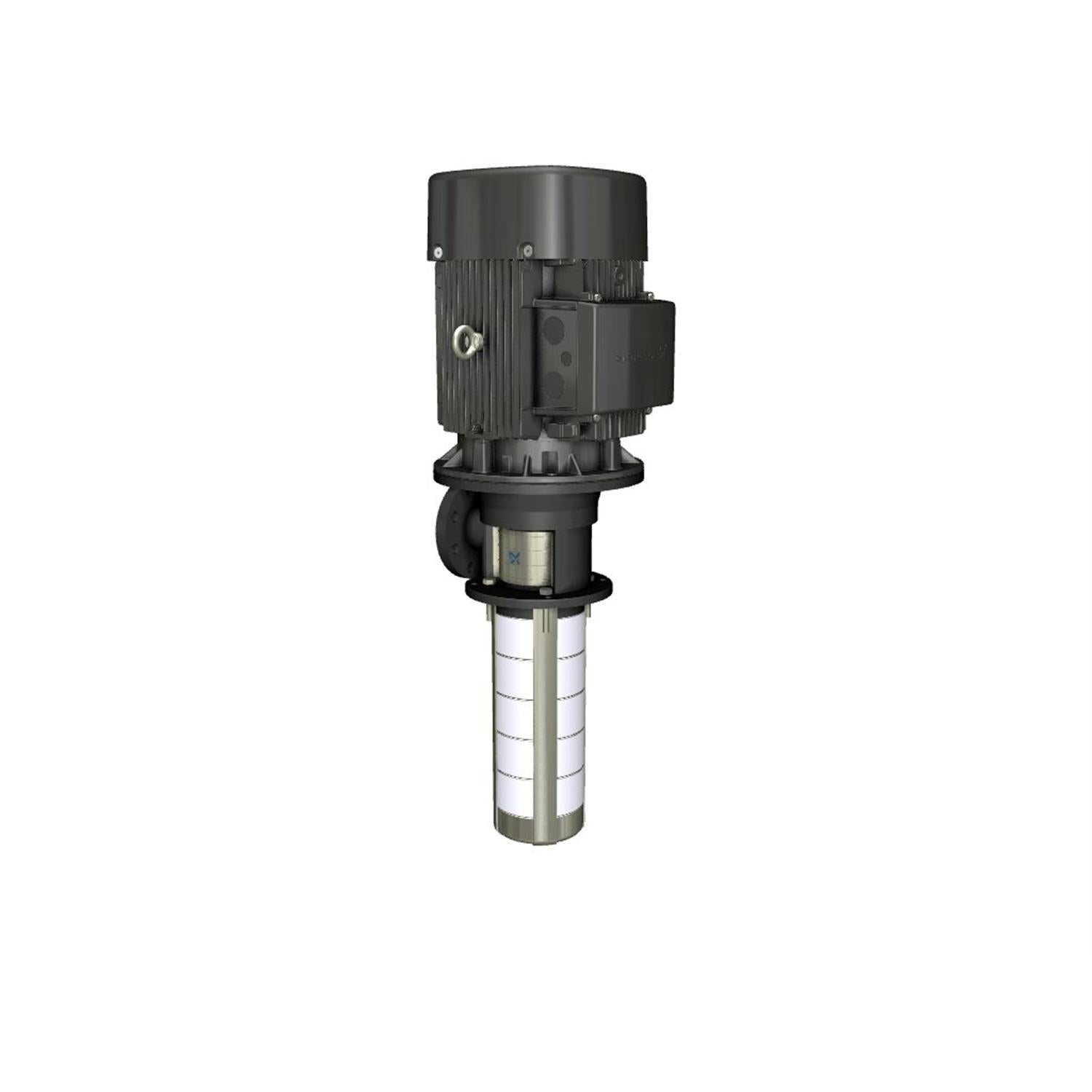

![Grundfos 99897385 - MTR 32-6/2 A-F-A-HUUV]()
![Grundfos 99897385 - MTR 32-6/2 A-F-A-HUUV]()
![Grundfos 99897385 - MTR 32-6/2 A-F-A-HUUV]()
![Grundfos 99897385 - MTR 32-6/2 A-F-A-HUUV]()
![Grundfos 99897385 - MTR 32-6/2 A-F-A-HUUV]()
![Grundfos 99897385 - MTR 32-6/2 A-F-A-HUUV]()
Description
Grundfos 99897385 - MTR 32-6/2 A-F-A-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713835891143
Material Pricing Group
32
Motor efficiency at full load 1
89.5-90.2 %
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
140 °F
Material code
A
Immersion depth
19.8 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.90-0.82
Selected liquid temperature
68 °F
Type of connection
DIN
Rated voltage
3 x 220-277D/380-480Y V
Flange size for motor
FF265
Pumped liquid
Water
Size of outlet connection
DN 65
Starting current
680-1050 %
Connect code
F
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
91.4-89.7 %
Built-in motor protection
PTC
Net weight
217.0 lb
Number of poles
2
Rated speed
3490-3530 rpm
Gross weight
263.0 lb
Rated power - P2
7.5 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Pressure rating for connection
PN 40
Motor efficiency at 3/4 load
90.9-90.7 %
Rated current
24
Cable gland entry
4xM25 knock out
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
132EA
Terminal box position
6
Pump speed on which pump data are based
3525 rpm
Approvals
CE
Rated flow
159 US gpm
Model
B
Version
A
Motor
FF265
Chambers
6
Motor standard
IEC
Rated head
141.4 ft
Type
132EA
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
PN 40
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
A
Motor Curves
