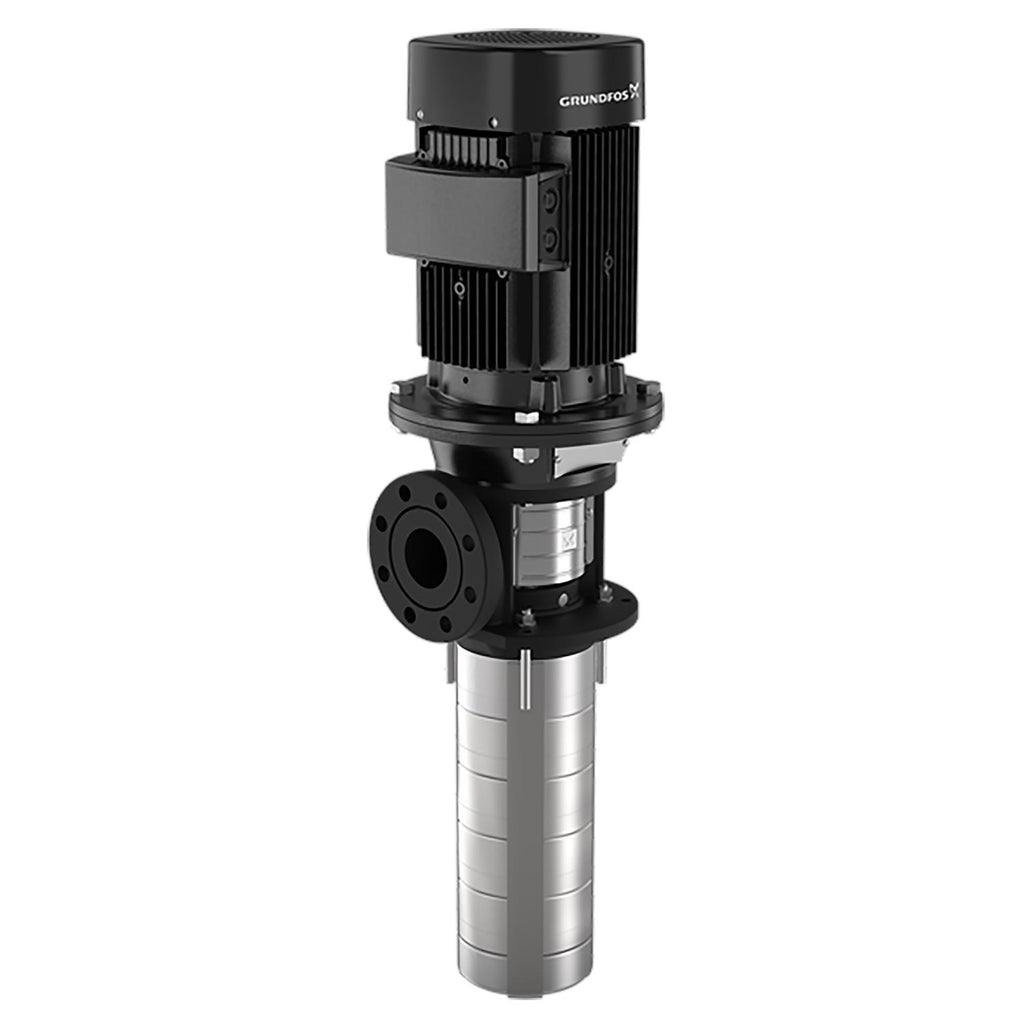

Grundfos 96428846 - MTR 32-5/5 A-G-A-HUUV | Vertical | Immersible | Multistage

Save $5,171.41
GRUNDFOSSKU: 96428846

Price:
Sale price$5,831.59 Regular price$11,003.00
or Call for most up to date lead times. (781) 281-8905

Description

MTR 32-5/5 A-G-A-HUUV The pump head and base are in cast iron – all other wetted parts are in stainless steel. The pump has the following characteristics: Dimensions according to DIN 5440.
Impellers, intermediate chambers and spline shaft are made of Stainless steel.
Mechanical shaft seal according to EN 12756.
Power transmission via sintered metal split coupling. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Immersion depth:

EAN 5700392845337
Chambers 5
Code for shaft seal HUUV
Connect code G
Connection CLASS 150
Density 62.29 lb/ft³
Flange size for motor 254TC
Gross weight 202.0 lb
Impeller Stainless steel
Impellers 5
Liquid temperature range 14 .. 194 °F
Material code A
Material Pricing Group 32
Maximum operating pressure PN25 bar
Model A
Motor 254TC
Net weight 169.0 lb
Pressure rating for connection CLASS 150
Pump version A
Pumped liquid Emulsion
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Sales region Namreg
Selected liquid temperature 68 °F
Size of outlet connection 2 1/2" inch
Type of connection ANSI
Version A

Motor Curves

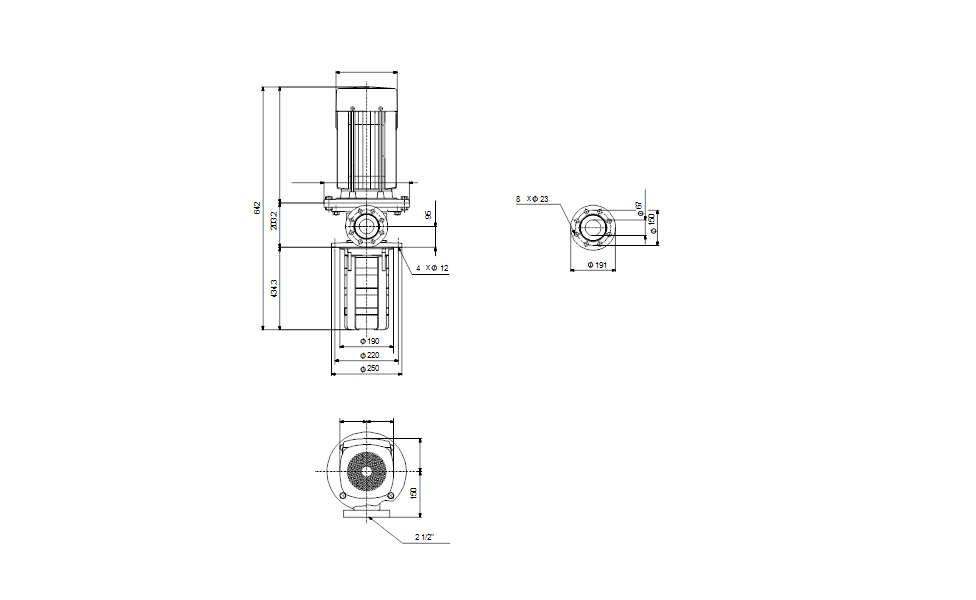

Dimensional Drawing
