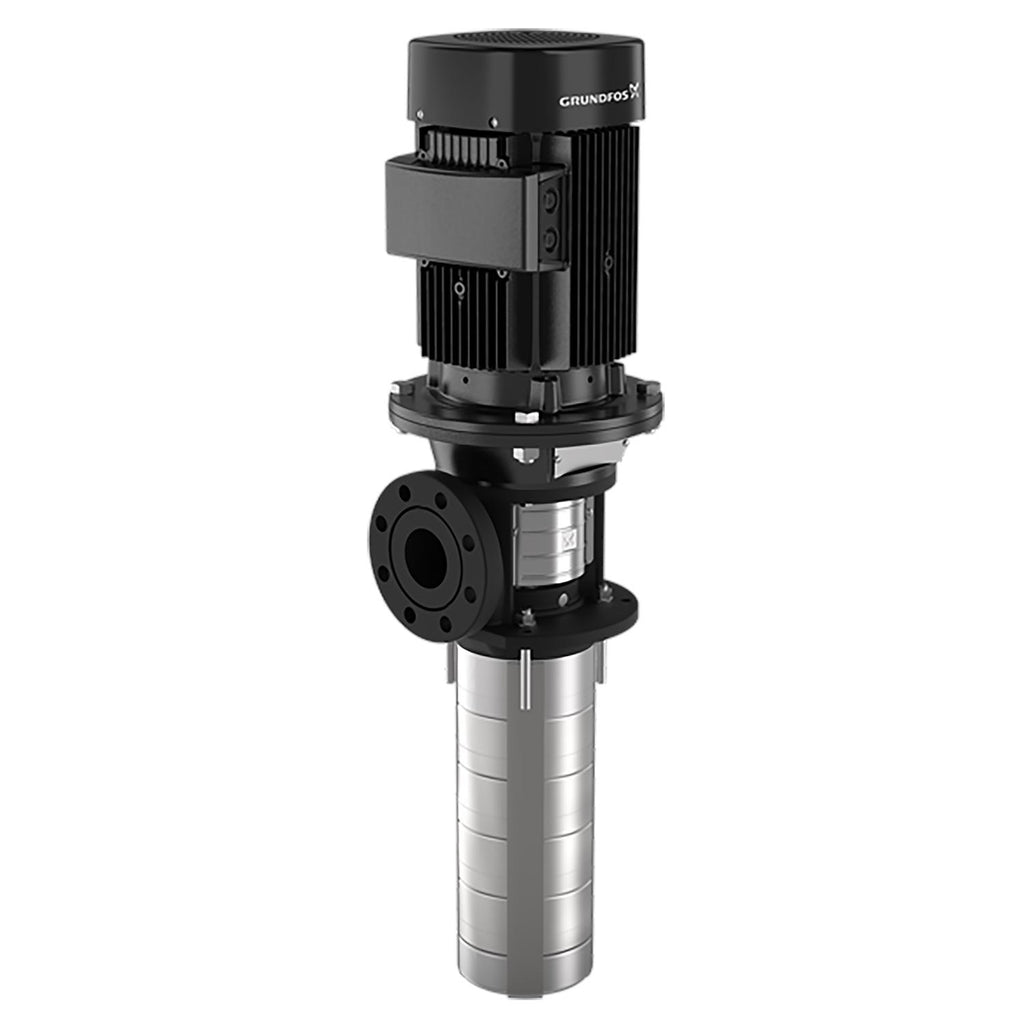

Grundfos 96428843 - MTR 32-2/2 A-G-A-HUUV | Vertical | Immersible | Multistage

Save $2,899.43
GRUNDFOSSKU: 96428843

Price:
Sale price$3,269.57 Regular price$6,169.00
or Call for most up to date lead times. (781) 281-8905

Description

MTR 32-2/2 A-G-A-HUUV The pump head and base are in cast iron – all other wetted parts are in stainless steel. The pump has the following characteristics: Dimensions according to DIN 5440.
Impellers, intermediate chambers and spline shaft are made of Stainless steel.
Mechanical shaft seal according to EN 12756.
Power transmission via sintered metal split coupling. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Immersion depth:

EAN 5700392845306
Chambers 2
Code for shaft seal HUUV
Connect code G
Connection CLASS 150
Density 62.29 lb/ft³
Flange size for motor 213TC
Gross weight 200.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range 14 .. 194 °F
Material code A
Material Pricing Group 32
Maximum operating pressure PN25 bar
Model A
Motor 213TC
Net weight 167.0 lb
Pressure rating for connection CLASS 150
Pump version A
Pumped liquid Emulsion
Rated flow 145 US gpm
Rated head 144.4 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Sales region Namreg
Selected liquid temperature 68 °F
Size of outlet connection 2 1/2" inch
Type of connection ANSI
Version A

Motor Curves

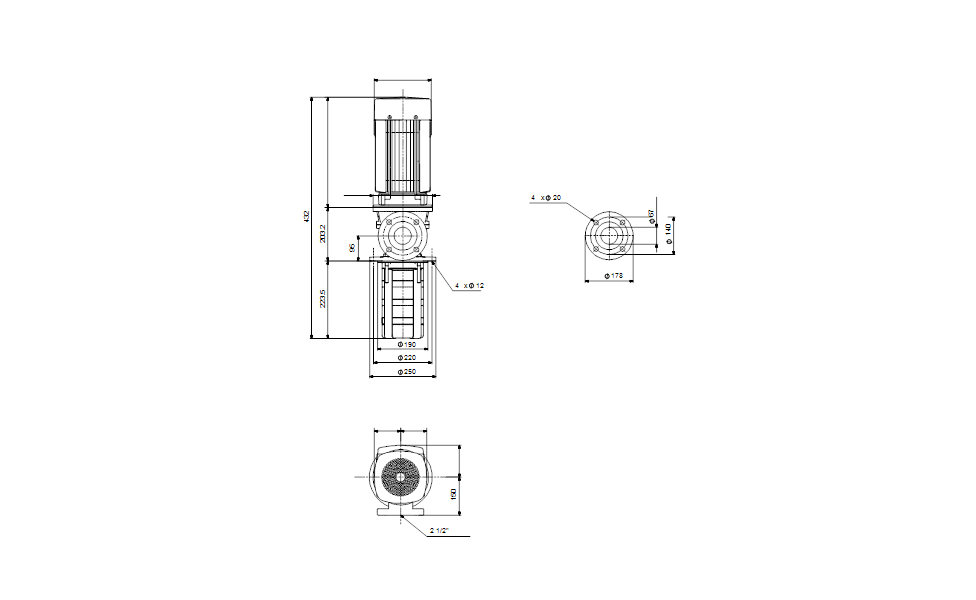

Dimensional Drawing
