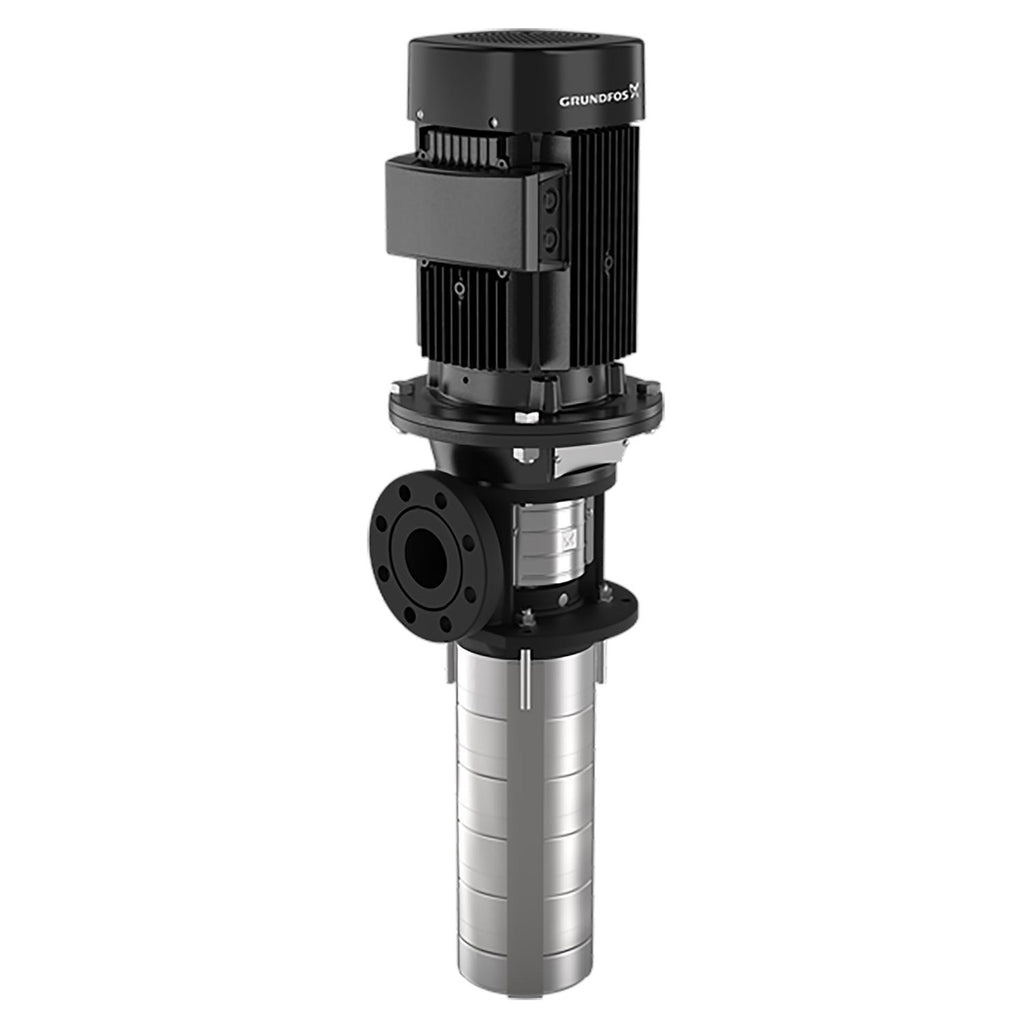

Grundfos 96428841 - MTR 32-2/1 A-G-A-HUUV | Vertical | Immersible | Multistage

GrundfosSKU: 96428841

Price:
Sale price$4,864.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
Grundfos 96428841 - MTR 32-2/1 A-G-A-HUUV | Vertical | Immersible | Multistage · Genuine Grundfos Part
MTR SeriesGenuine Grundfos PartSpare Part / Accessory

The Grundfos 96428841 is a genuine Grundfos spare part, repair kit, or accessory compatible with the MTR series (Immersible pumps). Confirm compatibility with your specific pump model before ordering.

Genuine Grundfos
OEM part — engineered and tested to Grundfos specifications
Authorized Distributor
Full manufacturer warranty and traceability on all genuine parts
Compatibility
Verify part number against your pump model and serial number before ordering
Expert Support
Parts identification help available — call (781) 281-8905 or chat
Compatible Pump Series — MTR
Vertical, multistage centrifugal pump for tank top mounting. Suitable for machine tool coolant, deionized water, and process liquid applications requiring tank-top installation.
Immersible pumps
Part Details
Part Number 96428841
Compatible Series Grundfos MTR
Product Category Immersible pumps
Part Type Genuine Grundfos OEM spare part / accessory
Important Notices
Compatibility Always verify this part number against your pump model number and serial number before ordering. Grundfos MTR pumps are available in multiple configurations — not all parts are interchangeable between variants.
Genuine parts only Using non-genuine parts can affect pump performance, invalidate warranty, and cause premature failure. PumpStop supplies genuine Grundfos OEM parts only.
Installation Refer to the Grundfos Service Manual for your specific pump model for correct installation and torque specifications. Contact PumpStop for documentation.
Documentation
✓ Service Manual — MTR Series
✓ Spare Parts List — MTR Series
✓ Installation and Operating Manual (IOM)
Need the service manual or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm this part number is correct for your specific pump model and serial number. For parts identification assistance, chat or call (781) 281-8905.
EAN 5700392845283
Chambers 2
Code for shaft seal HUUV
Connect code G
Connection CLASS 150
Density 62.29 lb/ft³
Flange size for motor 182TC
Gross weight 200.0 lb
Impeller Stainless steel
Impellers 1
Liquid temperature range 14 .. 194 °F
Material code A
Material Pricing Group 32
Maximum operating pressure PN25 bar
Model A
Motor 182TC
Net weight 167.0 lb
Pressure rating for connection CLASS 150
Pump version A
Pumped liquid Emulsion
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Sales region Namreg
Selected liquid temperature 68 °F
Size of outlet connection 2 1/2" inch
Type of connection ANSI
Version A

Motor Curves

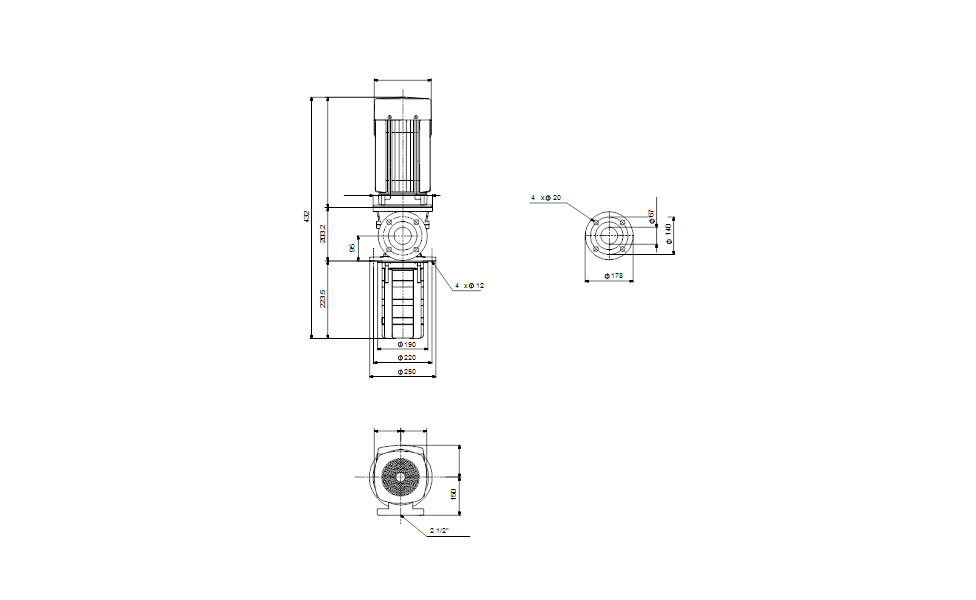

Dimensional Drawing
