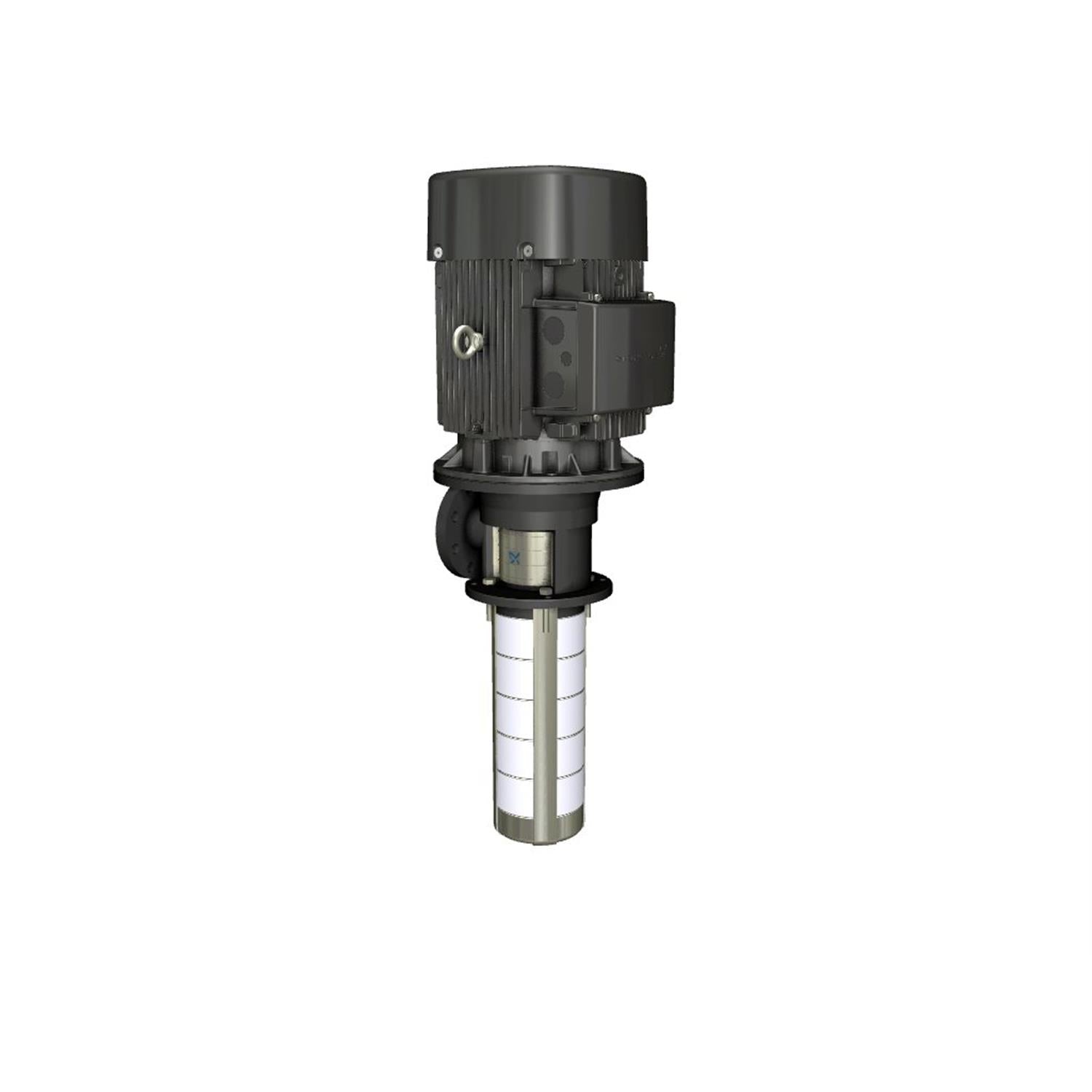

![Grundfos 99941074 - MTR 32-14/4 A-F-A-HUUV]()
![Grundfos 99941074 - MTR 32-14/4 A-F-A-HUUV]()
![Grundfos 99941074 - MTR 32-14/4 A-F-A-HUUV]()
![Grundfos 99941074 - MTR 32-14/4 A-F-A-HUUV]()
![Grundfos 99941074 - MTR 32-14/4 A-F-A-HUUV]()
![Grundfos 99941074 - MTR 32-14/4 A-F-A-HUUV]()
Description
Grundfos 99941074 - MTR 32-14/4 A-F-A-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5715114469029
Material Pricing Group
32
Motor efficiency at full load 1
90.2-91.0 %
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
140 °F
Material code
A
Immersion depth
41.9 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.90-0.86
Selected liquid temperature
68 °F
Type of connection
DIN
Rated voltage
3 x 220-277D/380-480Y V
Flange size for motor
FF300
Pumped liquid
Water
Size of outlet connection
DN 65
Starting current
580-890 %
Connect code
F
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
92.1-91.3 %
Built-in motor protection
PTC
Net weight
329.0 lb
Number of poles
2
Rated speed
3520-3550 rpm
Gross weight
388.0 lb
Rated power - P2
15 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Pressure rating for connection
PN 40
Motor efficiency at 3/4 load
91.8-92.3 %
Rated current
48
Service factor
1
Cable gland entry
2xM20 + 4xM40 knock out
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
160BB
Terminal box position
6
Pump speed on which pump data are based
3528 rpm
Approvals
CE
Rated flow
159 US gpm
Model
B
Version
A
Motor
FF300
Chambers
14
Motor standard
IEC
Rated head
286.1 ft
Type
160BB
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
PN 40
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
A
