Image shown may not be actual product
![Grundfos 99564948 - MTR 3-8/8 D-M-A-AQQV]()
![Grundfos 99564948 - MTR 3-8/8 D-M-A-AQQV]()
![Grundfos 99564948 - MTR 3-8/8 D-M-A-AQQV]()
![Grundfos 99564948 - MTR 3-8/8 D-M-A-AQQV]()
Description

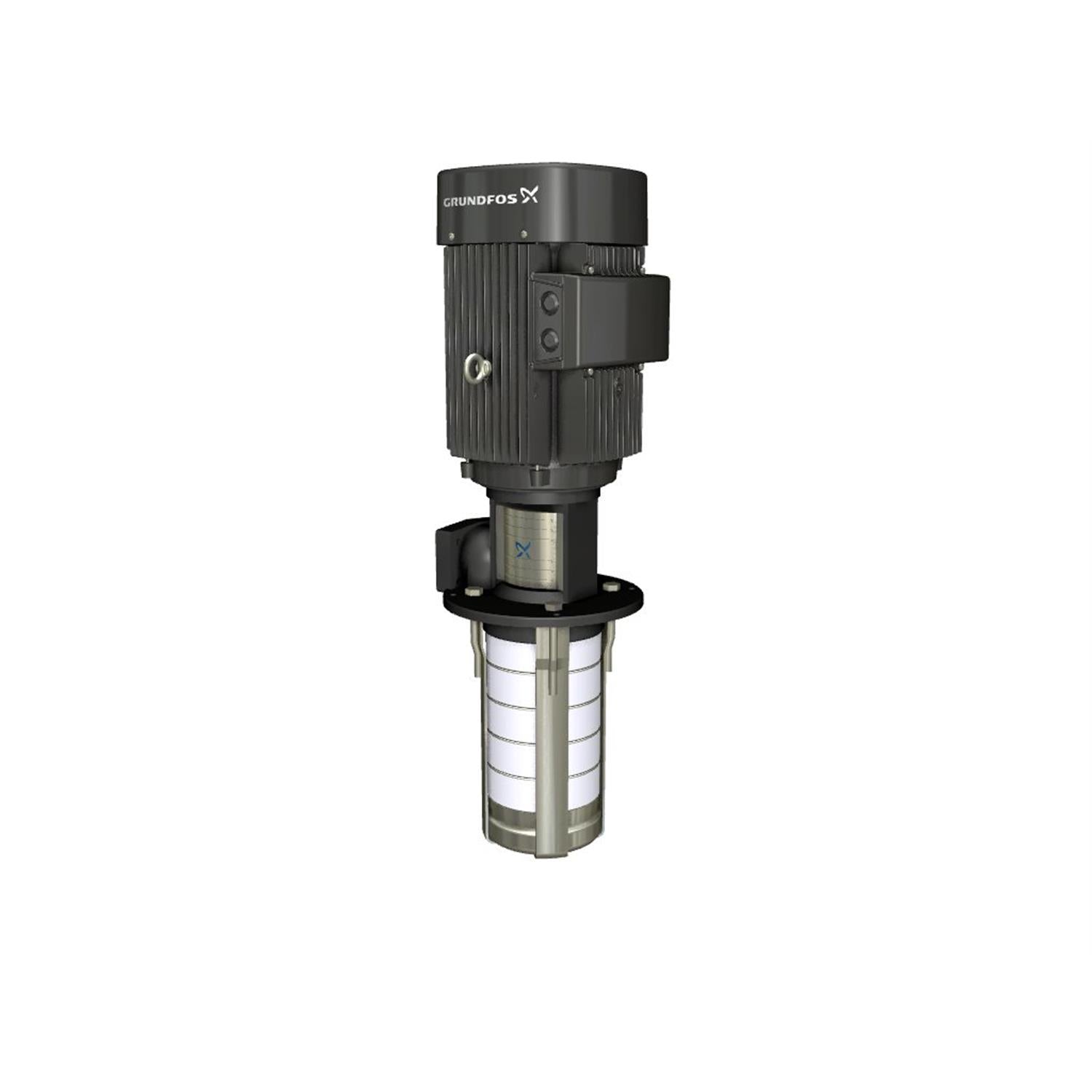

Grundfos 99564948 - MTR 3-8/8 D-M-A-AQQV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713831128007
Material Pricing Group
32
Material code
A
Immersion depth
10.6 in
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Type of connection
Square / Rp
Flange size for motor
FT100
Size of outlet connection
1 1/4 inch
Connect code
M
Liquid temperature range
14 .. 194 °F
Net weight
15.9 lb
Gross weight
22.7 lb
Motor No
N
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Terminal box position
6
Pump speed on which pump data are based
3463 rpm
Rated flow
15.4 US gpm
Model
A
Version
D
Motor
FT100
Chambers
8
Motor standard
IEC
Rated head
191.3 ft
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
1 1/4 inch
Impeller
Stainless steel
Code for shaft seal
AQQV
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
D
Motor Curves
