Description

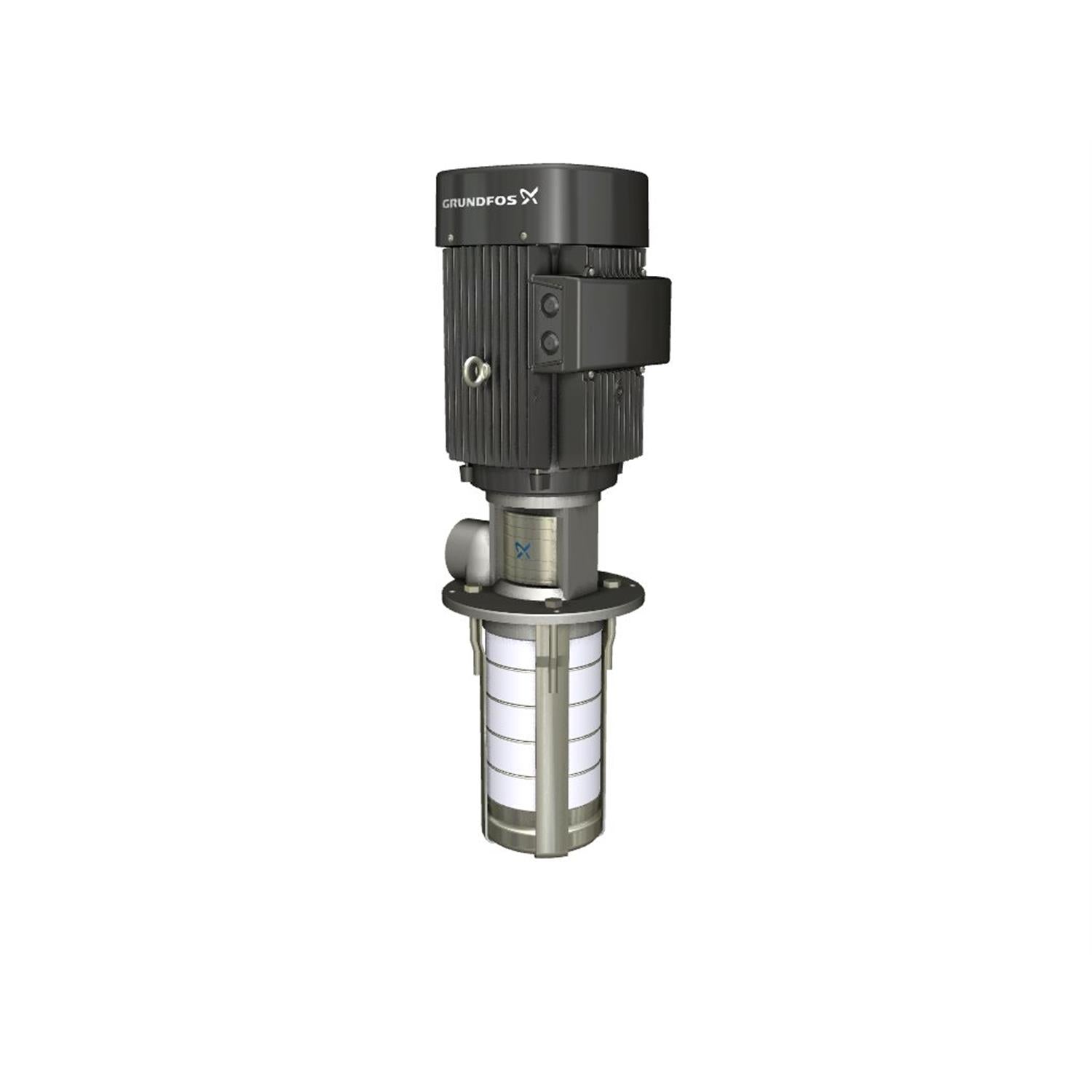

Grundfos 99693712 - MTR 3-14/2 A-WB-I-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713832988600
Material Pricing Group
32
Material code
I
Immersion depth
14.8 in
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Type of connection
NPT(F)
Flange size for motor
56C
Size of outlet connection
1 1/4 inch
Connect code
WB
Liquid temperature range
14 .. 194 °F
Net weight
18.4 lb
Gross weight
25.2 lb
Motor No
N
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Terminal box position
6
Pump speed on which pump data are based
3485 rpm
Rated flow
15.4 US gpm
Model
A
Version
A
Motor
56C
Chambers
14
Motor standard
NEMA
Rated head
38.06 ft
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
1 1/4 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
0
Standard
NEMA
Pump version
A
