Description

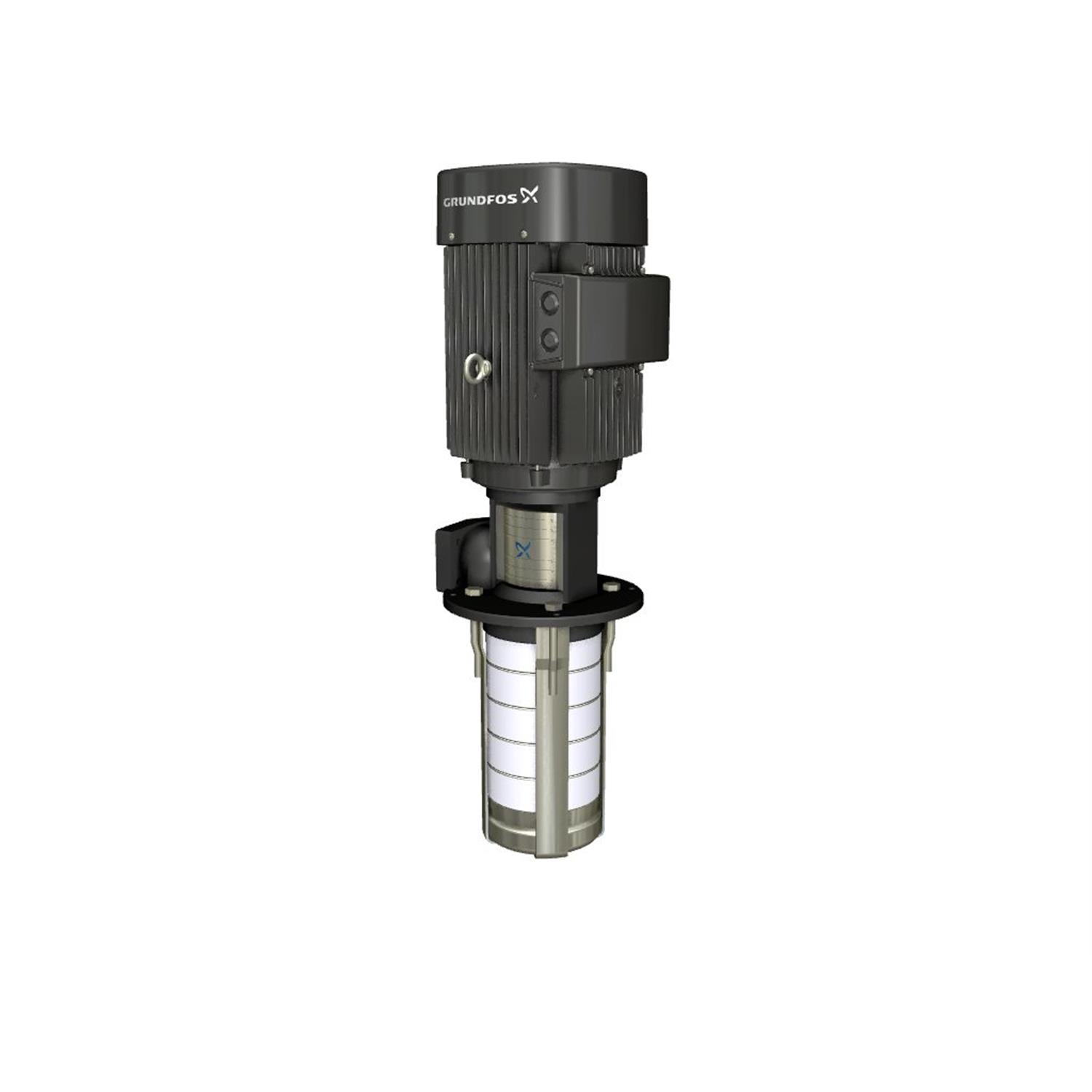

Grundfos 99968390 - MTR 3-12/7 D-M-A-AQQV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5715114890090
Material Pricing Group
32
Material code
A
Immersion depth
13.4 in
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Type of connection
Square / Rp
Flange size for motor
FT100
Size of outlet connection
1 1/4 inch
Connect code
M
Liquid temperature range
14 .. 194 °F
Net weight
16.1 lb
Gross weight
22.9 lb
Motor No
N
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Terminal box position
6
Pump speed on which pump data are based
3463 rpm
Rated flow
15.4 US gpm
Model
A
Version
D
Motor
FT100
Chambers
12
Motor standard
IEC
Rated head
160.4 ft
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
1 1/4 inch
Impeller
Stainless steel
Code for shaft seal
AQQV
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
D
Motor Curves
