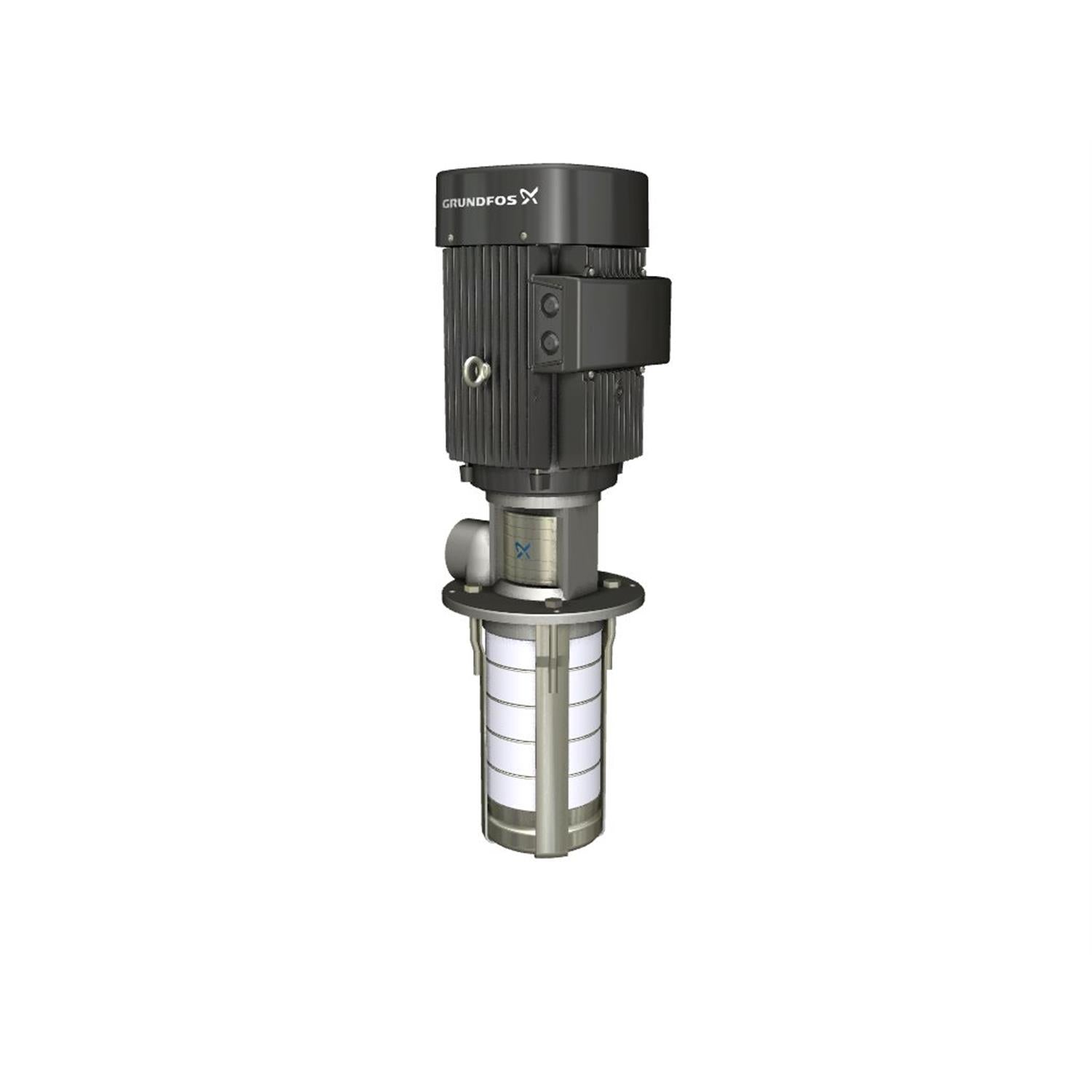

![Grundfos 99943796 - MTR 3-12/12 B-WB-I-HUUV]()
![Grundfos 99943796 - MTR 3-12/12 B-WB-I-HUUV]()
![Grundfos 99943796 - MTR 3-12/12 B-WB-I-HUUV]()
![Grundfos 99943796 - MTR 3-12/12 B-WB-I-HUUV]()
![Grundfos 99943796 - MTR 3-12/12 B-WB-I-HUUV]()
![Grundfos 99943796 - MTR 3-12/12 B-WB-I-HUUV]()
Description
Grundfos 99943796 - MTR 3-12/12 B-WB-I-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5715114509749
Material Pricing Group
32
Motor efficiency at full load 1
86.5-86.5 %
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
140 °F
Material code
I
Immersion depth
13.4 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.85-0.82
Selected liquid temperature
68 °F
Type of connection
NPT(F)
Rated voltage
3 x 208-230YY/460Y V
Flange size for motor
182TC
Pumped liquid
Water
Size of outlet connection
1 1/4 inch
Starting current
850-970 %
Connect code
WB
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
91.4-90.1 %
Built-in motor protection
NONE
Net weight
77.7 lb
Number of poles
2
Rated speed
3500-3520 rpm
Gross weight
85.6 lb
Rated power - P2
2.2 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Motor efficiency at 3/4 load
91.1-90.9 %
Rated current
8
Service factor
1.15
Cable gland entry
2xPG 16 blind plug
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
90HA
Terminal box position
6
Pump speed on which pump data are based
3452 rpm
Approvals
CE
Rated flow
15.4 US gpm
Model
A
Version
B
Motor
182TC
Chambers
12
Motor standard
NEMA
Rated head
272.3 ft
Type
90HA
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
1 1/4 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
0
Standard
NEMA
Pump version
B
