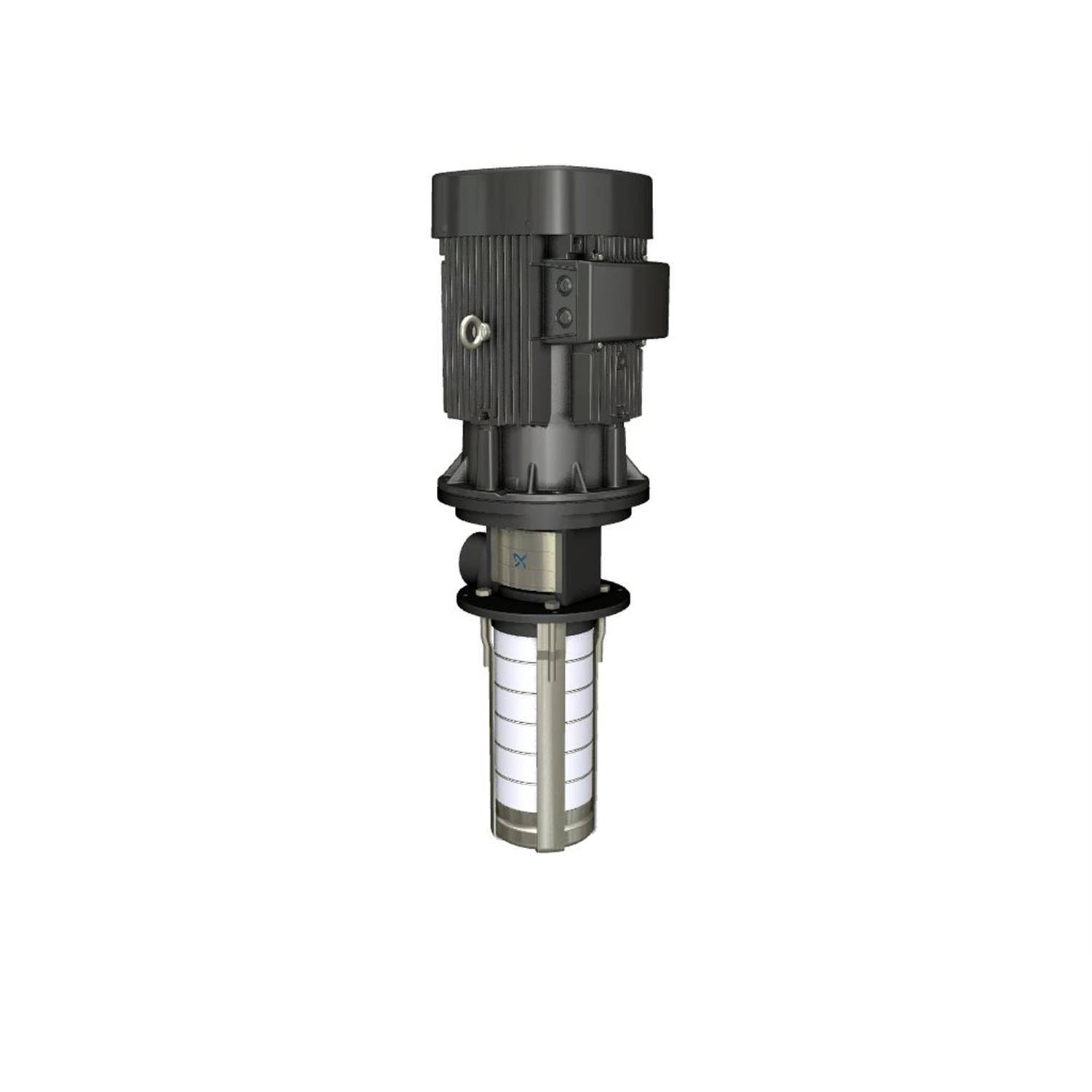

Grundfos 99617912 - MTR 20-16/6 A-W-A-HUUE

GRUNDFOSSKU: 99617912

Price:
Sale price$18,194.44
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99617912 - MTR 20-16/6 A-W-A-HUUE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713831992516
Material Pricing Group 32
Motor efficiency at full load 1 90.2-91.0 %
IE Efficiency class NEMA Premium / IE3 60Hz
Maximum ambient temperature 140 °F
Material code A
Immersion depth 31.8 in
Density 62.29 lb/ft³
Max pressure at stated temp 363 psi / 194 °F
Maximum operating pressure 25 bar
Power factor 1 0.89-0.83
Selected liquid temperature 68 °F
Type of connection G internal thread
Rated voltage 3 x 380-480D V
Flange size for motor FF300
Pumped liquid Water
Size of outlet connection 2 inch
Starting current 580-890 %
Connect code W
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Insulation class (IEC 85) F
Motor efficiency at 1/2 load 91.2-90.3 %
Built-in motor protection PTC
Net weight 251.0 lb
Number of poles 2
Rated speed 3520-3550 rpm
Gross weight 307.0 lb
Rated power - P2 11 kW
Enclosure class (IEC 34-5) 55 Dust/Jetting
Motor efficiency at 3/4 load 91.1-91.4 %
Rated current 20.8-17.2 A
Service factor 1
Cable gland entry 2xM20 + 4xM40 knock out
Minimum efficiency index, MEI ≥ 0.7
Frequency converter NONE
Motor type 160BA
Terminal box position 6
Pump speed on which pump data are based 3529 rpm
Approvals CE
Rated flow 111 US gpm
Model A
Version A
Motor FF300
Chambers 16
Motor standard IEC
Rated head 311.4 ft
Type 160BA
Curve tolerance ISO9906:2012 3B
Impellers 0
Suitable for 50/60 Hz N
Connection 2 inch
Impeller Stainless steel
Code for shaft seal HUUE
Number of reduced-diameter impellers 0
Standard IEC
Pump version A

Motor Curves

Dimensional Drawing

DWiring Diagram
