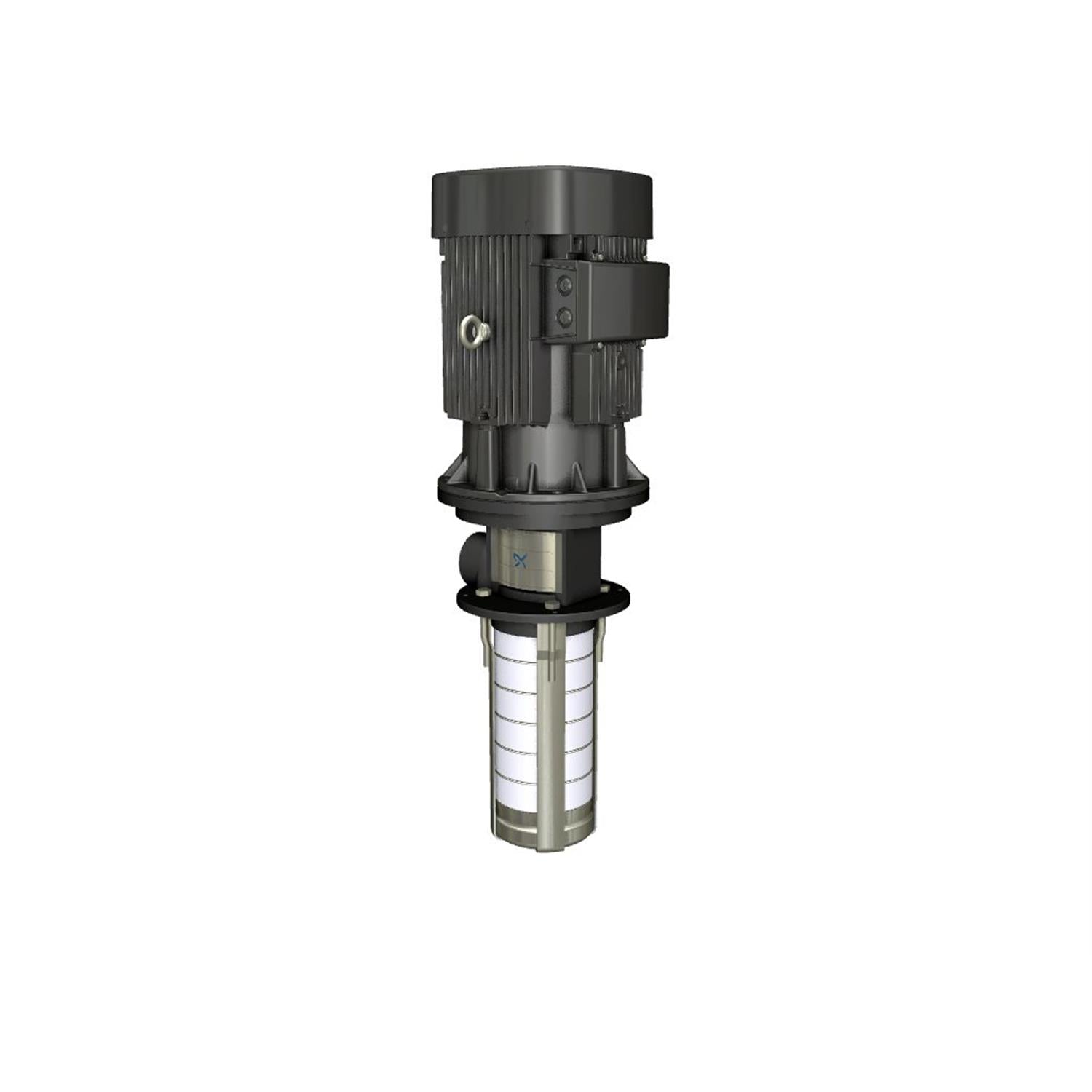

![Grundfos 99886976 - MTR 20-14/10 A-W-A-HUUV]()
![Grundfos 99886976 - MTR 20-14/10 A-W-A-HUUV]()
![Grundfos 99886976 - MTR 20-14/10 A-W-A-HUUV]()
![Grundfos 99886976 - MTR 20-14/10 A-W-A-HUUV]()
![Grundfos 99886976 - MTR 20-14/10 A-W-A-HUUV]()
![Grundfos 99886976 - MTR 20-14/10 A-W-A-HUUV]()
Description
Grundfos 99886976 - MTR 20-14/10 A-W-A-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713835736314
Material Pricing Group
32
Motor efficiency at full load 1
91.0-91.7 %
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
60 °C
Material code
A
Immersion depth
718 mm
Density
998.2 kg/m³
Max pressure at stated temp
25 bar / 90 °C
Maximum operating pressure
25 bar
Power factor 1
0.89-0.84
Selected liquid temperature
20 °C
Type of connection
G internal thread
Rated voltage
3 x 380-480D V
Flange size for motor
FF300
Pumped liquid
Water
Size of outlet connection
2 inch
Starting current
670-1100 %
Connect code
W
Liquid temperature range
-10 .. 90 °C
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
92.4-91.8 %
Built-in motor protection
PTC
Net weight
138.0 kg
Number of poles
2
Rated speed
3520-3560 rpm
Gross weight
163.0 kg
Rated power - P2
18.5 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Motor efficiency at 3/4 load
92.3-93.1 %
Rated current
34.5-28.0 A
Service factor
1
Cable gland entry
2xM20 + 4xM40 knock out
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
160BC
Terminal box position
6
Pump speed on which pump data are based
3540 rpm
Approvals
CE
Rated flow
25.3 m³/h
Model
A
Version
A
Motor
FF300
Chambers
14
Motor standard
IEC
Rated head
169.6 m
Type
160BC
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
2 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
A
