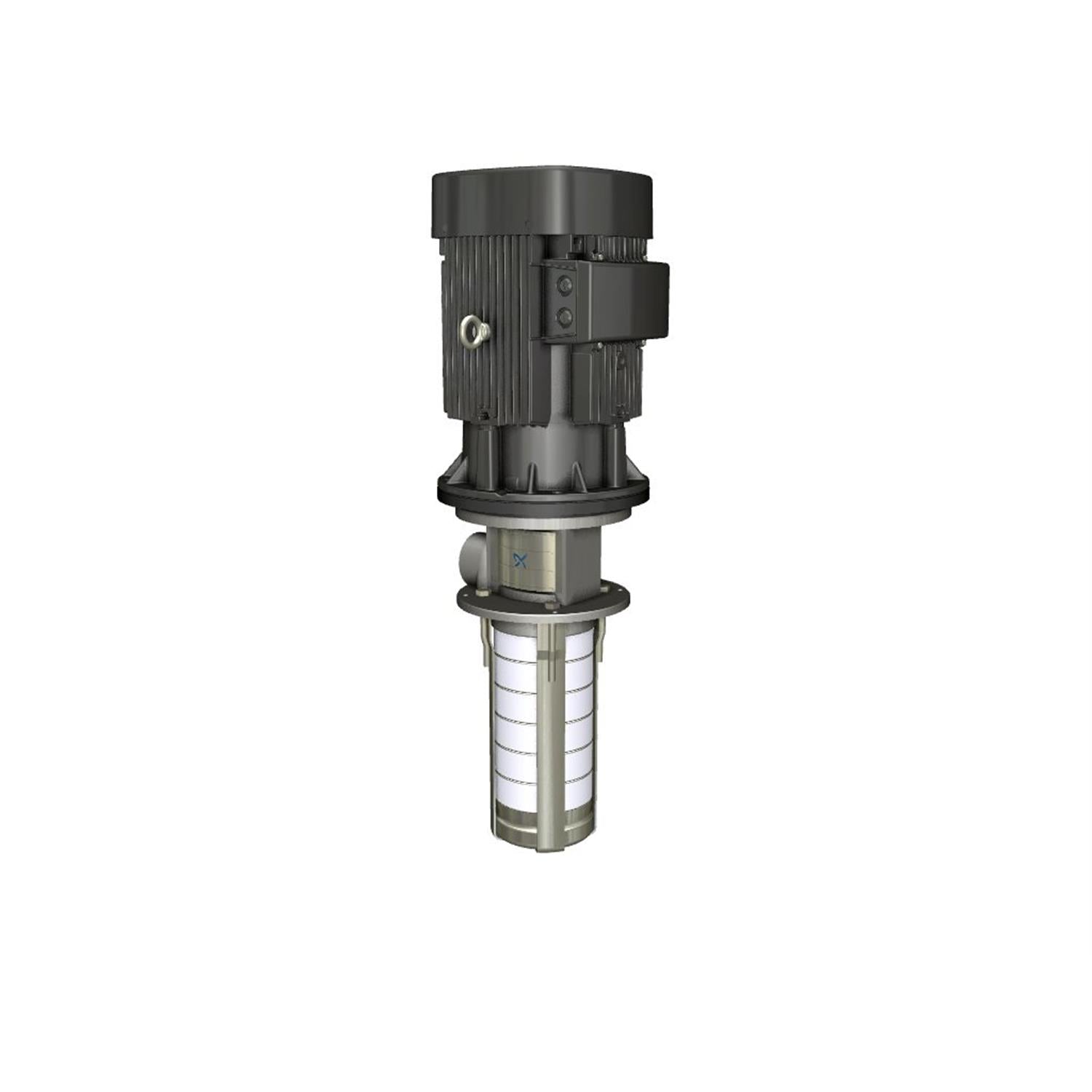

![Grundfos 99792290 - MTR 20-10/3 A-W-I-HQQV]()
![Grundfos 99792290 - MTR 20-10/3 A-W-I-HQQV]()
![Grundfos 99792290 - MTR 20-10/3 A-W-I-HQQV]()
![Grundfos 99792290 - MTR 20-10/3 A-W-I-HQQV]()
![Grundfos 99792290 - MTR 20-10/3 A-W-I-HQQV]()
![Grundfos 99792290 - MTR 20-10/3 A-W-I-HQQV]()
Description
Grundfos 99792290 - MTR 20-10/3 A-W-I-HQQV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713834359545
Material Pricing Group
32
Motor efficiency at full load 1
89.5-89.5 %
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
140 °F
Material code
I
Immersion depth
21.2 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.90-0.80
Selected liquid temperature
68 °F
Type of connection
Rp
Rated voltage
3 x 220-277D/380-480Y V
Flange size for motor
FF265
Pumped liquid
Water
Size of outlet connection
2 inch
Starting current
1020-1480 %
Connect code
W
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
IE efficiency
IE3 89
Motor efficiency at 1/2 load
89.9-87.9 %
Built-in motor protection
PTC
Net weight
147.0 lb
Number of poles
2
Rated speed
3510-3550 rpm
Gross weight
193.0 lb
Rated power - P2
5.5 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Motor efficiency at 3/4 load
90.3-89.9 %
Rated current
18
Cable gland entry
4xM25 knock out
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
132DA
Terminal box position
6
Pump speed on which pump data are based
3526 rpm
Approvals
CE
Rated flow
111 US gpm
Model
A
Version
A
Motor
FF265
Chambers
10
Motor standard
IEC
Rated head
153.9 ft
Type
132DA
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
2 inch
Impeller
Stainless steel
Code for shaft seal
HQQV
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
A
