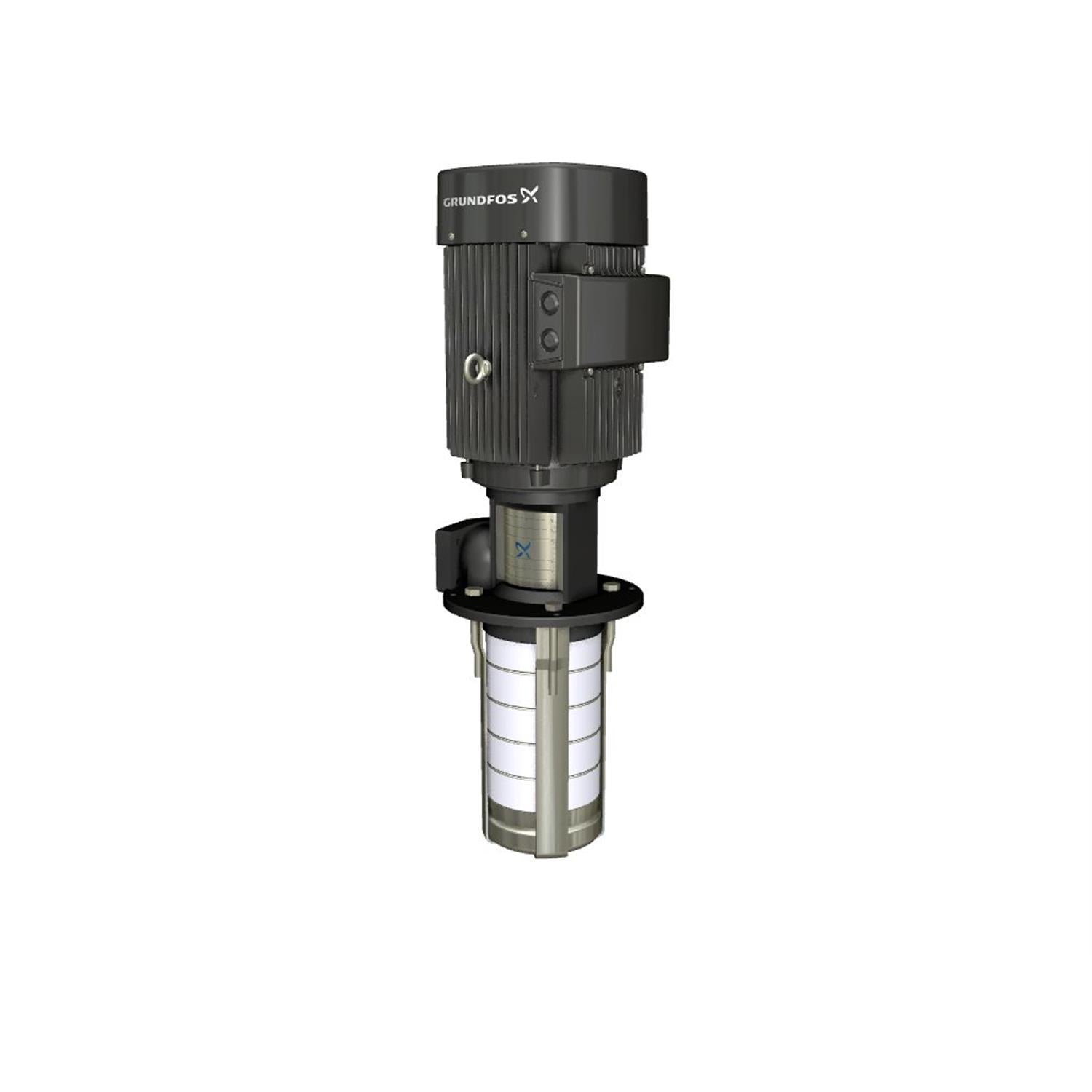

![Grundfos 99560047 - MTR 15-5/2 D-M-A-AQQV]()
![Grundfos 99560047 - MTR 15-5/2 D-M-A-AQQV]()
![Grundfos 99560047 - MTR 15-5/2 D-M-A-AQQV]()
![Grundfos 99560047 - MTR 15-5/2 D-M-A-AQQV]()
![Grundfos 99560047 - MTR 15-5/2 D-M-A-AQQV]()
![Grundfos 99560047 - MTR 15-5/2 D-M-A-AQQV]()
Description
Grundfos 99560047 - MTR 15-5/2 D-M-A-AQQV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713831043751
Material Pricing Group
32
Motor efficiency at full load 1
87.5-88.5 %
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
140 °F
Material code
A
Immersion depth
12.3 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.91-0.84
Selected liquid temperature
68 °F
Type of connection
Square / Rp
Rated voltage
3 x 220-277D/380-480Y V
Flange size for motor
FT130
Pumped liquid
Water
Size of outlet connection
2 inch
Starting current
860-1100 %
Connect code
M
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
88.9-85.4 %
Built-in motor protection
PTC
Net weight
91.0 lb
Number of poles
2
Rated speed
3480-3530 rpm
Gross weight
98.7 lb
Rated power - P2
3 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Motor efficiency at 3/4 load
88.0-87.8 %
Rated current
10
Service factor
1
Cable gland entry
4xM20 knock out
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
100DA
Terminal box position
6
Pump speed on which pump data are based
3514 rpm
Approvals
CE
Rated flow
90.3 US gpm
Model
A
Version
D
Motor
FT130
Chambers
5
Motor standard
IEC
Rated head
107 ft
Type
100DA
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
2 inch
Impeller
Stainless steel
Code for shaft seal
AQQV
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
D
