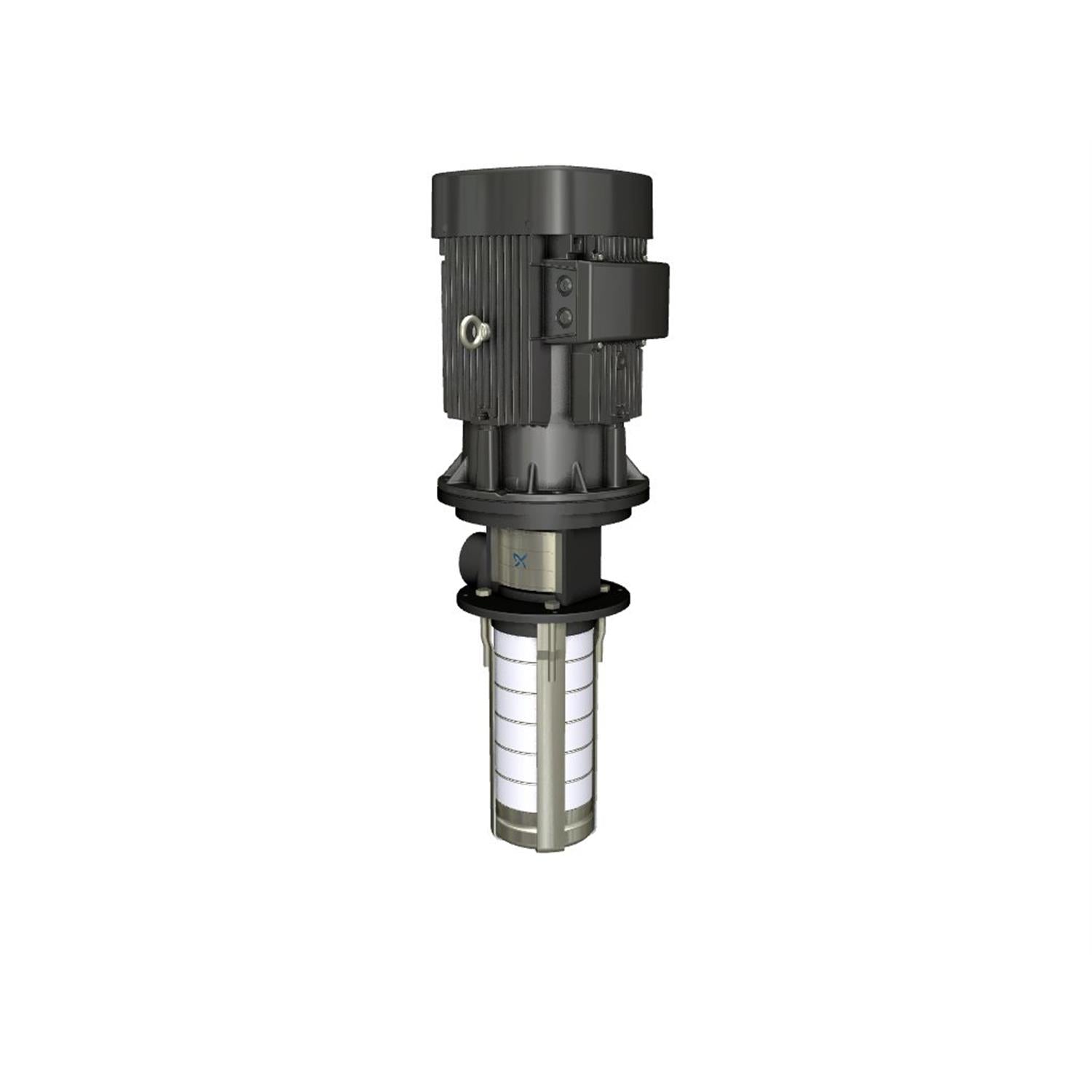

![Grundfos 99565805 - MTR 15-12/7 A-W-A-HUUV]()
![Grundfos 99565805 - MTR 15-12/7 A-W-A-HUUV]()
![Grundfos 99565805 - MTR 15-12/7 A-W-A-HUUV]()
![Grundfos 99565805 - MTR 15-12/7 A-W-A-HUUV]()
![Grundfos 99565805 - MTR 15-12/7 A-W-A-HUUV]()
![Grundfos 99565805 - MTR 15-12/7 A-W-A-HUUV]()
Description
Grundfos 99565805 - MTR 15-12/7 A-W-A-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713831143093
Material Pricing Group
32
Motor efficiency at full load 1
89.2-89.2 %
IE Efficiency class
IE3
Maximum ambient temperature
140 °F
Material code
A
Immersion depth
24.7 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.87-0.82
Selected liquid temperature
68 °F
Type of connection
G internal thread
Rated voltage
3 x 380-415D V
Flange size for motor
FF265
Pumped liquid
Water
Size of outlet connection
2 inch
Starting current
1080-1180 %
Connect code
W
Liquid temperature range
14 .. 194 °F
Mains frequency
50 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
89.6-88.4 %
Built-in motor protection
PTC
Net weight
145.0 lb
Number of poles
2
Rated speed
2920-2940 rpm
Gross weight
195.0 lb
Rated power - P2
5.5 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Motor efficiency at 3/4 load
90.0-89.8 %
Rated current
0.4583333333333333
Cable gland entry
4xM25 knock out
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
132DA
Terminal box position
6
Pump speed on which pump data are based
2919 rpm
Approvals
CE
Rated flow
74.8 US gpm
Model
A
Version
A
Motor
FF265
Chambers
12
Motor standard
IEC
Rated head
253.6 ft
Type
132DA
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
2 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
A
