Grundfos 96516561 - MTR 15-12/12 A-WB-A-HUUV | Multistage | Immersible | SelfPriming | Centrifugal | Vertical Installation | Vertical

Save $5,969.77
GRUNDFOSSKU: 96516561

Price:
Sale price$8,346.23 Regular price$14,316.00
Build to order – stocked components,typically available in 20 business days
or Call for most up to date lead times. (781) 281-8905

Description

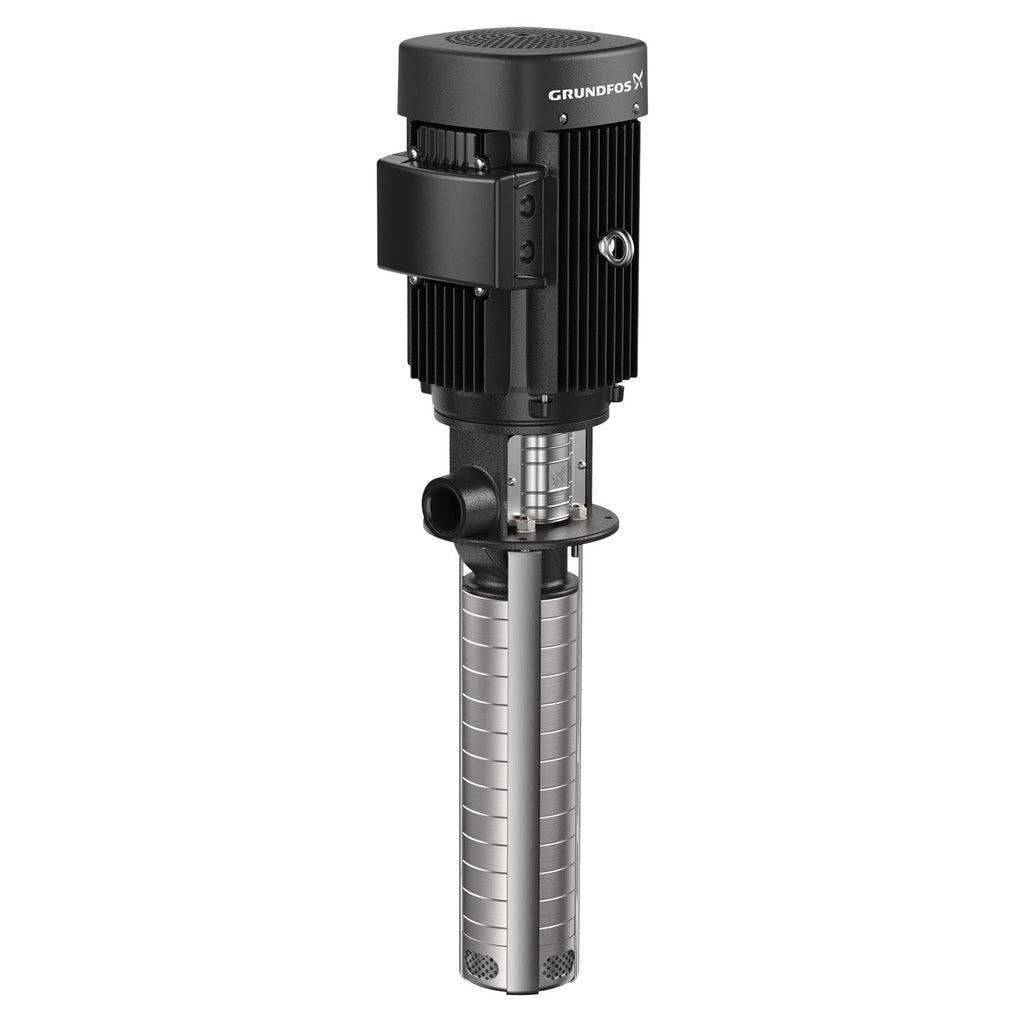

MTR 15-12/12 A-WB-A-HUUV Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc. The pump head and base are in cast iron – all other wetted parts are in stainless steel. The pump has the following characteristics: Dimensions according to DIN 5440.
Impellers, intermediate chambers and spline shaft are made of Stainless steel.
Mechanical shaft seal according to EN 12756.
Power transmission via sintered metal split coupling. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

Approvals CE,EAC,UKCA,RCM,cURus/cCSAus,Morocco
Approvals for motor CE,CC
Built-in motor protection PTC
Chambers 12
Code for shaft seal HUUV
Connect code WB
Connection NPT(F)
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 284TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 352.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:MTR 15-12/12 A-WB-A-HUUV
IE Efficiency class NEMA Premium / IE3 60Hz
Immersion depth 24.7 in
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 194°F
Liquid temperature range 14 .. 194 °F
Material code A
Maximum ambient temperature 104 °F
Maximum operating pressure 362.59 psi
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 284TC
Motor efficiency at 1/2 load 93.0-92.5 %
Motor efficiency at 3/4 load 91.5-92.5 %
Motor efficiency at full load 1 91.0-91.7 %
Motor standard NEMA
Motor type 160AC
n rpm F
Net weight 296.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 25 HP
Phase 3
Power factor 1 0.92-0.91
Pump version A
Rated current 62,0-56,0/28,0 A
Rated flow 90.3 US gpm
Rated head 644.4 ft
Rated power - P2 25 HP
Rated speed 3490-3530 rpm
Rated voltage 3 x 208-230DD/460D V
Sales region Namreg
Service factor 1.15
Shaft Product name:MTR 15-12/12 A-WB-A-HUUV
Shaft seal HUUV
Standard NEMA
Starting current 550-750 %
Suitable for 5/6 Hz N
Terminal box position 6
Type 160AC
Type of connection NPT(F)
Version A

Motor Curves

Dimensional Drawing

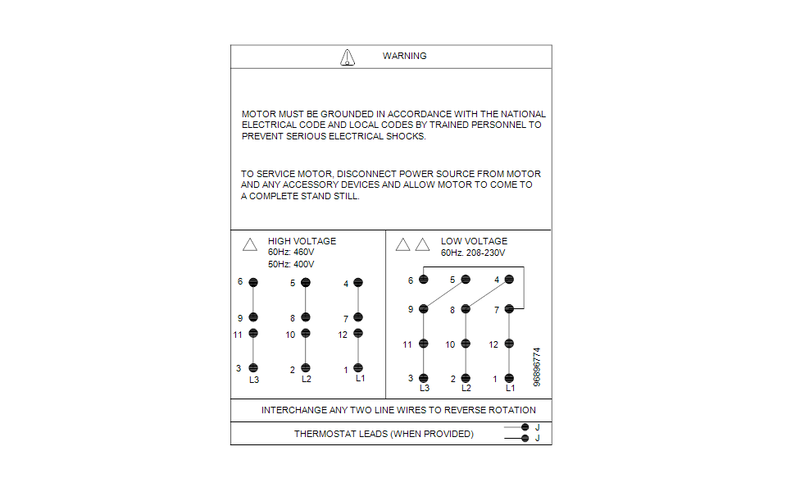

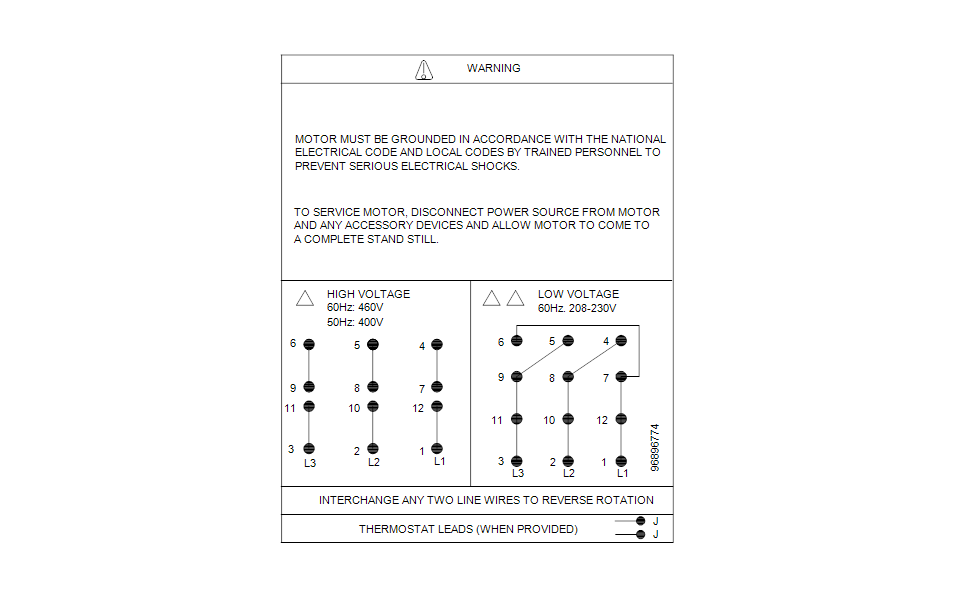

DWiring Diagram
